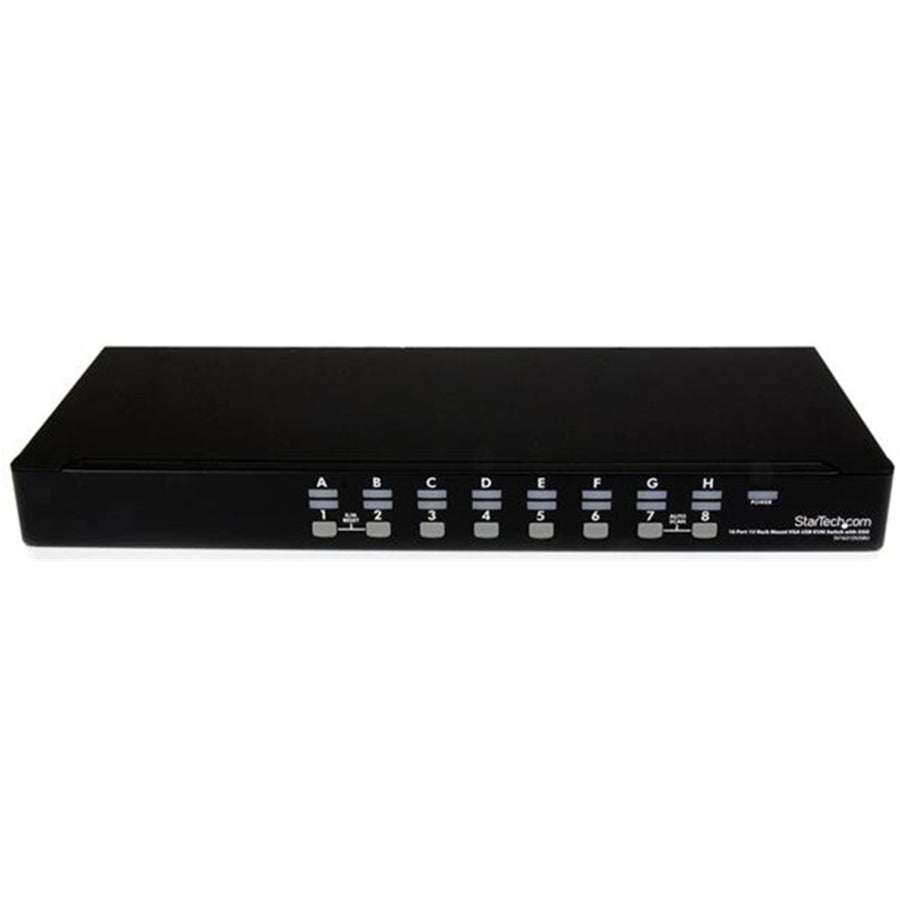

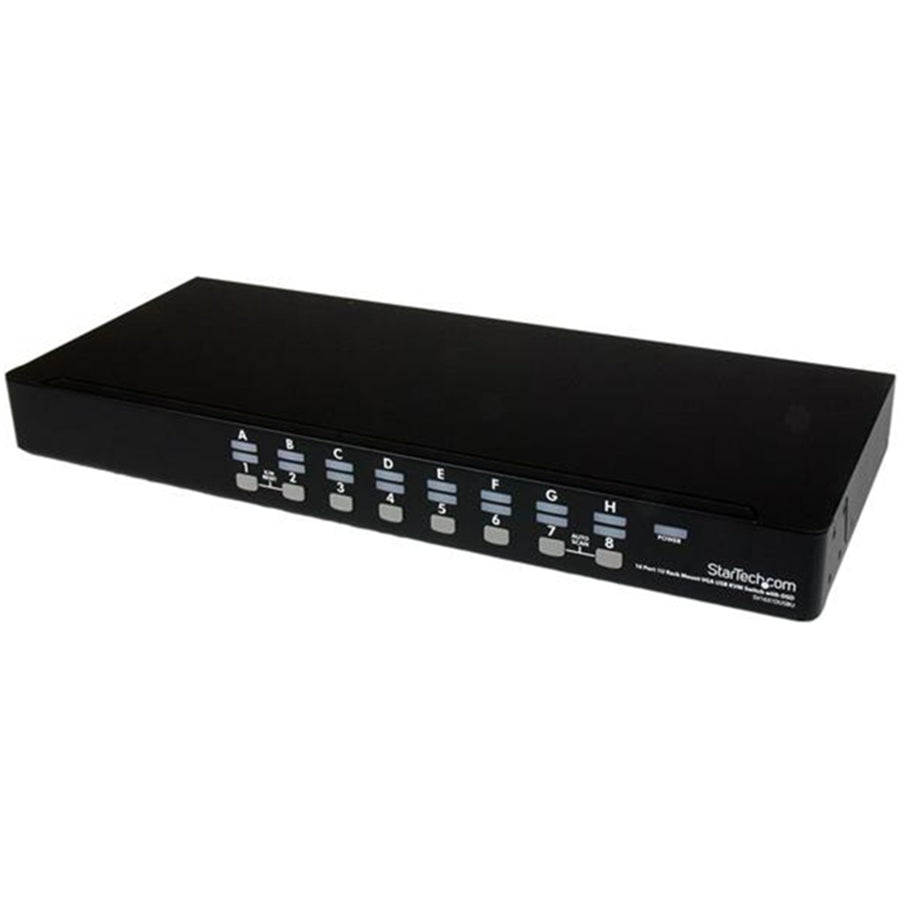

StarTech.com SV1631DUSBUK 16 Port 1U Rackmount USB KVM Switch Kit

SKU: SV1631DUSBUK ● In Stock
$1,248.70
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Features

StarTech.com SV1631DUSBUK 16 Port 1U Rackmount USB KVM Switch Kit

Specifications

Technical Specifications

Manufacturer part number SV1631DUSBUK
Audio No
Cables Included Yes
Daisy-Chain Yes
KVM Ports 16
Number of Monitors Supported 1
PC Interface USB
PC Video Type VGA
Rack-Mountable Yes
Hot-Key Selection Yes
IP Control No
Maximum Analog Resolutions 920 x 1440 @ 60Hz (1920 x 1200 @ 60Hz - Wide Screen)
Maximum Cascaded Computers 136
Maximum Number of Users 1
On-Screen Display Yes
Port Selection Support Push Button, Hotkeys, and OSD (On Screen Display)
Wide Screen Supported Yes
Console Interface(s) 1 - VGA (15 pin, High Density D-Sub) Female 2 - USB Type-A (4 pin) USB 2.0 Female

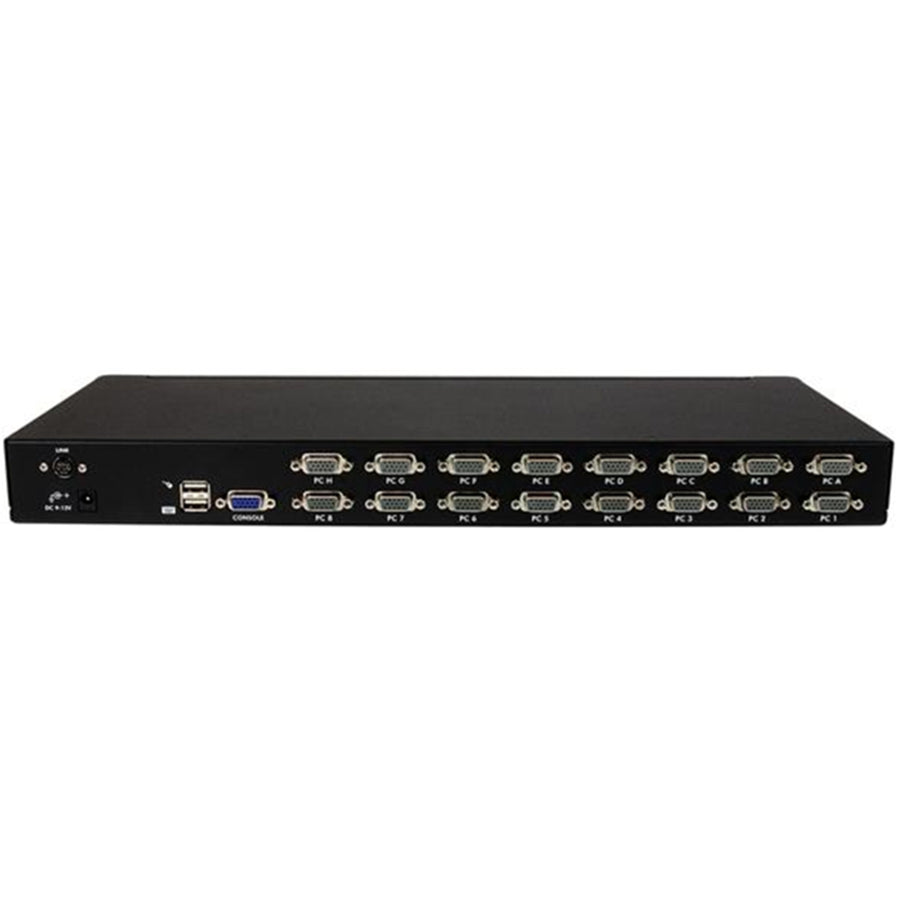

Host Connectors 16 - VGA (15 pin, High Density D-Sub) Female
OS Compatibility OS independent; No software or drivers required
LED Indicators 1 - Green - Power 16 - Green - PC Online 16 - Red - PC Selected
Center Tip Polarity Positive
Input Voltage 110V-240V AC
Output Current 1A
Output Voltage 9 DC
Power Consumption (In Watts) 9
Power Source AC Adapter Included
Humidity 0~80% RH
Operating Temperature 5°C to 40°C (41°F to 104°F)
Storage Temperature 20°C to 60°C (-4°F to 140°F)
Color Black
Enclosure Type Steel
Product Depth 7.5 in [190 mm]
Product Height 1.8 in [45 mm]
Product Weight 84.4 oz [2390 g]
Product Width 17.3 in [440 mm]

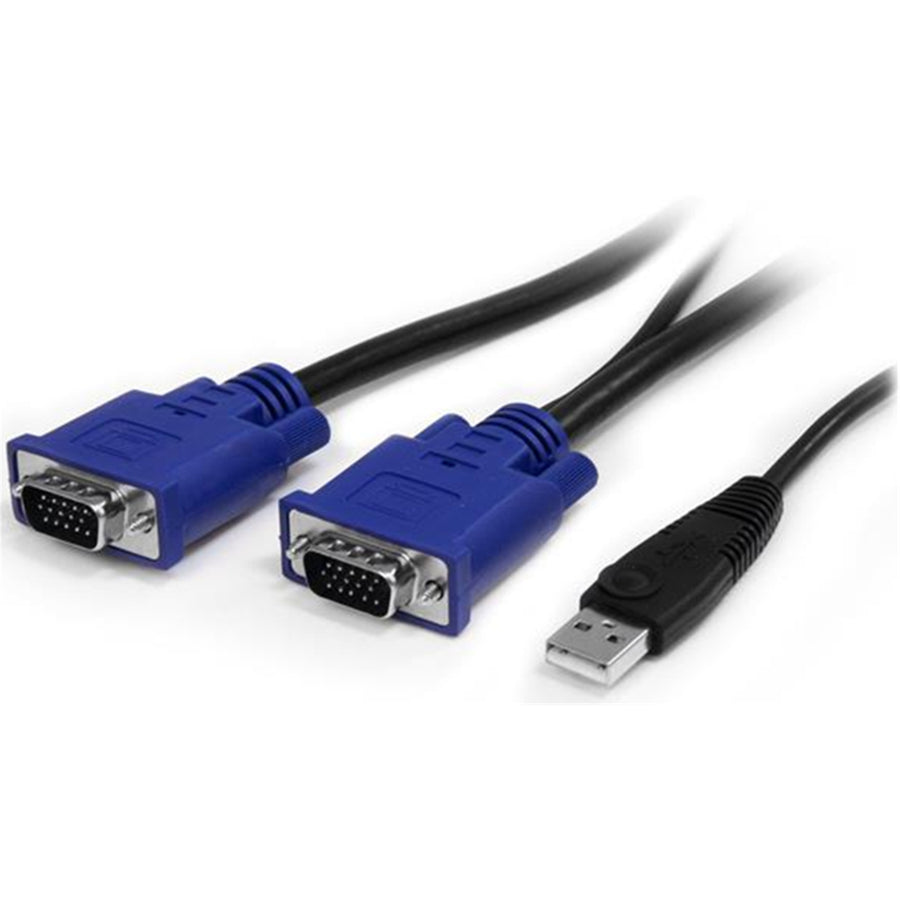

Included in Package 1 - 16-port USB KVM switch 2 - mounting brackets 16 - 6ft 2-in-1 USB VGA KVM cables 1 - screw kit 4 - foot pads 1 - universal power adapter (NA/EU/UK/AU) 1 - instruction manual
Product type KVM Switch/Extenders
Weight 6.241 kg
Warranty 24 months
