StarTech.com TB33A1C - Controller Adapter Thunderbolt 3 to USB
You May Also Like

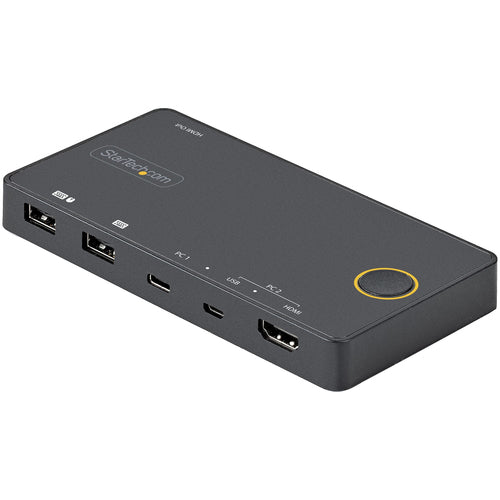

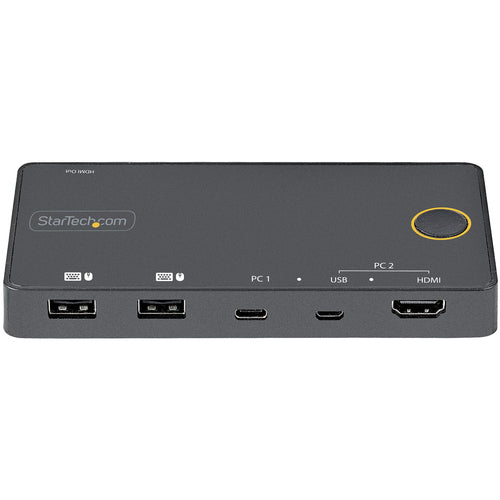

StarTech.com SV221HUC4K - 2 Port USB-A/HDMI / USB-C KVM KVM Switch

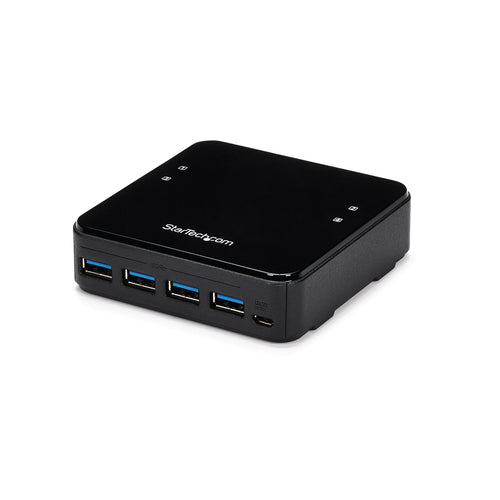

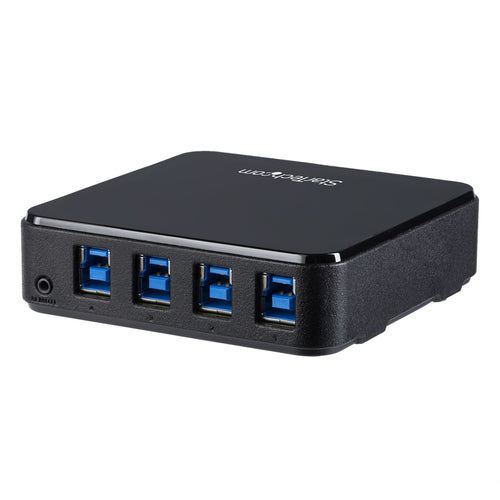

StarTech.com HBS304A24A - Switch - 4X4 USB 3.0 Peripheral Sharing
REXTRON MAAG-112 - 2 Port HDMI USB KVM Switch w/ Audio. USB Console. Full HD (1920x1080). 7.1 Channel
REXTRON MAAG-114 - 4 Port HDMI USB KVM Switch w/ Audio. USB Console. Full HD (1920x1080). 7.1 Channel
Features
This Thunderbolt 3 USB 3.1 multi-channel hub controller delivers maximum USB performance, adding four high-speed independent USB ports to your Thunderbolt 3 laptop. It provides three dedicated USB controllers and up to 20Gbps of aggregated bandwidth for USB devices, ideal for connecting bandwidth-demanding devices such as 3D scanners.
The Thunderbolt 3 hub lets you access multiple USB devices at greater bandwidth and improved performance, and extend the life of your USB devices.
Maximize USB Performance
The high-speed USB hub provides two 10Gbps ports for connecting high-performance devices such as storage arrays, 3D scanners, audio-video devices, and external SSDs, with dedicated bandwidth for faster read/write access. The second Thunderbolt 3 port can be used to connect an additional USB-C device with up to 10G bandwidth.
Dedicated Independent Port Bandwidth
When only one USB port is in use, the full 10Gbps bandwidth is available to the device. Two additional USB-A ports provide 5Gbps of bandwidth to each device simultaneously, ideal for portable hard drives or flash drives. For added convenience, the front USB-A port supports both data and charging of your mobile device.
Extend Your Workstation
The Thunderbolt 3 hub features a second Thunderbolt 3 port to connect an additional display to your laptop (a USB-C video adapter may be required). The port can also be used to connect additional Thunderbolt devices, daisy-chaining up to six devices.
Specifications
Technical Specifications
| HARDWARE | Bus Type Thunderbolt 3USB 3.1 Gen 2USB 3.1 Gen 1Chipset ID Intel - Alpine Ridge JHL6540ASMedia - ASM1042AASMedia - ASM1142Fast-Charge Port(s) NoIndustry Standards Thunderbolt 3USB Battery Charging Specification Rev. 1.2Universal Serial Bus 3.1 Specifications Revision 1.0Universal Serial Bus Specification Revision 2.0Extensible Host Controller Interface Specification revision 1.1USB Attached SCSI Protocol Revision 1.0Ports 4USB-C Device Port(s) YesUSB-C Host Connection No |
|---|---|
| PERFORMANCE | Maximum Data Transfer Rate Aggregate Bandwidth 20Gbit/sMTBF 1,936,146 hoursType and Rate USB 3.1 Gen 2 - 10 Gbit/sUSB 3.1 Gen 1 - 5 Gbit/sUASP Support Yes |
| CONNECTOR(S) | Connector Type(s) 2 - Thunderbolt™ 3 USB-C (24-pin) (40Gbps) Female2 - USB Type-A (9 pin) USB 3.0 Female1 - USB 3.1 USB Type-A (9 pin, Gen 2, 10 Gbps) Female1 - USB Type-C (24 pin) USB 3.1 (10Gbps) Female |
| SOFTWARE | OS Compatibility Windows® 7, 8, 8.1, 10macOS 10.12 - 10.3 |
| SPECIAL NOTES / REQUIREMENTS | Note When connecting a display to the Thunderbolt 3 USB-C port, a USB-C video adapter might be required depending on the input of your display.Secondary Thunderbolt 3 port can also be used to connect USB 3.1 (10Gbps) USB-Type C devices, such as USB 3.1 Storage Enclosure or Hubs. Backwards compatible with USB 3.1 Gen 1 (USB 3.0), and USB 2.0.USB 3.1 Gen 1 is also known as USB 3.0; this connectivity standard offers speeds up to 5Gbps. USB 3.1 Gen 2 offers speeds up to 10Gbps.System and Cable Requirements Thunderbolt 3 equipped computer with a Thunderbolt 3 port.Your laptop's Thunderbolt 3 port must support USB Power Delivery 2.0 in order to power and charge your laptop. |
| POWER | Center Tip Polarity PositiveInput Current 1.8 AInput Voltage 100 - 240 ACOutput Current 3.25 AOutput Voltage 20V DCPlug Type NPower Consumption (In Watts) 65WPower Delivery 15WPower Source AC Adapter Included |
| ENVIRONMENTAL | Humidity 90% RHOperating Temperature 0°C to 40°C (32°F to 104°F)Storage Temperature -20°C to 70°C (-4°F to 158°F) |
| PHYSICAL CHARACTERISTICS | Cable Length 19.7 in [50 cm]Color Silver & BlackEnclosure Type AluminumForm Factor DesktopProduct Height 0.9 in [2.4 cm]Product Length 5.8 in [14.8 cm]Product Width 2.9 in [74 mm]Weight of Product 7.1 oz [200 g] |
| PACKAGING INFORMATION | Package Height 4.6 in [11.6 cm]Package Length 11.2 in [28.5 cm]Package Width 7.3 in [18.5 cm]Shipping (Package) Weight 3.4 lb [1.6 kg] |
| WHAT'S IN THE BOX | Included in Package 1 - Thunderbolt 3 controller1 - Thunderbolt 3 Cable (50 cm)1 - universal power adapter (NA/JP, UK, EU, ANZ)1 - quick-start guide |
| Brand | StarTech.com |
|---|---|
| Product Type | PC Peripherals > KVM Switches & Cables |
| Weight | 0.703 kg |
| Warranty |
|---|
