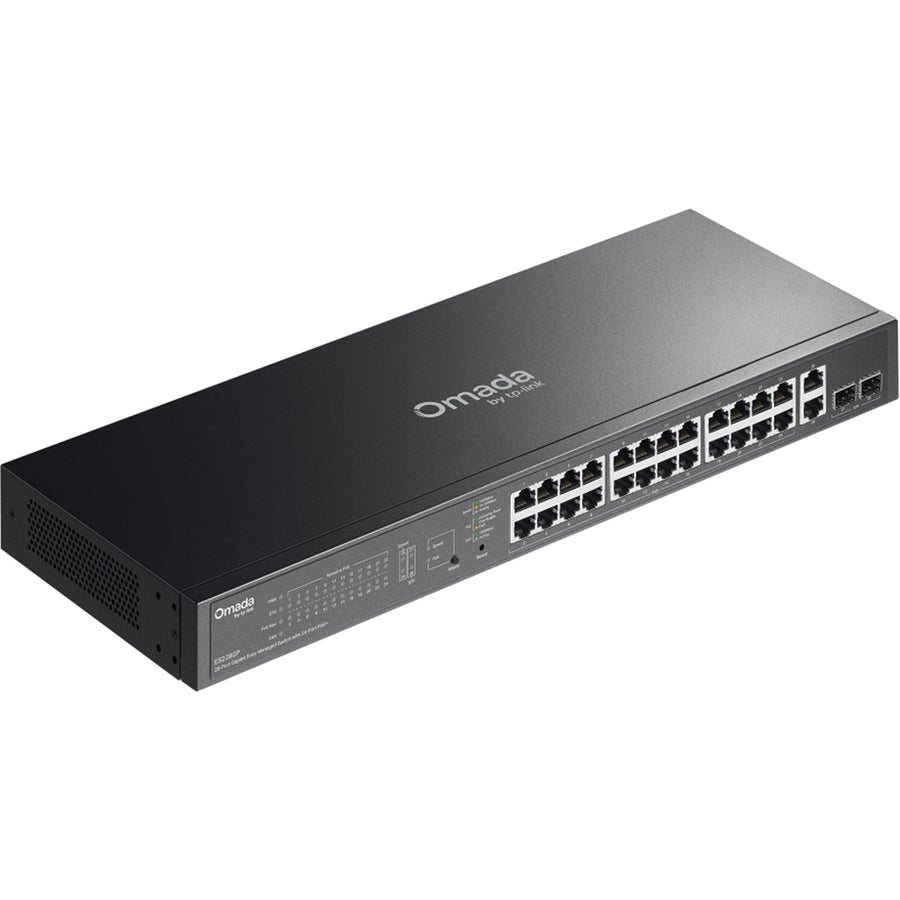

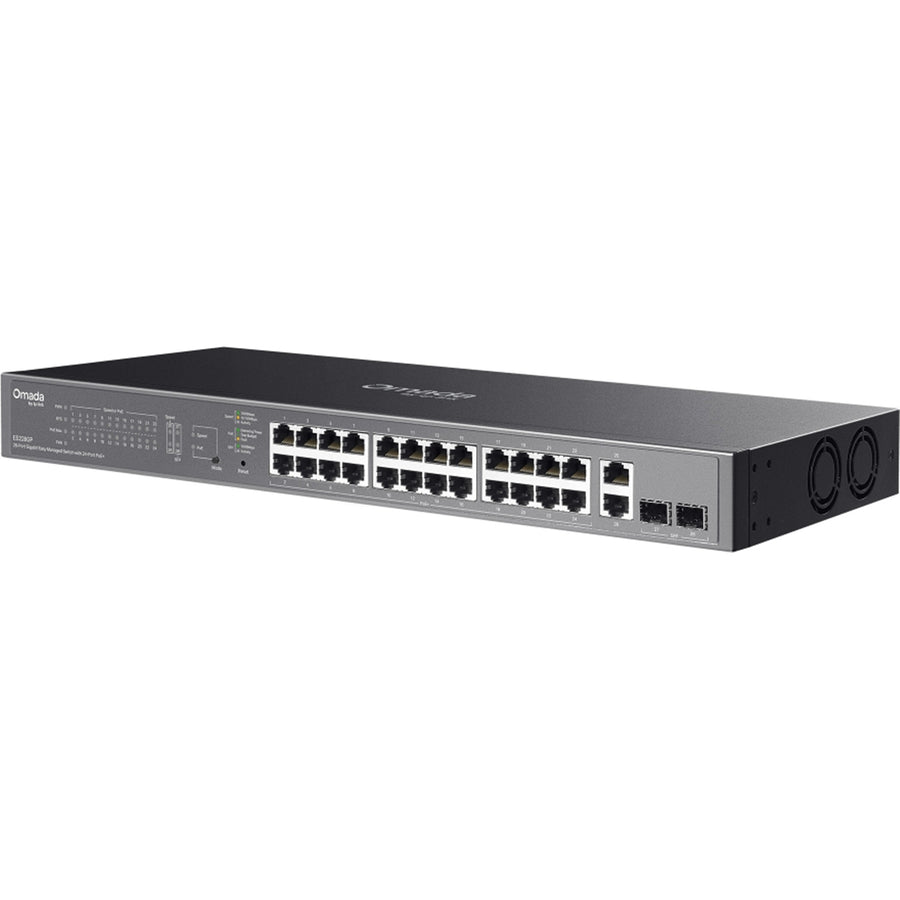

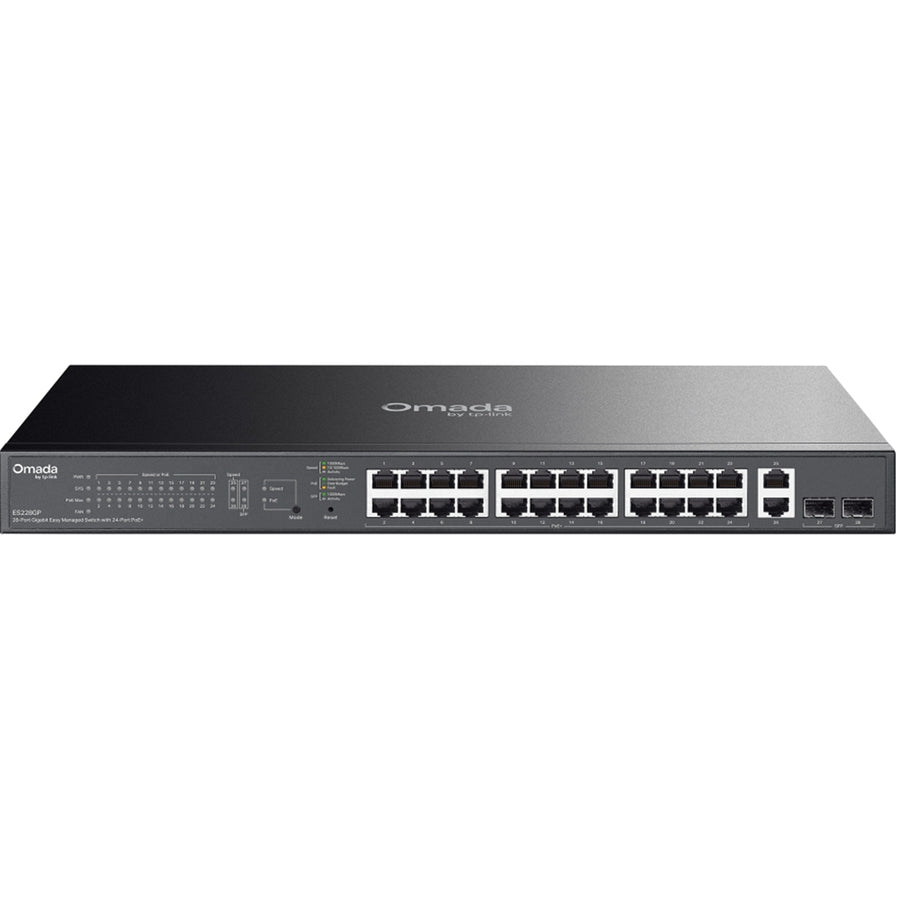

TP-Link Omada ES228GP 28-Port Gigabit Easy Managed PoE Switch (250W) - SFP x2, 1GbE PoE+ x26
You May Also Like
CTC Union Compact size, Non-managed 5-port 10/100-TX Copper Switch, minus 10 C to 60 C
Netonix WS-12-250-AC WS-12-250-AC Managed PoE Switch
EDIMAX GP-101ET - IEEE 802.3at Gigabit PoE+ Extender Power & Data to 100m PoE short circuit protection.
TL-IES206GPP - TP-Link IES206GPP Omada 6-Port Gigabit Industrial Easy Managed Switch with 3-Port PoE+ and 1-Port PoE++
Features
ES228GP - Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+
- 26x 10/100/1000Mbps RJ45 ports (24x 802.3af/at-compliant PoE+)
- 2x Gigabit SFP Slots
- 250W PoE Budget, with up to 30W for each PoE port*
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app[1]
- Up to 820ft PoE**, Remote Camera Reboot[1], QoS, and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Durable metal casing and rack mounting design
Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+ - ES228GP
- 28x Gigabit Ports (24x PoE+, 2x RJ45, 2x SFP)
- 250W Total PoE Budget*
- Easy Centralized Management
- Up to 820ft PoE Transmission**
- Remote Camera Reboot[1]
- Traffic Separation
- Traffic Prioritization
- Automatic Loop Prevention
Omada Central Essentials - A Free and Easy Cloud-Based Network Management
Omada Central Essentials is a free, easy-to-use version of the Omada Central.
It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses. Learn More >
- Lifetime Free Cloud Without Additional Fees
- Manage and Monitor Anytime via App or Web
- Unlimited Management Scale for Multiple Sites
- Comprehensive Managed Portfolio
- Super-Easy Setup with Automatic Device Identification and ZTP
- Easy-to-Use Networking for Surveillance Including Remote Camera Reboot
- Free Video Monitoring Including Third-Party Camera Management
- Topology, Site Map, and Troubleshooting Tools for Efficient Maintenance
Abundant Functions for Reliable Surveillance Networking
- Transmission Distance up to 820ft (250 m)**
- Priority Video Quality Guaranteed
- Secure Traffic Separation via Port Isolation
- Remote Camera Reboot[1]
Multiple Application Scenarios
Surveillance
Works with IP Cameras
Wi-Fi Coverage
Works with Access Points
Wired Connections
Works with Non-PoE Devices such as PCs and Printers
[1] These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of Omada Central (Omada Central Standard or Omada Central Essentials).
*PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary due to client limitations and environmental factors.
**When Extend Mode is enabled, the speed of ports that support 820ft (250m) PoE transmission will be downgraded to 10 Mbps. Actual transmission distance may vary depending on the quality of the cables. Speciffcations are subject to change without notice. All brands and product names are trademarks or registered trademarks of their respective holders. © 2025 TP-Link
Specifications
Technical Specifications
| Interface | 26× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+)2× Gigabit SFP SlotsAuto-Negotiation/Auto MDI/MDIX |
|---|---|
| Fan Quantity | 2 |
| Installation | Rackmount |
| Physical Security Lock | Yes |
| Power Supply | 100-240V AC, 50/60Hz 4.0A |
| PoE Ports (RJ45) | Standard: 802.3af PoE and 802.3at PoE+ compliantPoE Ports: 24 portsPoE Budget: 250W available for all PoE+ ports, 30W max per portFast PoE & Perpetual PoEPoE Auto Recovery‡Up to 250m PoE transmission distance** |
| Dimensions ( W x D x H ) | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
| Surge Protection | ±6kV |
| Switching Capacity | 56 Gbps |
| Packet Forwarding Rate | 41.67 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB |
| Quality of Service | Port-based/802.1p/DSCP QoS8 Priority QueuesPriority Schedule Mode- WRR (Weighted Round Robin)Queue Weight ConfigBandwidth Control- Port-Based Rating LimitStorm Control- Multiple Control Modes (kbps/pps)- Broadcast/Multicast/Unknown-Unicast Control |
| L2 Features | Static Link AggregationLoop Prevention / Loopback DetectionFlow Control- 802.3x Flow ControlMirroring- Port Mirroring- One-to-One- Many-to-One- Ingress/Egress/BothPort Statistics- Port Mirror Status- Traffic Statistics802.1ab LLDP |
| L2 Multicast | IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave |
| VLAN | MTU VLANPort-Based VLAN802.1Q Tag VLAN- Max 32 VLAN Groups- 4K VID |
| Transmission Method | Store-And-Forward |
| Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | Omada Cloud-Based ControllerOmada Hardware ControllerOmada Software Controller |
| Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
| Management Features | Web-based GUIDHCP ClientCable DiagnosticsAutomatic Device Discovery[1]Batch Configuration[1]Batch Firmware Upgrading[1]Unified Configuration[1] |
| Certification | FCC, CE, RoHS |
| Package Content | ES228GPPower CordMounting BracketsRubber FeetScrewsInstallation Guide |
| Environment | Operating Temperature: -5℃~45℃ (23℉~113℉)Storage Temperature: -40℃~70℃ (-40℉~158℉)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing |
| Note | [1] These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of Omada Central (Omada Central Standard or Omada Central Essentials).*PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary due to client limitations and environmental factors.**When Extend Mode is enabled, the speed of ports that support 820ft (250m) PoE transmission will be downgraded to 10 Mbps. Actual transmission distance may vary depending on the quality of the cables. Speciffcations are subject to change without notice. All brands and product names are trademarks or registered trademarks of their respective holders. © 2025 TP-Link |
| Brand | TP-Link |
|---|---|
| Product Type | Networking > Switches |
| Weight | 0.5 kg |
| Warranty |
|---|
