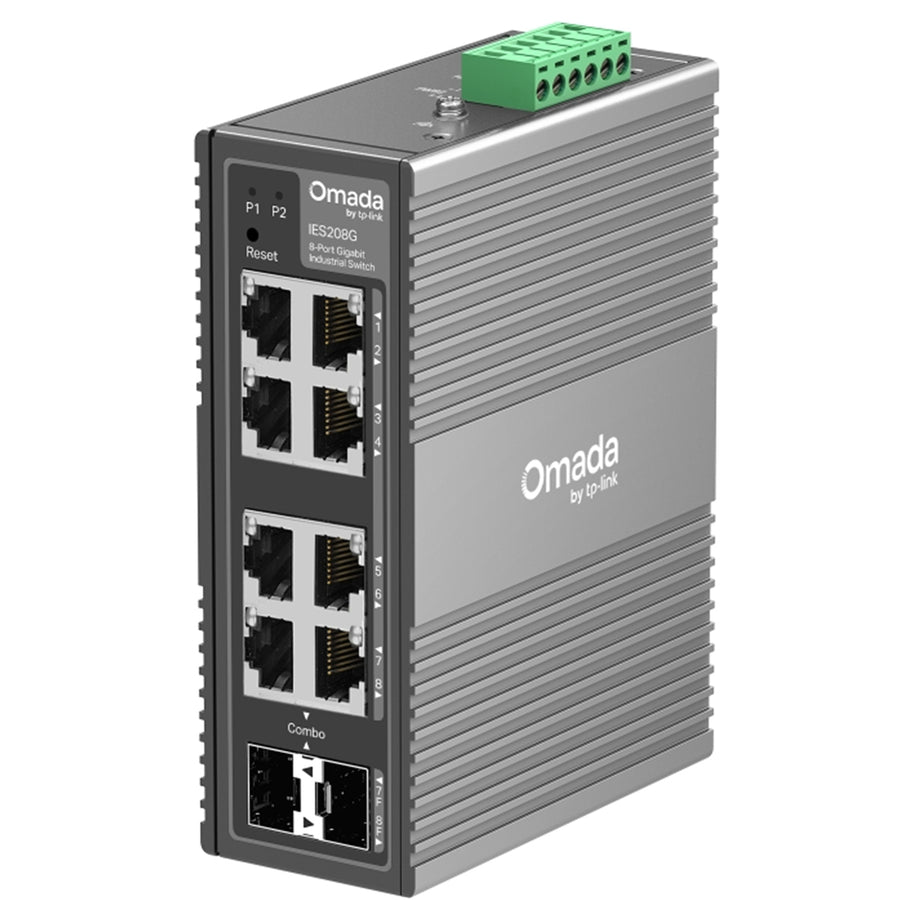

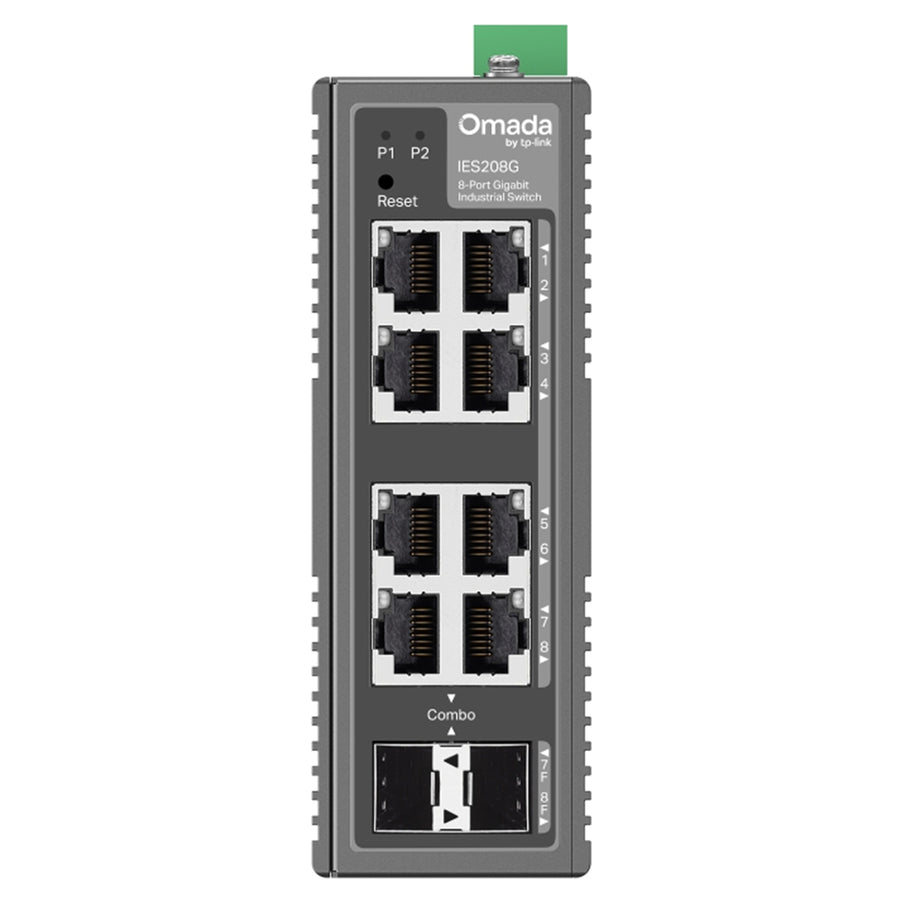

TP-Link Omada IES208G 8-Port Gigabit Industrial Easy Managed Switch
TP-Link Omada IES208G 8-Port Gigabit Industrial Easy Managed Switch
TP-Link

TP-Link Omada IES208G 8-Port Gigabit Industrial Easy Managed Switch

SKU: TL-IES208G ● In Stock
$365.21
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Ubiquiti

Ubiquiti Professional-grade 32-port Layer 3

$6,013.90
inc GST ▲ +GST
CTC

CTC Union Compact size, Non-managed 5-port 10/100-TX Copper Switch, minus 10 C to 60 C

Switching100M
$110.63
inc GST ▲ +GST
Netonix

Netonix WS-12-250-AC WS-12-250-AC Managed PoE Switch

SwitchingPoE
$780.24$828.74
inc GST ▲ +GST
EDIMAX

EDIMAX GP-101ET - IEEE 802.3at Gigabit PoE+ Extender Power & Data to 100m PoE short circuit protection.

$77.38
inc GST ▲ +GST
TP-Link

TL-IES206GPP - TP-Link IES206GPP Omada 6-Port Gigabit Industrial Easy Managed Switch with 3-Port PoE+ and 1-Port PoE++

Access PointWirelessPoE++
$460.86$483.48
inc GST ▲ +GST

Features

Omada 8-Port Gigabit Industrial Easy Managed Switch

- 8× Gigabit Ports (6× RJ45, 2× RJ45/SFP Combo)
- Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input
- Abundant Features: VLAN, QoS, and STP/RSTP
- Centralized Cloud Management via the Web or Omada App†
- Durable IP40 Aluminum Casing and DIN-rail / Wall-mount Design

Specifications

Technical Specifications

Interface - 6× 10/100/1000 Mbps RJ45 Ports- 2× Gigabit SFP/RJ45 Combo Slots- Auto-Negotiation/Auto MDI/MDIX
Fan Quantity Fanless
Installation - DIN-rail mounting- Wall mounting
Power Supply 9.6-60V 1+1 Redundant DC Power Input
Dimensions ( W x D x H ) 5.1 × 3.7 × 1.8 in (129 × 95 × 45 mm)
Surge Protection - ±6 kV in common mode for Ethernet ports- ±4 kV in common mode for DC power input ports
Switching Capacity 16 Gbps
Packet Forwarding Rate 11.9 Mpps
MAC Address Table 8K
Packet Buffer Memory 4 Mbit
Jumbo Frame 15 KB
Quality of Service - 802.1p DSCP Priority- 8 Priority Queues- Priority Schedule Mode- WRR (Weighted Round Robin)- Queue Weight Config- Bandwidth Control- Port-Based Rate Limit- Storm Control- Multiple Control Modes (kbps/pps)- Broadcast/Multicast/Unknown-Unicast Control
L2 Features - Link Aggregation- Static Link Aggregation- Up to 2 aggregation groups and up to 4 ports per group- Loopback Detection- Flow Control- 802.3x Flow Control- Mirroring- Port Mirroring- One-to-One- Many-to-One- Ingress/Egress/Both- Port Statistics- Port Mirror Status- Traffic Statistics- 802.1ab LLDP- Spanning Tree- STP (802.1d)- RSTP (802.1w)
L2 Multicast - IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave
VLAN - MTU VLAN- Port-Based VLAN- 802.1Q Tag VLAN- Max 32 VLAN Groups- 4K VID
Transmission Method Store-And-Forward
Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management - Omada Cloud-Based Controller- Omada Hardware Controller- Omada Software Controller
Cloud Access Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller
Management Features - Web-based GUI- DHCP Client- Cable Diagnostics- Digital Diagnostic Monitoring (DDM)- Automatic Device Discovery†- Batch Configuration†- Batch Firmware Upgrading†- Unified Configuration†
Certification FCC, CE, RoHS
Package Content - IES208G- DIN-Rail Mounting Bracket- Wall-Mounting Plates- Installation Guide
Environment - Operating Temperature: -40?~75? (-40?~167?)- Storage Temperature: -40?~85? (-40?~185?)- Operating Humidity: 5%~95% non-condensing- Storage Humidity: 5%~95% non-condensing
