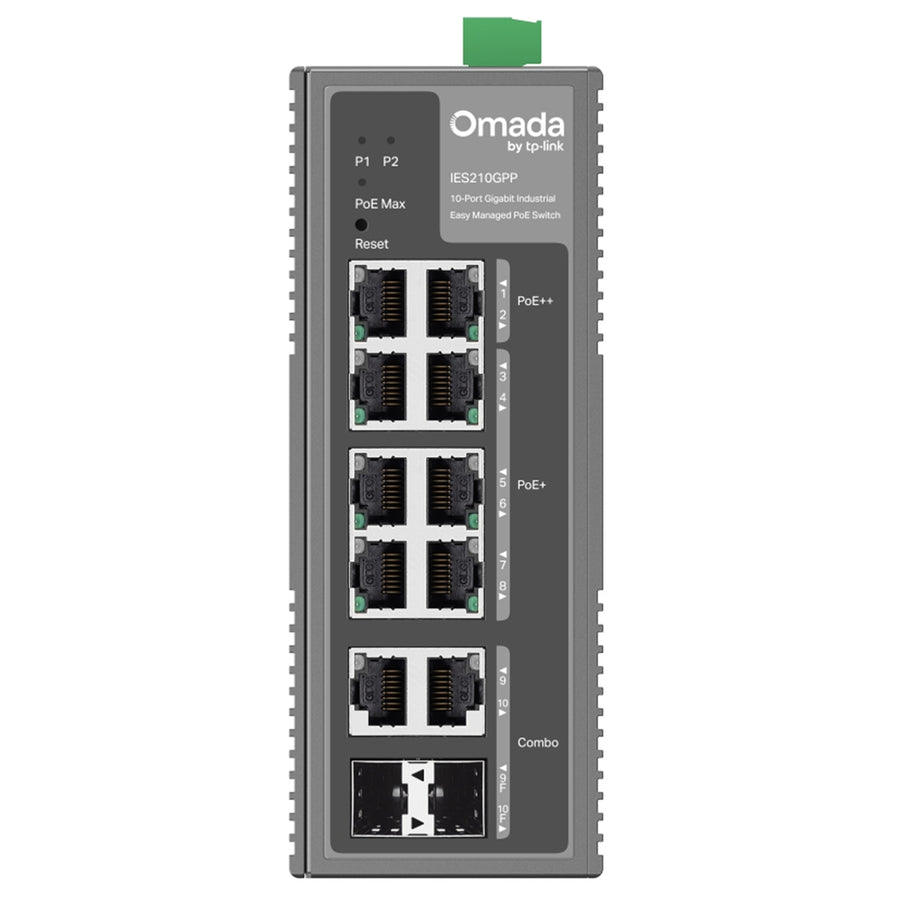

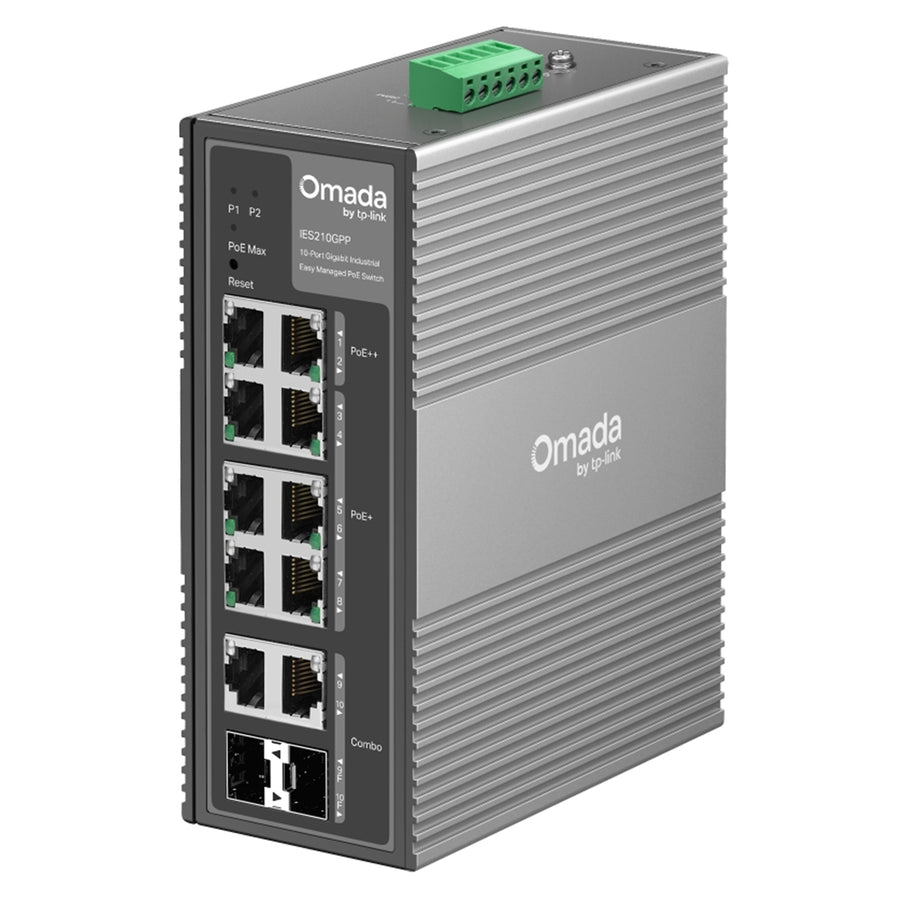

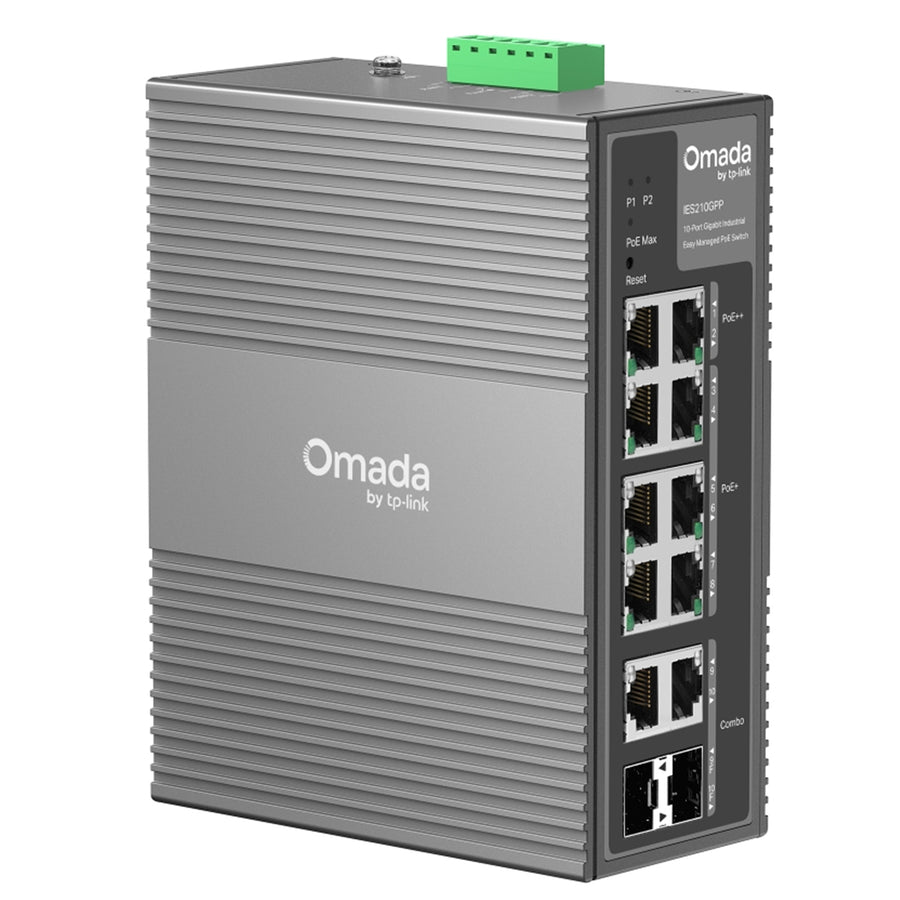

TP-Link Omada IES210GPP 10-Port Gigabit Industrial Easy Managed PoE Switch (240W) - SFP/GbE Combo x2, 1GbE PoE+ x6, 1GbE PoE++ x2
TP-Link Omada IES210GPP 10-Port Gigabit Industrial Easy Managed PoE Switch (240W) - SFP/GbE Combo x2, 1GbE PoE+ x6, 1GbE PoE++ x2
TP-Link Omada IES210GPP 10-Port Gigabit Industrial Easy Managed PoE Switch (240W) - SFP/GbE Combo x2, 1GbE PoE+ x6, 1GbE PoE++ x2
TP-Link

TP-Link Omada IES210GPP 10-Port Gigabit Industrial Easy Managed PoE Switch (240W) - SFP/GbE Combo x2, 1GbE PoE+ x6, 1GbE PoE++ x2

SKU: TL-IES210GPP ● In Stock
$521.73
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

TP-Link

TP-Link TL-WA801N Wi-Fi Access Point N300 Multiple Modes: Access Point / Client / Range Extender

Access PointWi-Fi 4PoE
$47.83
inc GST ▲ +GST
MERCUSYS

MER-HALOH47BE-2P - Mercusys Halo H47BE, BE9300 Whole Home Mesh Wi-Fi 7 System - 2 Pack

Wireless
$652.17
inc GST ▲ +GST
MERCUSYS

MER-HALOH25BE-3P - Mercusys Halo H25BE BE3600 Whole Home Mesh Wi-Fi 7 System - 3 Pack

Wireless
$488.69
inc GST ▲ +GST
D-Link

DLDNH100 - D-LINK DNH-100 Connect Hub

$369.56
inc GST ▲ +GST
MERCUSYS

MER-HALOH27BE-2P - Mercusys Halo H27BE BE3600 Whole Home Mesh Wi-Fi 7 System - 2 Pack

Wireless
$366.08$486.12
inc GST ▲ +GST

Features

Omada 10-Port Gigabit Industrial Easy Managed Switch with 6-Port PoE+ and 2-Port PoE++

- 8× Gigabit RJ45 Ports (2× PoE++, 6× PoE+)
- 2× Gigabit Combo RJ45/SFP Slots
- 240W Power Budget* with up to 60W for Each PoE++ Port
- Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input
- Abundant Features: Up to 820ft (250m) PoE,** VLAN, QoS, and STP/RSTP
- Centralized Cloud Management via the Web or Omada App†
- Durable IP40 Aluminum Casing and DIN-rail / Wall-mount Design

Specifications

Technical Specifications

Interface - 2× 10/100/1000 Mbps PoE++ RJ45 Ports- 6× 10/100/1000 Mbps PoE+ RJ45 Ports- 2× Gigabit SFP/RJ45 Combo Slots- Auto-Negotiation/Auto MDI/MDIX
Fan Quantity Fanless
Installation - DIN-rail mounting- Wall mounting
Physical Security Lock v
Power Supply 12-57V 1+1 Redundant DC Power Input
PoE Ports (RJ45) - Standard: 802.3af/at/bt compliant- PoE++ Ports (802.3af/at/bt PoE): 2 Ports, up to 60W per port- PoE+ Ports (802.3af/at PoE): 6 Ports, up to 30W per port- PoE Budget:- 60W (Input: 12V / 7.2A - 21V / 3.7A))- 120W (Input: 21V / 6.7A - 46V / 3.1A)- 240W (Input: 46V / 5.7A - 57V / 4.4A)
Dimensions ( W x D x H ) 6.1 × 4.7 × 2.4 in (155 × 120 × 60 mm)
Surge Protection - ±6 kV in common mode for Ethernet ports- ±4 kV in common mode for DC power input ports
Switching Capacity 20 Gbps
Packet Forwarding Rate 14.88 Mpps
MAC Address Table 8K
Packet Buffer Memory 4 Mbit
Jumbo Frame 15 KB
Quality of Service - 802.1p DSCP Priority- 8 Priority Queues- Priority Schedule Mode- WRR (Weighted Round Robin)- Queue Weight Config- Bandwidth Control- Port-Based Rate Limit- Storm Control- Multiple Control Modes (kbps/pps)- Broadcast/Multicast/Unknown-Unicast Control
L2 Features - Link Aggregation- Static Link Aggregation- Up to 4 aggregation groups and up to 6 ports per group- Loopback Detection- Flow Control- 802.3x Flow Control- Mirroring- Port Mirroring- One-to-One- Many-to-One- Ingress/Egress/Both- Port Statistics- Port Mirror Status- Traffic Statistics- 802.1ab LLDP- Spanning Tree- STP (802.1d)- RSTP (802.1w)
L2 Multicast - IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave
VLAN - MTU VLAN- Port-Based VLAN- 802.1Q Tag VLAN- Max 32 VLAN Groups- 4K VID
Transmission Method Store-And-Forward
Omada App Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management - Omada Cloud-Based Controller- Omada Hardware Controller- Omada Software Controller
Cloud Access Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requires the use of Omada Cloud-Based Controller
Management Features - Web-based GUI- DHCP Client- Cable Diagnostics- Digital Diagnostic Monitoring (DDM)- Automatic Device Discovery†- Batch Configuration†- Batch Firmware Upgrading†- Unified Configuration†
Certification FCC, CE, RoHS
Package Content - IES210GPP- DIN-Rail Mounting Bracket- Wall-Mounting Plates- Installation Guide
Environment - Operating Temperature: -40?~75? (-40?~167?)- Storage Temperature: -40?~85? (-40?~185?)- Operating Humidity: 5%~95% non-condensing- Storage Humidity: 5%~95% non-condensing
