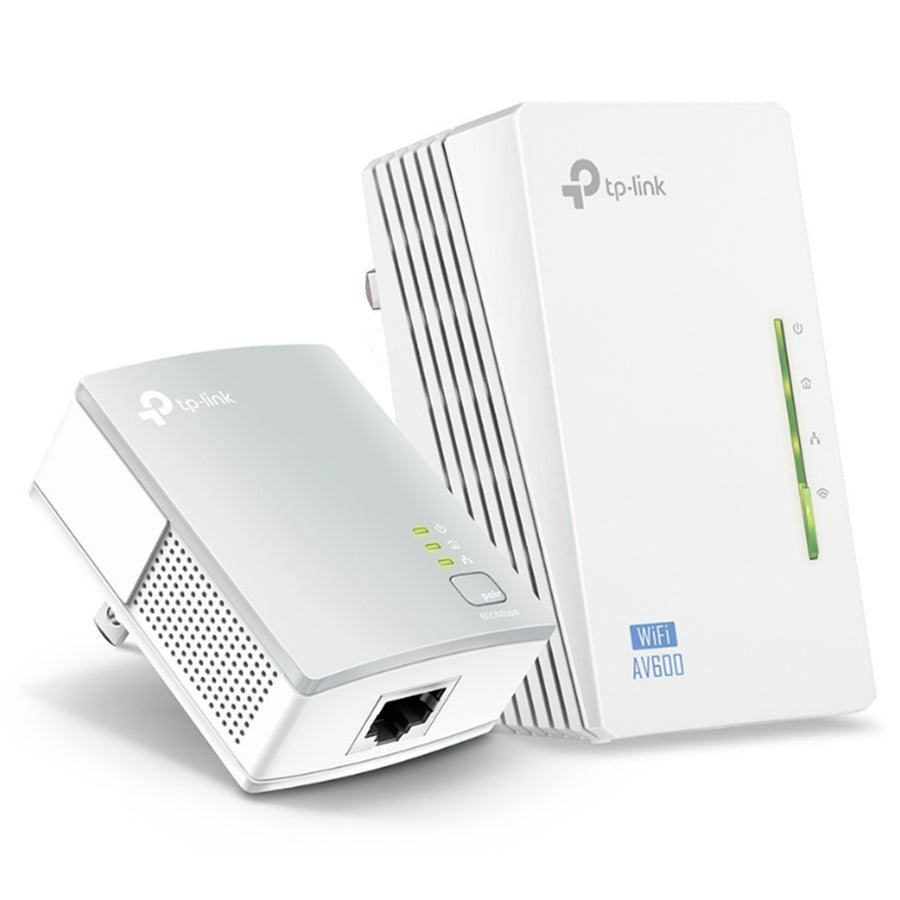

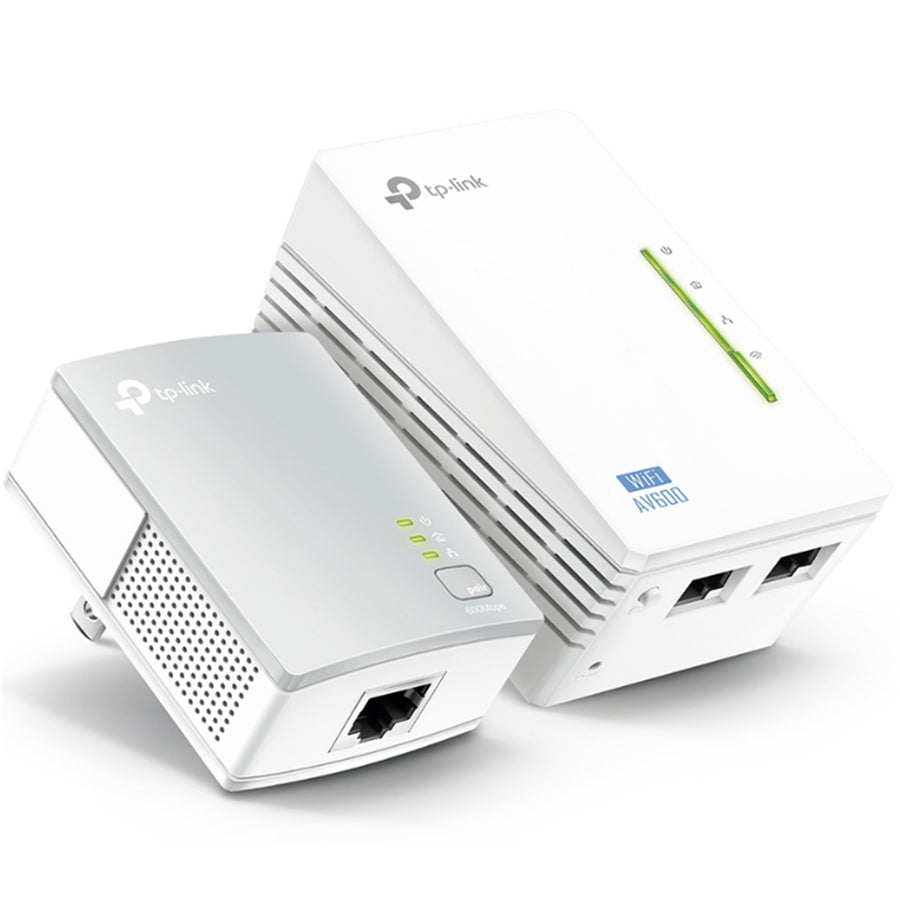

TP-Link TL-WPA4220 KIT AV600 Powerline Kit with N300 WiFi Extender
You May Also Like
TP-Link TL-PA4010P KIT AV600 Powerline Kit with AC Pass-Through
TL-WPA8631P KIT - TP-Link TL-WPA8631P KIT AV1300 Wi-Fi Passthrough Range Extender Powerline
TL-PA9020P KIT - TP-LINK PA9020P AV2000 2-Port Gigabit Passthrough Powerline Starter Kit
Features
Wired or Wireless? Why not Both! Meet an Excellent Home Network Solution
300Mbps AV600 Wi-Fi Powerline
Extender Starter Kit
Wi-Fi Auto-Sync for Unified Wi-Fi Network
Wi-Fi Auto-Sync creates a simple, intuitive powerline experience. Pressing the Wi-Fi Clone button instantly copies your network name and password from your router for easy setup. Wi-Fi Move automatically applies any settings changes across the network. Your existing Wi-Fi settings will be synchronized to the new extender automatically.

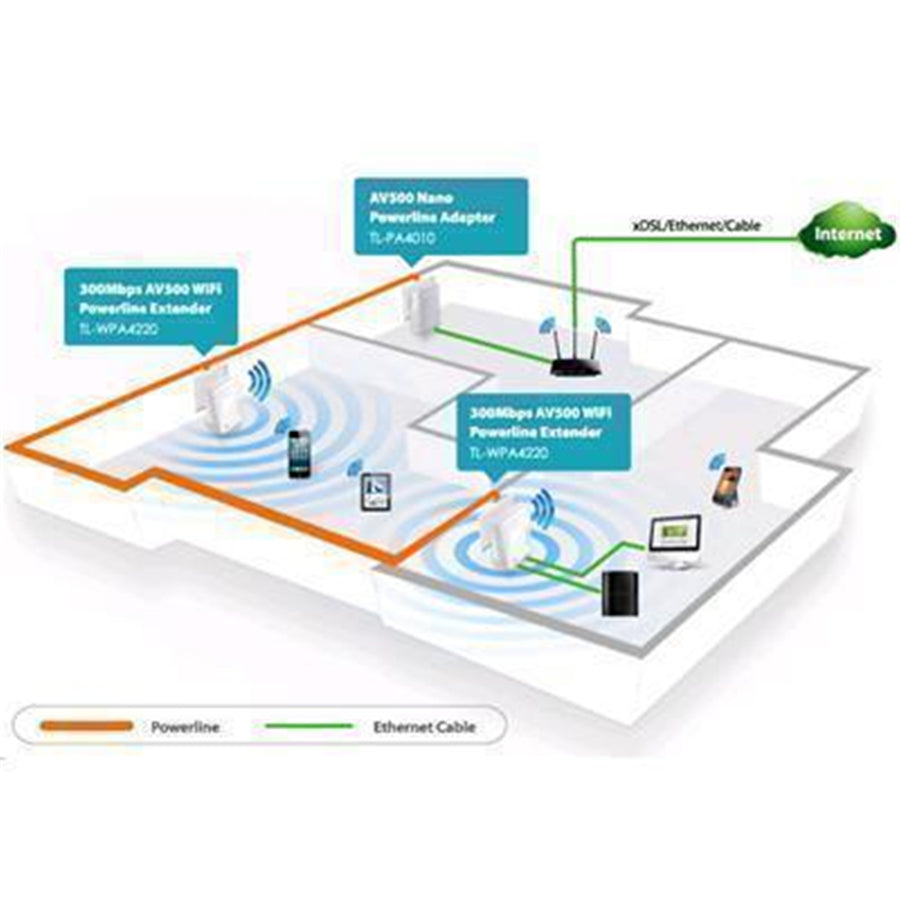

Extend Your Powerline Network to Any Room
Based on the Powerline technology, your network extension is never limited to the primary coverage of your router. With advanced HomePlug AV2,TL-WPA4220 KIT is perfect for delivering ultra-fast data transfer speed and brings network to anywhere there is a power outlet.
Plug, Pair and Play!
Plug the TL-PA4010 in the wall and connect it to the router with an Ethernet cable.Then plug the TL-WPA4220 in any desired power outlet.
Press the 'Pair' buttons on both adapters to create a secure network.
There you go! Just enjoy the seamless, high speed wired and wireless network.
* Powerline adapters need to be connected to the same electrical circuit.
Powerline Management on Your Smartphone
The tpPLC Utility and tpPLC app make it easy to control wireless network settings, set schedules for Wi-Fi availability and even control the LED indicators on your adapters from any iOS or Android device. You can download the tpPLC app for iOS and Android devices. You can download the intuitive new tpPLC Utility for your PC at www.tp-link.com/en.
Specifications
Technical Specifications
| Plug Type | AU |
|---|---|
| Standards and Protocols | HomePlug AV, IEEE802.3, IEEE802.3u, IEEE802.11b/g/n |
| Interface | 2*10/100Mbps Ethernet Port |
| Button | Pair, Reset, Wi-Fi/Wi-Fi Clone |
| Power Consumption | Maximum: 7.608W (220V/50Hz)Typical: 7.216W (220V/50Hz)Standby: 4.610W (220V/50Hz) |
| LED Indicator | PWR, PLC, ETH, Wi-Fi/Wi-Fi Clone |
| Dimensions ( W x D x H ) | TL-WPA4220: 2.1 x 1.6 x 3.7 in. (54 × 40 × 94 mm)TL-PA4010: 2.0 × 1.1 × 2.6 in. (52 × 28.5 × 65 mm) |
| Range | 300 Meters over electrical circuit |
| Frequency | 2.4-2.4835GHz |
| Signal Rate | 11n: Up to 300Mbps(dynamic)11g: Up to 54Mbps(dynamic)11b: Up to 11Mbps(dynamic) |
| Reception Sensitivity | 270M: -68dBm@10% PER130M: -68dBm@10% PER108M: -68dBm@10% PER54M: -68dBm@10% PER11M: -85dBm@8% PER6M: -88dBm@10% PER1M: -90dBm@8% PER |
| Wireless Security | 64/128-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK |
| Advanced Functions | Enable/DisableWireless Radio,WMM, Wireless Statistics |
| Transmission Power | CE:<20dBm(2.4GHz)FCC:<30dBm |
| Modulation Technology | OFDM (PLC) |
| Encryption | Powerline Security:128-bit AESWireless Security:WEP, WPA/WPA2, WPA-PSK/WPA2-PSK Encryption |
| Certification | CE, FCC, RoHS |
| Package Contents | Powerline Ethernet Adapter TL-WPA4220 & TL-PA40106.5 ft. (2 m) Ethernet cable (RJ45)Resource CDQuick Installation Guide |
| System Requirements | Windows 2000/XP/2003/Vista, Windows 7/8, Mac, Linux |
| Environment | Operating Temperature: 0°C~40°C (32°F ~104°F)Storage Temperature: -40°C~70°C (-40°F ~158°F)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing |
| Brand | TP-Link |
|---|---|
| Product Type | Networking > Powerline Networking |
| Weight | 0.462 kg |
| Warranty |
|---|
Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
