TP-Link Archer TX20E AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter
TP-Link

TP-Link Archer TX20E AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter

SKU: ARCHER TX20E ● In Stock
$53.03$54.97
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

TP-Link

TP-Link Archer TX10UB Nano AX900 Nano Wi-Fi 6 Bluetooth 5.3 USB Adapter

Wireless AdapterWi-Fi 6
$32.86$35.65
inc GST ▲ +GST
TP-Link

TP-Link Archer T2UB Nano AC600 Nano Wi-Fi Bluetooth 4.2 USB Adapter

Wireless AdapterWi-Fi 5
$34.70$37.39
inc GST ▲ +GST
TP-Link

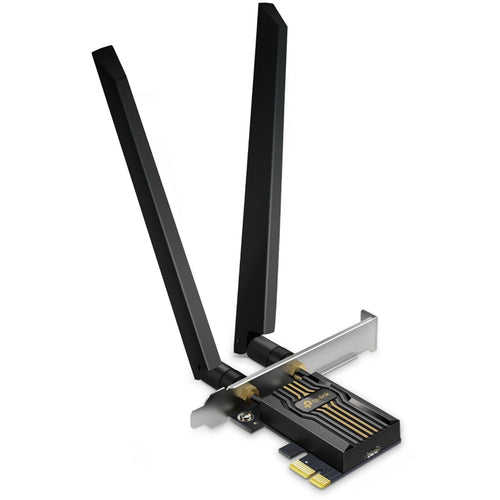

TP-Link Archer BE552 BE9300 Wi-Fi 7 Bluetooth 5.4 PCIe Adapter

Wireless AdapterWi-Fi 7
$154.77$155.65
inc GST ▲ +GST
TP-Link

TP-Link Archer TX10UB Nano AX900 Nano Wi-Fi 6 Bluetooth 5.3 USB Adapter

Wireless AdapterWi-Fi 6
$32.86$35.65
inc GST ▲ +GST
TP-Link

TP-Link Archer BE552 BE9300 Wi-Fi 7 Bluetooth 5.4 PCIe Adapter

Wireless AdapterWi-Fi 7
$154.77$155.65
inc GST ▲ +GST

Features

AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter

- Unrivalled Wi-Fi 6 Speed-Breaks the gigabit barrier with speed up to 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz)†‡

- Wider Signal Coverage- Connect to your Wi-Fi in more parts of your home with two external high-gain antennas ensuring greater coverage and enhanced stability

- Bluetooth 5.2-The latest Bluetooth technology achieves 2× Faster Speed and 4× Broader Coverage than BT 4.2**

- Improved Security-The latest security enhancements WPA3 provides enhanced protection in personal password safety

- Backward Compatibility - Full support for 802.11ax/ac/a/b/g/n standards



Wi-Fi 6 Upgrades Everything

The latest Wi-Fi technology makes annoying lag, endless loading, and dead spots a thing of the past. Enjoy the future of faster network loads and more connections.



More Devices, Less Congestion

OFDMA creates separate channel segments for devices to communicate while MU-MIMO allows multiple clients to simultaneously receive data. Combining these technologies guarantees your PC gets strong, efficient, and lag-free wireless connectivity at the same time all of your other devices are communicating.‡



High-Gain Antennas for Broader Coverage

Two powerful signal-boosting high-gain antennas greatly extend existing Wi-Fi coverage, offering a fast, smooth online experience from farther away.



Bluetooth 5.2 Compatible

The latest Bluetooth 5.2 Technology, achieves speeds 2× faster and coverage 4× broader than Bluetooth 4.2, to perfectly coordinate with your game controllers, headphones, keyboards, and other Bluetooth devices.***



Cutting-Edge Security

WPA3, the latest network security standard, provides more secure and individualized encryption in personal password safety, protects your network from wireless hacking and ensure your wireless connection is completely secure while surfing the web and shopping online.



Easy Setup

The utility on the provided CD makes software installation remarkably simple



Operating System

Supports Windows 11/10 (64-bit) only



Standard and Low-Profile Brackets

Both a standard and low-profile bracket, for mini tower computer cases, are provided

Specifications

Technical Specifications

Dimensions 4.76 × 3.09 × 0.82 in (120.8 × 78.5 × 20.9 mm)
Antenna Type Two High-Gain Dual Band Antennas
Chipset Realtek Wi-Fi 6 Chipset
Wireless Standards IEEE 802.11ax/ac/n/a 5 GHzIEEE 802.11ax/n/g/b 2.4 GHzBluetooth 5.2
WLAN Signal Rate 5 GHz11ax: Up to 1201 Mbps(dynamic)11ac: Up to 867 Mbps(dynamic)11n: Up to 300 Mbps(dynamic)11a: Up to 54 Mbps(dynamic)2.4 GHz11ax: Up to 574 Mbps(dynamic)11n: Up to 300 Mbps(dynamic)11g: Up to 54 Mbps(dynamic)11b: Up to 11 Mbps(dynamic)
WLAN Reception Sensitivity 5 GHz :11ax HE80: -57.0dBm11ax HE40: -60.0dBm11ax HE20: -63.0dBm11ac VHT80: -59.5dBm11ac VHT40: -62.5dBm11ac VHT20: -67.5dBm11n HT40: -69.5dBm11n HT20: -72.5dBm11a 54Mbps: -74.0dBm11a 6Mbps: -94.5dBm2.4GHz :11ax HE40: -60.0dBm11ax HE20: -63.0dBm11n HT40: -69.5dBm11n HT20: -72.5dBm11g 54Mbps: -74.0dBm11b 11Mbps: -88.0dBm
WLAN Transmit Power 5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP)2.4 GHz : 25dBm(FCC) / 20dBm(CE) (EIRP)
WLAN Modes Infrastructure mode
Wireless Security Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x
Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM
Certification CE, FCC, RoHS
Package Contents Archer TX20ETwo High-Gain Dual Band AntennasLow-Profile BracketBluetooth Header CableQuick Installation GuideResource CD
System Requirements Windows 11/10(64-bit) only
Environment Operating Temperature: 0~40C (32~104F)Storage Temperature: -40~70C (-40~158F)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing
