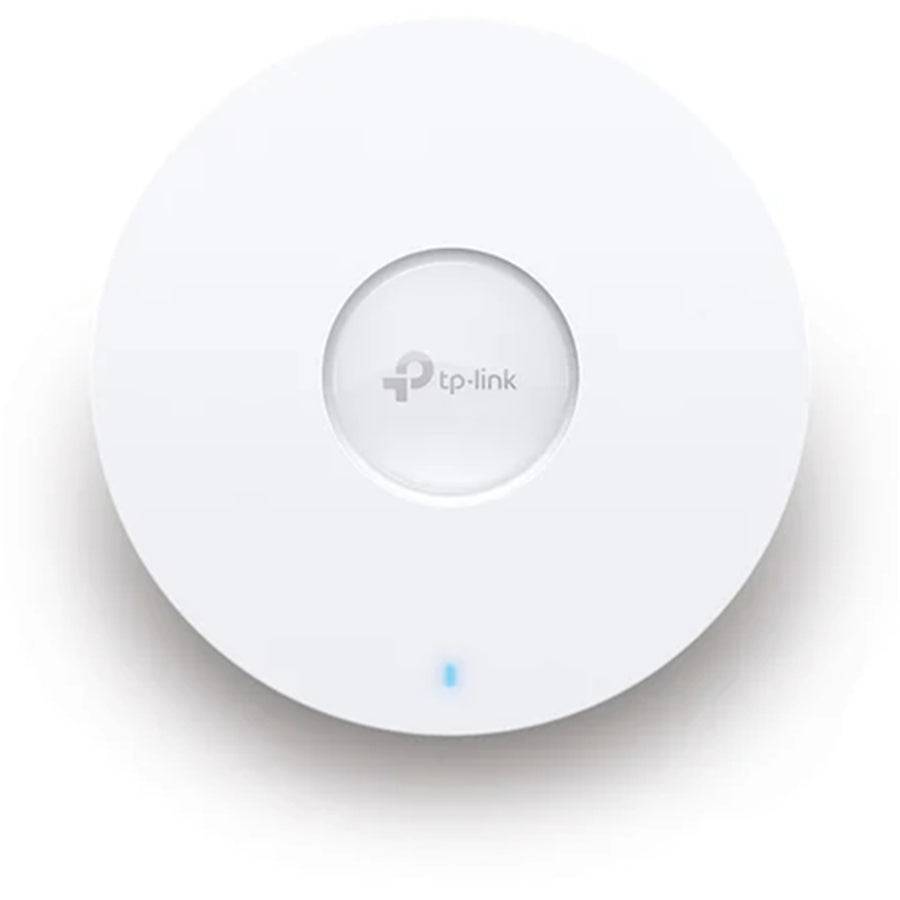

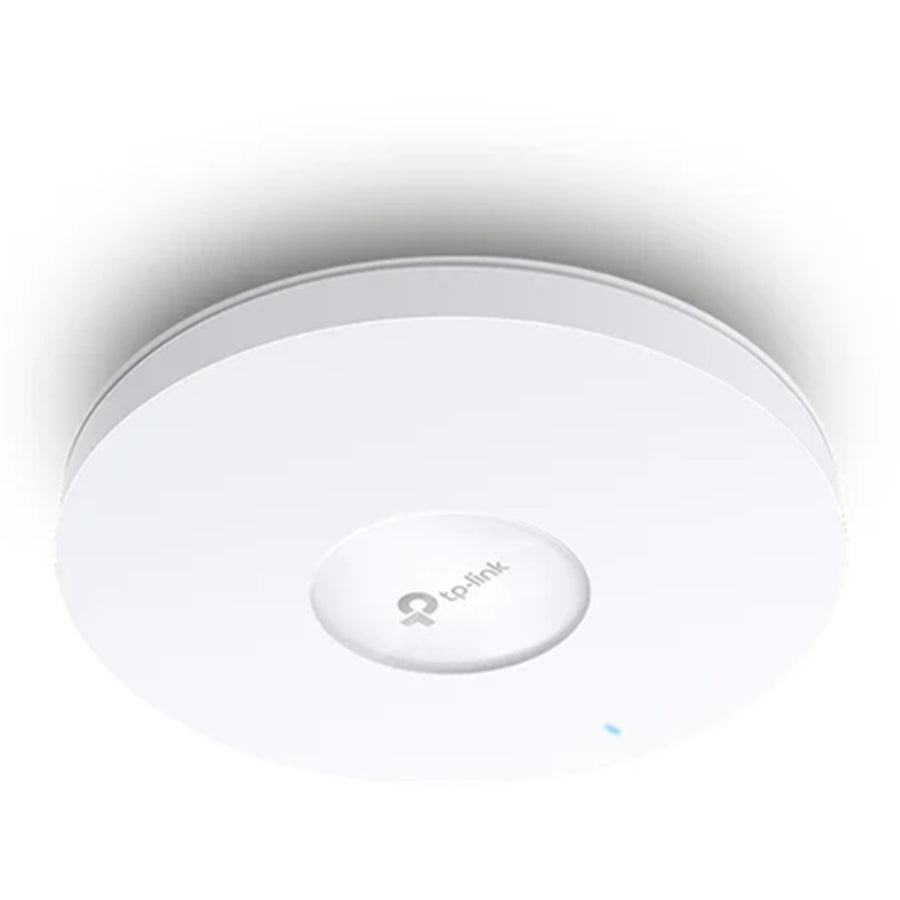

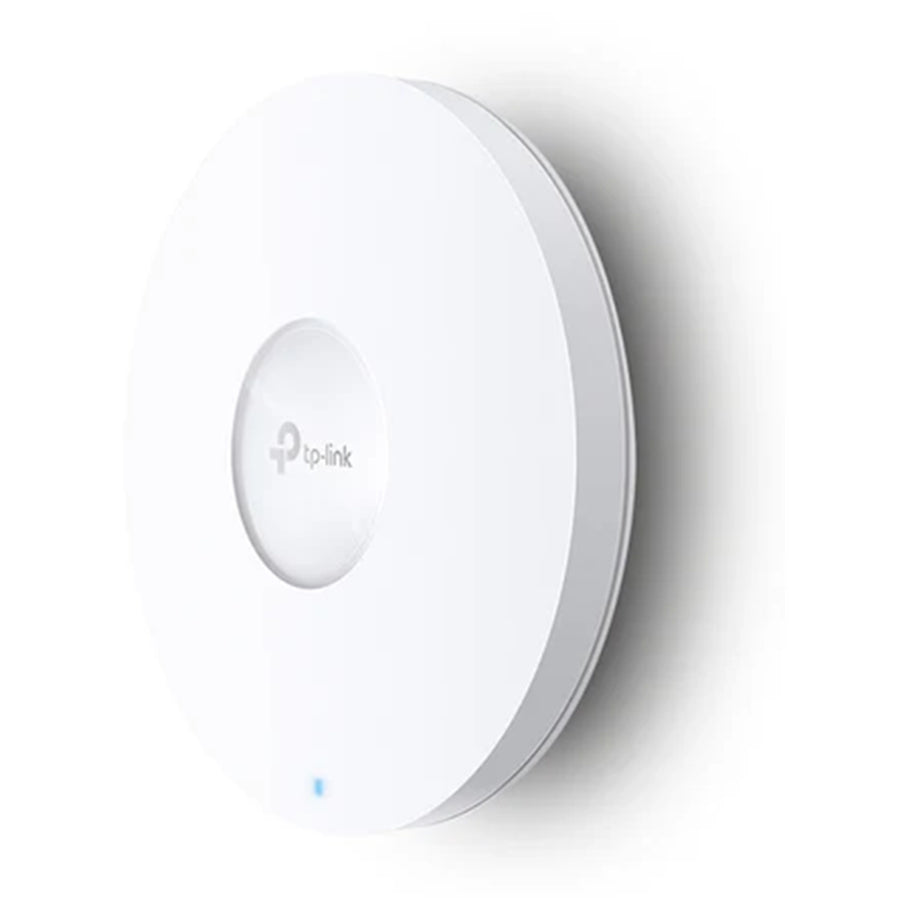

TP-Link Omada EAP653 UR (AX3000) Dual-Band 4-Stream Ultra-Range Wi-Fi 6 Access Point with 1GbE x1 (PoE+ 15W)
TP-Link Omada EAP653 UR (AX3000) Dual-Band 4-Stream Ultra-Range Wi-Fi 6 Access Point with 1GbE x1 (PoE+ 15W)
TP-Link Omada EAP653 UR (AX3000) Dual-Band 4-Stream Ultra-Range Wi-Fi 6 Access Point with 1GbE x1 (PoE+ 15W)
TP-Link Omada EAP653 UR (AX3000) Dual-Band 4-Stream Ultra-Range Wi-Fi 6 Access Point with 1GbE x1 (PoE+ 15W)
TP-Link

TP-Link Omada EAP653 UR (AX3000) Dual-Band 4-Stream Ultra-Range Wi-Fi 6 Access Point with 1GbE x1 (PoE+ 15W)

SKU: EAP653 UR ● In Stock
$207.83
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Ubiquiti

Ubiquiti UniFi U7-PRO-XGS (BE15000) Tri-Band 8-Stream Wi-Fi 7 Access Point with 10GbE x1 (PoE++ 29W)

$667.20$682.85
inc GST ▲ +GST
Ubiquiti

Ubiquiti UniFi U7-PRO-XG (BE11000) Tri-Band 6-Stream Wi-Fi 7 Access Point with 10GbE x1 (PoE+ 22W) - Black

$446.43$456.80
inc GST ▲ +GST
Ubiquiti

Ubiquiti UniFi U6-IW (AX5400) Dual-Band 6-Stream Wi-Fi 6 Access Point with 1GbE x5 (PoE+ 13W+)

$420.18$421.95
inc GST ▲ +GST
Ubiquiti

Ubiquiti UniFi U7-PRO-XG (BE11000) Tri-Band 6-Stream Wi-Fi 7 Access Point with 10GbE x1 (PoE+ 22W)

$446.43$456.80
inc GST ▲ +GST
Ubiquiti

Ubiquiti UniFi U7-Pro-Wall (BE11000) Tri-Band 6-Stream Wi-Fi 7 Access Point with 2.5GbE x1 (PoE+ 22W)

$439.87$449.27
inc GST ▲ +GST

Features

AX3000 Ceiling Mount WiFi 6 Access Point

- Ultra-fast WiFi 6 speeds: 2402 Mbps on 5 GHz t+ 574 Mbps on 2.4 GHz†
- Ultra-range wireless coverage by more antennas with higher transmit power
- Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc‡
- Advanced Features: Omada Mesh, Seamless Roaming, etc§
- PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included)
- Ultra-Slim Design: F6.3 in × 1.3 in elegant design brings more agility
- Integrates with the Omada SDN platform for centralised management

Specifications

Technical Specifications

Interface 1x Gigabit PoE+ Port
Button Reset
Power Supply - 802.3at PoE- 12V DC / 1.5 A (Power Adapter IS NOT included)- 48V Passive PoE
Power Consumption - EU: 14.2 W- US: 15.5 W
Dimensions ( W x D x H ) 6.3 x 6.3 x 1.3 in (160 × 160 × 33.6 mm)
Antenna Type Internal Omni- 2.4 GHz: 2x 5 dBi- 5 GHz: 3x 5 dBi

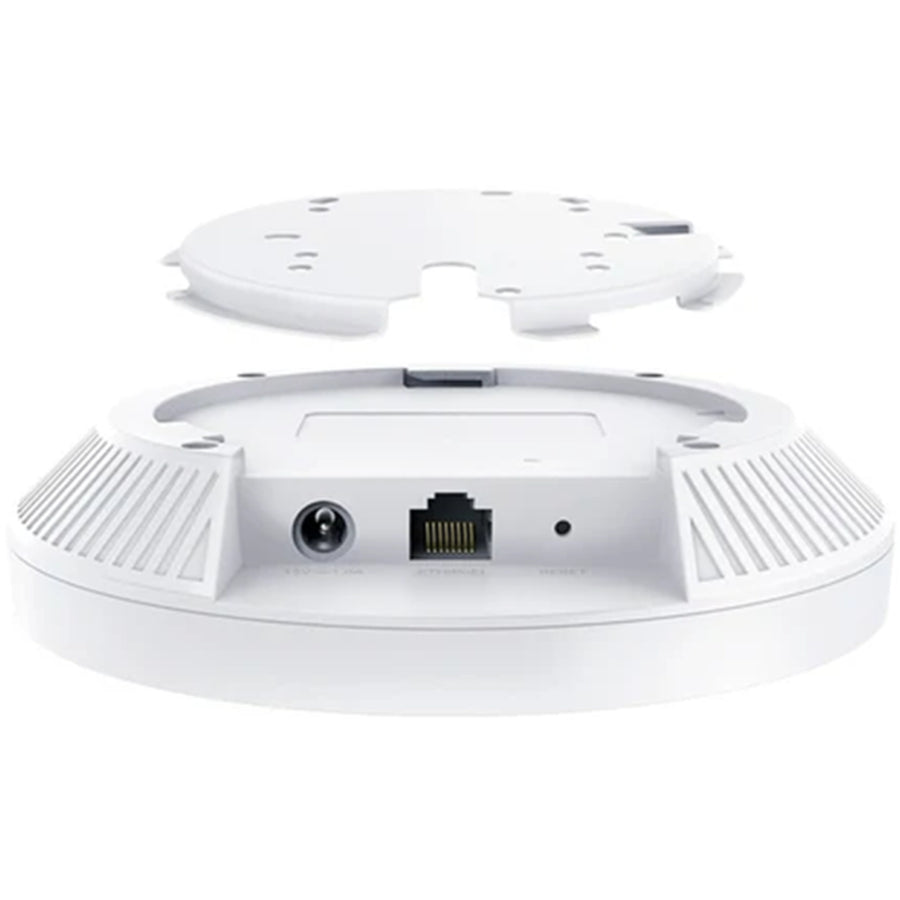

Mounting - Ceiling /Wall Mounting (Kits included)- Junction Box Mounting
Coverage 140m2(1500 ft²)***
Concurrent Clients 250+**
Wireless Standards IEEE 802.11ax/ac/n/g/b/a
Frequency 2.4 GHz and 5 GHz
Signal Rate - 5 GHz: Up to 2402 Mbps†- 2.4 GHz: Up to 574 Mbps†
Wireless Functions - 1024-QAM- 4x Longer OFDM Symbol- OFDMA- Multiple SSIDs (Up to 16 SSIDs, 8 for each band)- Enable/Disable Wireless Radio- Automatic Channel Assignment- Transmit Power Control (Adjust Transmit Power on dBm)- QoS(WMM)- MU-MIMO(2G: 2*2 MU-MIMO DL/UL; 5G:2*2 MU-MIMO DL/UL)- HE160 (160 MHz Bandwidth)‡- Seamless Roaming(802.11k/v/r)§- Omada Mesh§- Band Steering- Load Balance- Airtime Fairness- Beamforming- Rate Limit- Reboot Schedule- Wireless Schedule- Wireless Statistics based on SSID/AP/Client
Wireless Security - Captive Portal Authentication§- Access Control- Wireless Mac Address Filtering- Wireless Isolation Between Clients- SSID to VLAN Mapping- Rogue AP Detection- 802.1X Support- WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power - CE:<20 dBm(2.4 GHz, EIRP)<23 dBm(5 GHz, Band1 & Band2, EIRP)<29 dBm(5 GHz, Band3, EIRP)- FCC:<26 dBm (2.4 GHz)<27 dBm (5 GHz)
Omada App Yes
Centralized Management - Omada Hardware Controller (OC300)- Omada Hardware Controller (OC200)- Omada Software Controller- Omada Cloud-Based Controller
Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1, v2c, v3
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
Certification CE, FCC, RoHS
Package Contents - EAP653 UR- Ceiling/Wall Mounting Kit- Installation GuideNote: DC adapter is not included in the package, and is sold separately.
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Environment - Operating Temperature: 0-40 C (32-104 F)- Storage Temperature: -40-70 C (-40-158 F)- Operating Humidity: 10-90% RH non-condensing- Storage Humidity: 5-90% RH non-condensing
