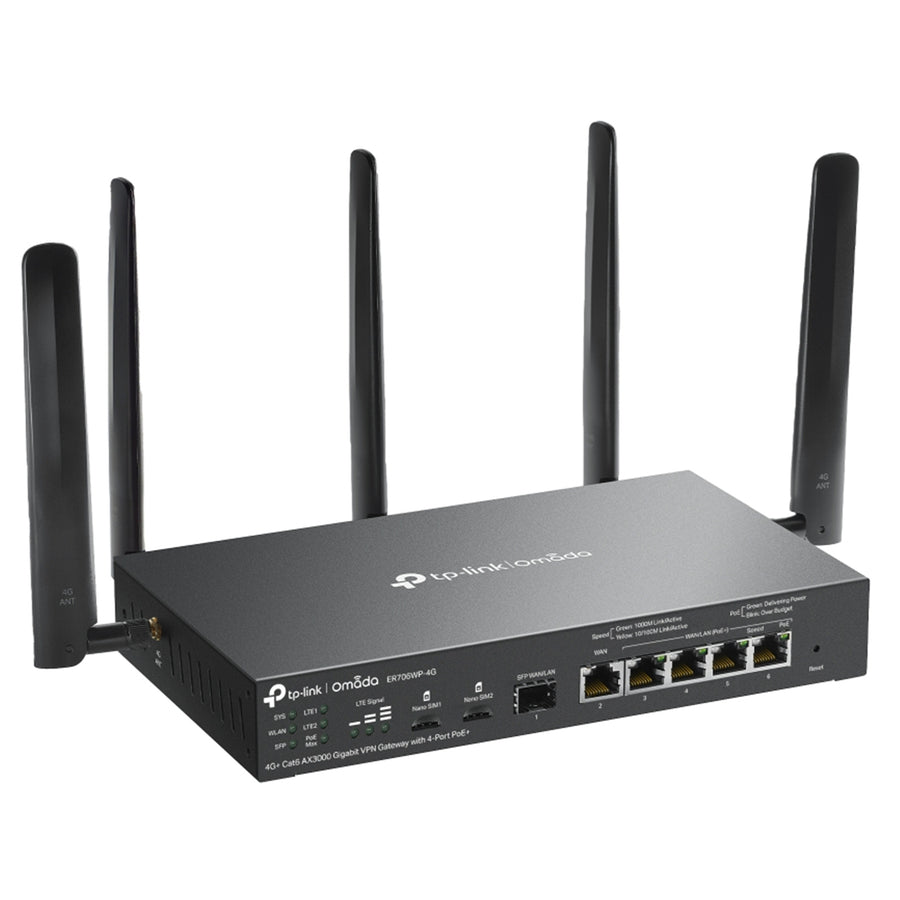

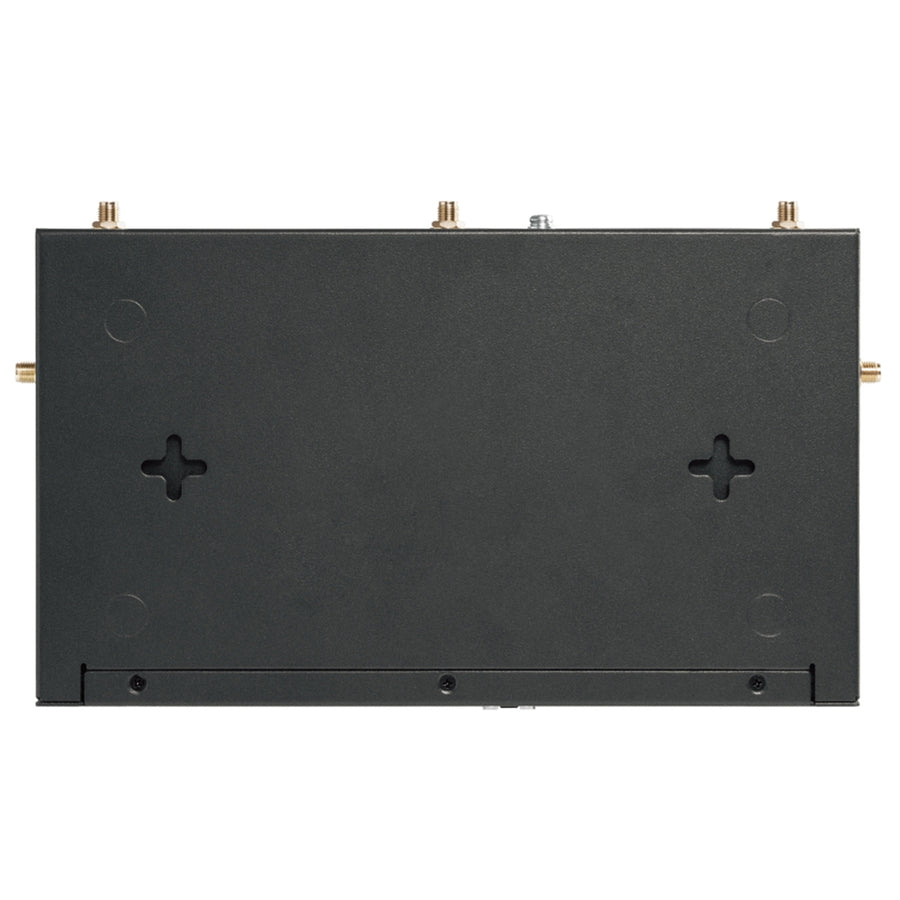

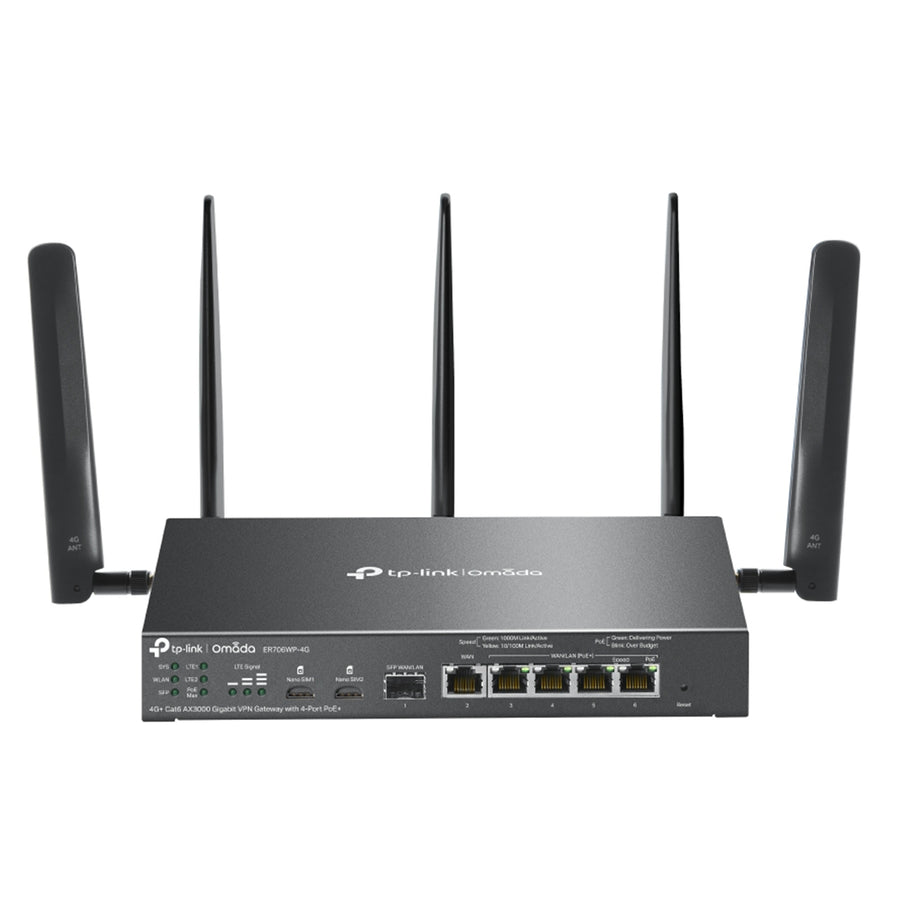

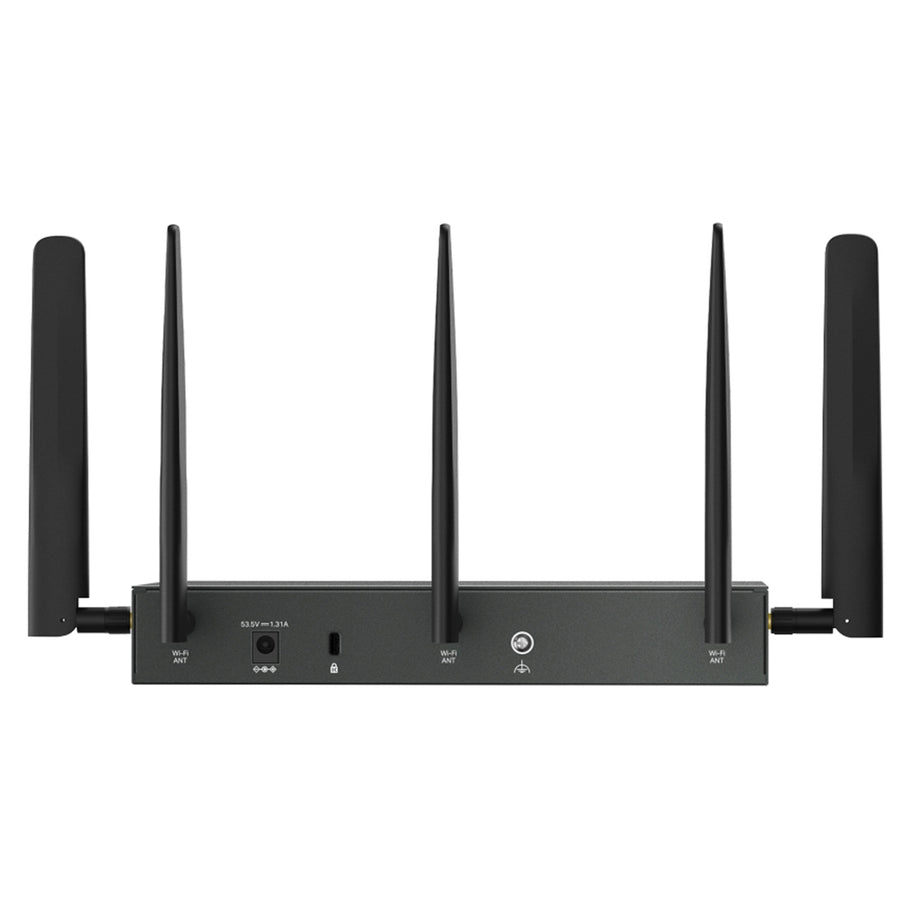

TP-Link Omada ER706WP-4G 4G CAT6 / WiFi 6 AX3000 Gigabit Multi-WAN PoE Gateway (45W)
TP-Link Omada ER706WP-4G 4G CAT6 / WiFi 6 AX3000 Gigabit Multi-WAN PoE Gateway (45W)
TP-Link Omada ER706WP-4G 4G CAT6 / WiFi 6 AX3000 Gigabit Multi-WAN PoE Gateway (45W)
TP-Link Omada ER706WP-4G 4G CAT6 / WiFi 6 AX3000 Gigabit Multi-WAN PoE Gateway (45W)
TP-Link

TP-Link Omada ER706WP-4G 4G CAT6 / WiFi 6 AX3000 Gigabit Multi-WAN PoE Gateway (45W)

SKU: TL-ER706WP-4G ● In Stock
$582.60
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

TP-Link

TP-Link TL-WA801N Wi-Fi Access Point N300 Multiple Modes: Access Point / Client / Range Extender

Access PointWi-Fi 4PoE
$47.83
inc GST ▲ +GST
MERCUSYS

MER-HALOH47BE-2P - Mercusys Halo H47BE, BE9300 Whole Home Mesh Wi-Fi 7 System - 2 Pack

Wireless
$652.17
inc GST ▲ +GST
MERCUSYS

MER-HALOH25BE-3P - Mercusys Halo H25BE BE3600 Whole Home Mesh Wi-Fi 7 System - 3 Pack

Wireless
$488.69
inc GST ▲ +GST
D-Link

DLDNH100 - D-LINK DNH-100 Connect Hub

$369.56
inc GST ▲ +GST
MERCUSYS

MER-HALOH27BE-2P - Mercusys Halo H27BE BE3600 Whole Home Mesh Wi-Fi 7 System - 2 Pack

Wireless
$366.08$486.12
inc GST ▲ +GST

Features

Omada 4G+ Cat6 AX3000 Gigabit VPN Gateway with 4-Port PoE+

- Support 4G+ Cat6*: Insert a Nano SIM card to enjoy up to 300 Mbps (Not compatible with AT&T's Text & Data plans** in the US).
- AX3000 Dual-Band WiFi 6: Supports 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz***
- 5 Gigabit Ethernet Ports: Provide high-speed wired connectivity.
- 5 High-Gain Detachable Antennas: Extend and concentrate the Wi-Fi signals.
- Centralized Management: Cloud access and the Omada app for easy management.
- Omada Mesh: Seamlessly connects to EAPs that support mesh technology.*
- High-Security VPN: Supports IPSec / SSL / WireGuard / OpenVPN / PPTP / L2TP VPN.

Specifications

Technical Specifications

Network Type LTE Band of EU:- 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1450 MHz)- 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz)- 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8(2100/1800/850/900 MHz)Carrier Aggregation of EU:B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41B3+B3/B5/B7/B8/B20/B28/B38/B40/B41B5+B5/B7/B38/B40/B41B7+B7/B8/B20/B28/B32B8+B32/B38/B40/B41B20+B32/B38/B40B28+B32/B38/B40/B41B38+B38B40+B40B41+B41
SIM Type 2× Nano SIM Card( (4G+ Cat6)
Frequency - Downlink: 300 Mbps;- Uplink: 50 Mbps
DPI Application control via DPI / Updated app library
IDS/IPS Signature-based IPS/IDS threat detection
Access Control Source/Destination IP Based Access Control
Filtering - Web Group Filtering†- URL Filtering- Web Security†
ARP Inspection - Sending GARP Packets- ARP Scanning†- IP-MAC Binding
Attack Defense - TCP/UDP/ICMP Flood Defense- Block TCP Scan (Stealth FIN/Xmas/Null)- Block Ping from WAN
Interface - 1 Gigabit SFP WAN/LAN Port- 1 Gigabit WAN Port- 4 Gigabit LAN/WAN Ports
Network Media - 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100O STP (Max 100 m)- 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100O STP (Max 100 m)- 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Button Reset Button
Power Supply 4 Ports PoE+ Output, 45 W PoE Budget
Wi-Fi Frequency & Signal Rate - 2.4 GHz: 574 Mbps- 5 GHz: 2402 Mbps (HE160)
Flash 256 MB NAND
DRAM 512 MB DDR4
LED SYS, WLAN, SFP, LTE1, LTE2, PoE Max, LTE Signal, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act, PoE)
Dimensions ( W x D x H ) 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not included)
Antenna - Wi-Fi: Three 5GHz 5.5dBi & 2.4GHz 4.5dBi dual-band detachable antennas- LTE: Two 4.0dBi omnidirectional detachable antennas
Mounting Desktop/Wall-Mounting/Rackmount
Max. Power Consumption 64.9W with PoE Max; 19.8W without PoE
IPS Throughput - TCP: 229 Mbps- UDP: 188 Mbps
DPI Throughput - TCP: 933 Mbps- UDP: 927 Mbps
GRE - Unencrypted: 545.3Mbps- Encrypted: 282.6Mbps
WireGuard VPN 387.7Mbps
Concurrent Session 150,000
New Sessions /Second 5,100
NAT (Static IP) 947.1Mbps / 940.1Mbps
NAT(DHCP) 949.2Mbps / 941.1Mbps
NAT(PPPoE) 942.6Mbps / 941.1Mbps
NAT (L2TP) 875.4Mbps / 892.0Mbps
NAT (PPTP) 881.2Mbps / 895.8Mbps
IPsec VPN Throughput - ESP-SHA1-AES256: 652.2Mbps- ESP-SHA256-AES256: 654.4Mbps- ESP-SHA384-AES256: 646.5Mbps- ESP-SHA512-AES256: 670.5 Mbps
OpenVPN 115.5Mbps
L2TP VPN Throughput - Unencrypted: 990.0Mbps- Encrypted: 475.0Mbps
PPTP VPN Throughput - Unencrypted: 1177.9Mbps- Encrypted: 177.4Mbps
SSL VPN Throughput 122.5Mbps
66 Byte Packet Forwarding Rate 1,453,489 pps / 1,453,488 pps
1,518 Byte Packet forwarding rate 81274 pps / 91275 pps
Advanced Features - Seamless Roaming- Mesh (with EAP that supports Mesh)- OFDMA- Beamforming- MU-MIMO- Rate Limit: Based on SSID/Client- Airtime Fairness- Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise- Multiple SSIDs: 16 in total (8 per radio)
Guest Network Support
WAN Connection Type - Static IP- Dynamic IP- PPPoE (supports MRU Configuration)- PPTP- L2TP
MAC Clone Modify WAN Address
DHCP - DHCP Server- DHCPv6 PD Server (only in Standalone Mode)- DHCP Options Customization- DHCP Address Reservation- Multi-IP Interfaces- Multi-Net DHCP
SMS Receive / Send SMS
IPv6 StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN 802.1Q VLAN
IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
Access Control IP/Port/Protocol/Domain Name Filtering
Advanced Routing - Static Routing- Policy Routing- RIP†- OSPF†
Bandwidth Control IP-Based Bandwidth Control
Load Balance - Intelligent Load Balance- Application Optimized Routing- Link Backup(Timing, Failover)- Online Detection
NAT - One-to-One NAT- Multi-Net NAT- Virtual Server- Port Triggering†- NAT-DMZ- FTP/H.323/SIP/IPSec/PPTP ALG- UPnP
Session Limit IP-Based Session Limit
GRE Only in Standalone Mode
SSL VPN 50 Tunnels
IPsec VPN - 100 IPSec VPN Tunnels- LAN-to-LAN, Client-to-LAN- Main, Aggressive Negotiation Mode- DES, 3DES, AES128, AES192, AES256 Encryption Algorithm- IPsec Failover- IKE v1/v2- MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm- NAT Traversal (NAT-T)- Dead Peer Detection (DPD)- Perfect Forward Secrecy (PFS)
PPTP VPN - PPTP VPN Server- PPTP VPN Client (10)- 50 Tunnels- PPTP with MPPE Encryption
L2TP VPN - L2TP VPN Server- L2TP VPN Client (10)- 50 Tunnels- L2TP over IPSec
OpenVPN - OpenVPN Server- OpenVPN Client (5)- 55 OpenVPN Tunnels- "Certificate + Account" Mode- Full Mode
WireGuard VPN - 20 Tunnels
Web Authentication - No Authentication- Simple Password§- Hotspot (Local User / Voucher§ / SMS§ / Radius§)- External Radius Sever- External Portal Sever§- LDAP
Omada App Yes.
Centralized Management - Omada Cloud-Based Controller- Omada Hardware Controller (OC300)- Omada Hardware Controller (OC200)- Omada Software Controller
Cloud Access Yes.
Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance - Web Management Interface- Remote Management- Export & Import Configuration- SNMP v1/v2c/v3- Diagnostics (Ping & Traceroute)†- NTP Synchronize†- Port Mirroring- CLI (only in Standalone Mode)- Syslog Support
Zero-Touch Provisioning Yes. Require the use of Omada Cloud-Based Controller.
Management Features - Automatic Device Discovery- Intelligent Network Monitoring- Abnormal Event Warnings- Unified Configuration- Reboot Schedule- Captive Portal Configuration
Certification CE, FCC, RoHS
Package Content - ER706WP-4G- Power Adapter- Quick Installation Guide
System Requirements - Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11- MAC OS, NetWare, UNIX or Linux
Environment - Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)- Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)- Operating Humidity: 10% to 90% non-condensing- Storage Humidity: 5% to 90% non-condensing
