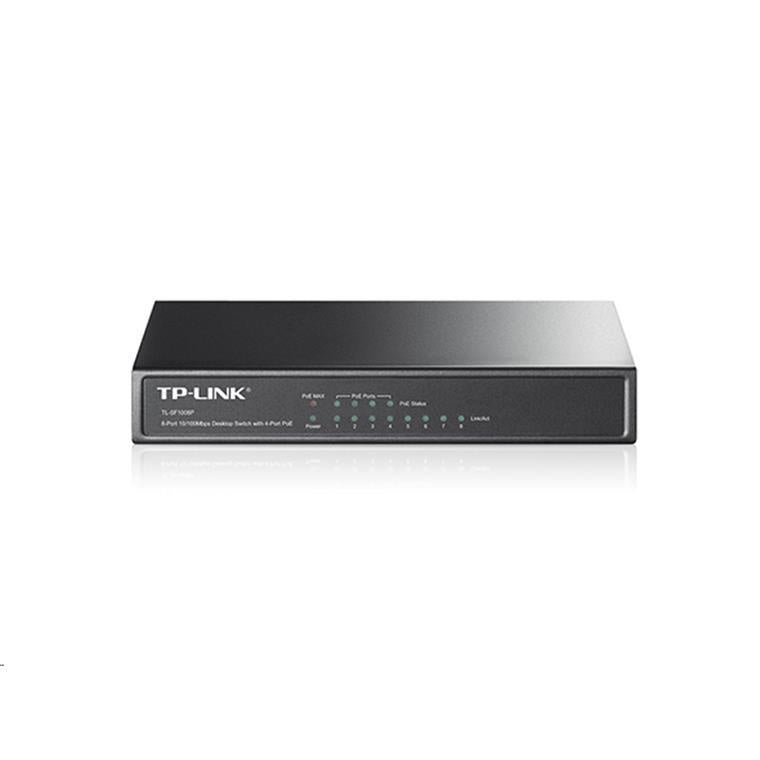

TP-Link TL-SF1008P 8-Port 10/100M Unmanaged PoE Switch 4-Port PoE+ (Max 57W)
TP-Link TL-SF1008P 8-Port 10/100M Unmanaged PoE Switch 4-Port PoE+ (Max 57W)
TP-Link

TP-Link TL-SF1008P 8-Port 10/100M Unmanaged PoE Switch 4-Port PoE+ (Max 57W)

SKU: TL-SF1008P ● In Stock
$68.85
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Ubiquiti

Ubiquiti Professional-grade 32-port Layer 3

$6,013.90
inc GST ▲ +GST
CTC

CTC Union Compact size, Non-managed 5-port 10/100-TX Copper Switch, minus 10 C to 60 C

Switching100M
$110.63
inc GST ▲ +GST
Netonix

Netonix WS-12-250-AC WS-12-250-AC Managed PoE Switch

SwitchingPoE
$780.24$828.74
inc GST ▲ +GST
EDIMAX

EDIMAX GP-101ET - IEEE 802.3at Gigabit PoE+ Extender Power & Data to 100m PoE short circuit protection.

$77.38
inc GST ▲ +GST
TP-Link

TL-IES206GPP - TP-Link IES206GPP Omada 6-Port Gigabit Industrial Easy Managed Switch with 3-Port PoE+ and 1-Port PoE++

Access PointWirelessPoE++
$460.86$483.48
inc GST ▲ +GST

Features

http://www.tp-link.com/en/products/details/cat-42_TL-SF1008P.html

  • With four PoE ports, transfers data and power on one single cable
  • Working with IEEE 802.3af compliant PDs, expands home and office network
  • Requires no configuration and installation

Feature:

  • Supports PoE power up to 15.4W for each PoE port
  • Supports PoE power up to 57W for all PoE ports
  • Supports PoE IEEE 802.3af compliant PDs
  • Supports IEEE 802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
  • 2K entry MAC address table of the TL-SF1008P with auto-learning and auto-aging
  • LED indicators for monitoring power, link, activity
  • External power adapter supply

What This Product Does

TL-SF1008P is an 8 10/100Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to ­fix devices such as APs, IP Cameras or IP Phones, etc.

Power over Ethernet

4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).

-Overload Arrangement
TL-SF1008P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 57W, a priority will be arranged among the PoE ports, then the system will cut o- the power of the lowest-priority port.
-Port Priority Function
Priority (port-1=port-2=port-3>port-4):  This function will help to ensure the normal operation of the system, it means Port 4 will be cut off when all total PoE PDs power consumption exceed 57W. For an example, Port 1, 2 and 4 is using 15.4W (maximum power for per port is 15.4W); the system power is 46.2W in total. If there is an additional PD inserted to Port 3 with 12W, and then the system will cut off the power of Port 4 because of the overloaded power, this means Port 1, 2 will use 15.4W, and Port3 will use 12W, no power will be supplied to Port 4.

Easy To Use

TL-SF1008P is easy to install and use. It requires no confi­guration and installation. With desktop design, outstanding performance and quality, the TP-LINK's TL-SF1008P 8-Port 10/100Mbps Desktop Switch with 4-Port PoE is an ideal choice for expanding your home or office network.


Code Model Features
Speed Total Ports PoE PoE+ Power Budget Management SFP
SWHTPL1027 TL-SF1005P 100Mbps 5 4 - 58W No N/A
SWHTPL1011 TL-SF1008P 100Mbps 8 4 - 57W No N/A
SWHTPL1028 TL-SG1005P Gigabit 5 4 - 56W No N/A
SWHTPL1020 TL-SG1008P Gigabit 8 4 - 55W No N/A
SWHTPL1001 TL-SG108PE Gigabit 8 4 - 55W Yes N/A
SWHTPL1012 TL-SG1008PE Gigabit 8 - 8 126W No N/A
SWHTPL1021 TL-SG1016PE Gigabit 16 - 8 110W Yes N/A
SWHTPL2210P T1500G-10PS Gigabit 10 8 - 53W Yes 2
SWHTPL1500 T1500G-10MPS Gigabit 10 - 8 116W Yes 2
NETTPL0028 T2500G-10MPS Gigabit 10 - 8 116W Yes 2
SWHTPL2425 T1600G-28PS Gigabit 28 - 24 180W Yes 4
SWHTPL3425 T2600G-28MPS Gigabit 28 - 24 384W Yes 4
SWHTPL1016 T1600G-52PS Gigabit 52 - 48 384W Yes 4

Specifications

Technical Specifications
