-2%

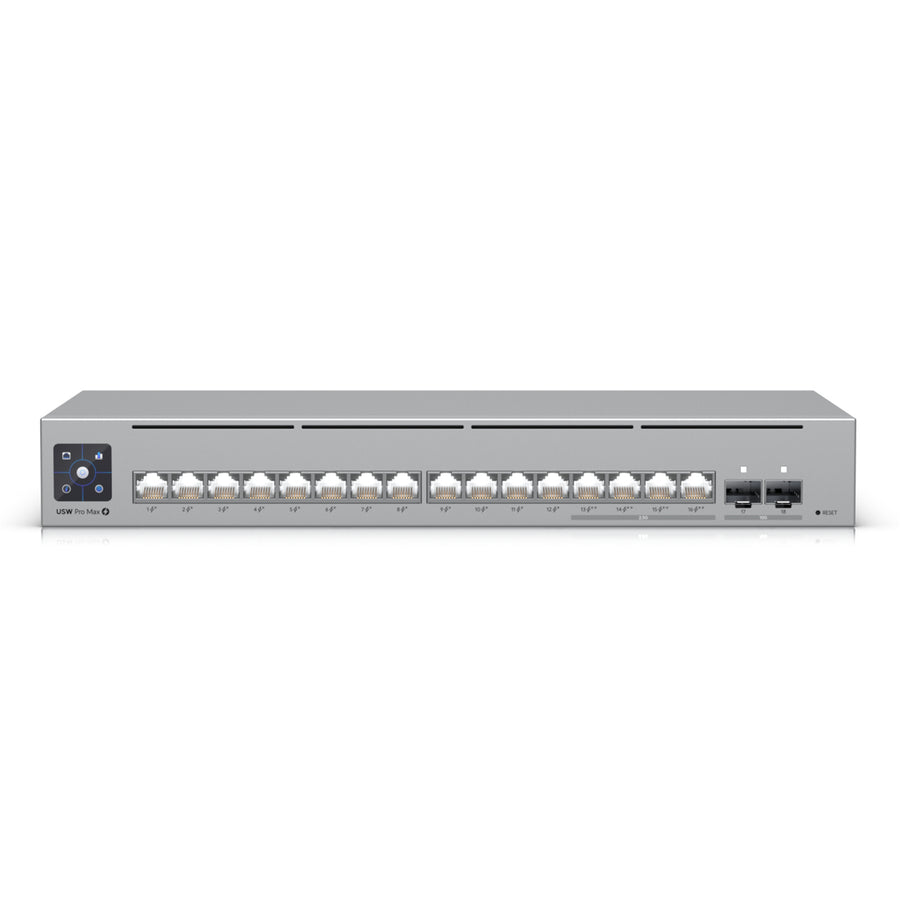

Ubiquiti UniFi USW-Pro-Max-16 18-Port 10G L3 Managed Etherlighting Switch - SFP+ x2, 2.5GbE x4, 1GbE x12
Ubiquiti

Ubiquiti UniFi USW-Pro-Max-16 18-Port 10G L3 Managed Etherlighting Switch - SFP+ x2, 2.5GbE x4, 1GbE x12

SKU: USW-PRO-MAX-16-POE ● In Stock
$885.21$905.13
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Ubiquiti

Ubiquiti Professional-grade 32-port Layer 3

$6,013.90
inc GST ▲ +GST
CTC

CTC Union Compact size, Non-managed 5-port 10/100-TX Copper Switch, minus 10 C to 60 C

Switching100M
$110.63
inc GST ▲ +GST
Netonix

Netonix WS-12-250-AC WS-12-250-AC Managed PoE Switch

SwitchingPoE
$780.24$828.74
inc GST ▲ +GST
EDIMAX

EDIMAX GP-101ET - IEEE 802.3at Gigabit PoE+ Extender Power & Data to 100m PoE short circuit protection.

$77.38
inc GST ▲ +GST
TP-Link

TL-IES206GPP - TP-Link IES206GPP Omada 6-Port Gigabit Industrial Easy Managed Switch with 3-Port PoE+ and 1-Port PoE++

Access PointWirelessPoE++
$460.86$483.48
inc GST ▲ +GST

Features

Ubiquiti UniFi USW Pro Max 16 PoE

Specifications

Technical Specifications

Dimensions 325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7")
Weight 2.1 kg (4.6 lb)
Enclosure material SGCC steel
Management interface Ethernet In-Band
Networking interface (12) GbE RJ45 ports(4) 1/2.5 GbE RJ45 ports(2) 10G SFP+ ports
PoE interface (12) PoE/PoE+ (Pins 1, 2+; 3, 6-)(4) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput 42 Gbps
Switching capacity 84 Gbps
Forwarding rate 62.496 Mpps
Power method DC adapter
Power supply 54V, 210W
Max. power consumption 30W (Excluding PoE output)
Total available PoE 180W
Max. PoE wattage per port by PSE PoE: 15.4WPoE+: 30WPoE++: 60W
Voltage range PoE mode PoE: 44-57VPoE+/PoE++: 50-57V
LCM display (1) 1.3" touchscreen
Button Factory reset
Ambient operating temperature -5 to 40° C (23 to 104° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Layer 2 features IGMP snoopingSTP / RSTP with priorities and port-level disablePort isolationStorm controlVoice VLANPort mirroringLACP port aggregationMulticast / broadcast rate limitingMAC address blockingFlow control802.1X controlJumbo framesProprietary loop protectionDHCP snooping / guardingEgress rate limitLLDP-MEDPort restricted by MACDevice isolation with ACLs
Layer 3 features DHCP for locally-managed networksDHCP relayInter-VLAN routing between networks on same switchStatic routing between local networksNetwork isolation with ACLs
Ethernet LocatingSpeed/linkNative VLAN/network
SFP+ LocatingSpeed/linkNative VLAN/network
UniFi Network Version 8.1.127 and later
