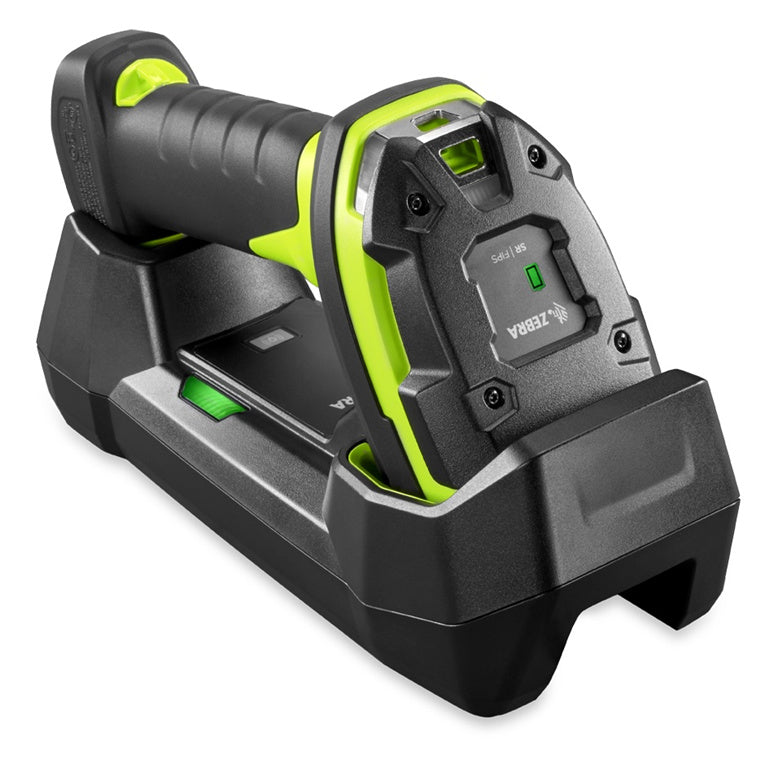

Zebra DS3678-XR3U42A2SVW DS3678-XR RUGGED GREEN VIBRATION MOTOR S

SKU: DS3678-XR3U42A2SVW ● In Stock
$2,400.97
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

You May Also Like

Features

Zebra DS3678-XR3U42A2SVW DS3678-XR RUGGED GREEN VIBRATION MOTOR S

Specifications

Technical Specifications

Dimensions Corded: 7.3 in. H x 3.0 in. W x 5.2 in. D 18.5 cm H x 7.6 cm W x 13.2 cm D Cordless: 7.3 in. H x 3.0 in. W x 5.6 in. D 18.5 cm H x 7.7 cm W x 14.2 cm D
Weight Corded: 10.86 oz./308 g Cordless: 14.46 oz./410 g
Input Voltage Range Host powered: 4.5 VDC min., 5.5 VDC max. External power supply: 11.4 VDC min., 12.6 VDC max.
Operating Current Corded: Near: 360mA (RMS typical) Far: 450mA (RMS typical)
Standby Current Corded: 100 mA (RMS typical)
Color Industrial Green
Supported Host Interfaces USB, RS232, Keyboard Wedge Industrial Ethernet: EtherNet/IP, Profinet, Modbus TCP & Std TCP/IP
Battery PowerPrecision+ 3100 mAh Li-Ion rechargeable battery
FIPS Security Certification and TAA Comp Certified Compliant with FIPS 140-3; Trade Agreement Act Compliant (specific configuration required)
User Indicators Direct decode indicator; LEDs; beeper; vibration
Scans per Full Charge (Cordless) 80,000
Image Capture Basic
Aimer 520 nm laser
Illumination Two warm-white LEDs 2700K
Imager Field of View Near: 42.1° (H) x 27° (V); Far: 14° (H) x 7.9° (V)
Image Sensor Far: 1920 horizontal x 1080 vertical pixels Near: 1280 horizontal x 800 vertical pixels
Minimum Print Contrast 25% minimum reflective difference
Skew/Pitch/Roll Skew: ± 60°; Pitch: ± 60°; Roll: ± 360°
1D Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)
2D PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes
Digimarc Digital watermark technology
IUID Supports IUID parsing, the ability to read and separate IUID fields per application requirements
Symbology/Resolution Near/Far
100% UPCA: 13 mil 1.3 in. to 12.1 ft./3.3 cm to 3.7 m
Code 128: 10 mil 2.2 in. to 8.5 ft./5.6 cm to 2.6 m
Code 128: 15 mil 2.1 in. to 13.6 ft./5.3 cm to 4.1 m
Code 128: 40 mil *[4] to 34.6 ft./*[4] to 10.5 m
Code 128: 100 mil *[4] to 87.6 ft./*[4] to 26.7 m
Code 39: 5 mil 1.3 in. to 4.7 ft./3.3 cm to 1.4 m
Code 39: 7.5 mil 1.3 in. to 7.4 ft./3.3 cm to 2.2 m
Code 39: 20 mil 2.0 in. to 18.1 ft./5.1 cm to 5.5 m
Code 39: 40 mil *[4] to 41.1 ft./*[4] to 12.5 m
Code 39: 55 mil Reflective *[4] to 61.1 ft./*[4] to 18.6 m
Code 39: 100 mil *[4] to 105.1 ft./*[4] to 32.0 m
Data Matrix: 10 mil 1.3 in. to 5.5 ft./3.3 cm to 1.7 m
Data Matrix: 100 mil *[4] to 52.1 ft./*[4] to 15.9 m
Data Matrix: 200 mil *[4] to 100.0 ft./*[4] to 30.5 m
QR Code: 10 mil 1.3 in. to 4.6 ft./3.3 cm to 1.4 m
Bluetooth Radio Bluetooth Class 1, Version 4.0 (LE), serial port (SPP) and HID profiles
Data Rate 3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth 1 Mbit/s (0.27 Mbit/s) for Low Energy
Radio Range Direct line of sight in open air: Class 1: Minimum 300 ft. (100.0 m); Class 2: Minimum 30 ft. (10.0 m)
Operating Temp. Corded: -22° F to 122° F/-30° C to 50° C Cordless: -4° F to 122° F/-20° C to 50° C
Storage Temp. -40° F to 158° F/-40° C to 70° C
Humidity 5% to 95% non-condensing
Drop Specification DS36X8: Withstands multiple 10.0 ft/3.0 m drops to concrete at room temperature Cordless: Withstands multiple 8.0 ft/2.4 m drops to concrete at -20° C to 50° C Corded: Withstands m
Tumble Specification 7500 3.3 ft./1.0 m tumbles
Sealing Scanner: IP65 and IP68 per applicable IEC sealing specifications FLB cradle: IP65
ESD Per EN61000-4-2, ±25 KV air discharge, ±10 KV direct discharge, ±10 KV indirect discharge
Ambient Light Immunity 0 to 10,000 Foot Candles/0 to 107639 Lux (direct sunlight)
Environmental RoHS EN 50581: 2012
Electrical Safety EN 62368-1:2014/AC:2015 EN 62368-1:2014/A11:2017 IC 62368-1 (Ed.2) UL 60950-1, second edition, CAN/CSA-C22.2 N
Laser/LED Safety 21CFR1040.10 (Laser) IC 60825-1:2014 (Ed.3.0): EN 60825-1:2014 (Laser) EN 60825-1:2014/A11:2021 IC 62471:2006 (Ed.1.0): EN 62471:2008 (LED)
EMI/RF EN 55032:2015/A11:2020 (Class B) EN 55035:2017/A11:2020 EN 61000-6-2:2005/AC:2005 EN 61000-3-2:2014 (Class A) EN 61000-3-2:2019 (Class A) EN 61000-3-3:2013 EN 61000-3-3:2013/A1:201
Warranty 12 months
