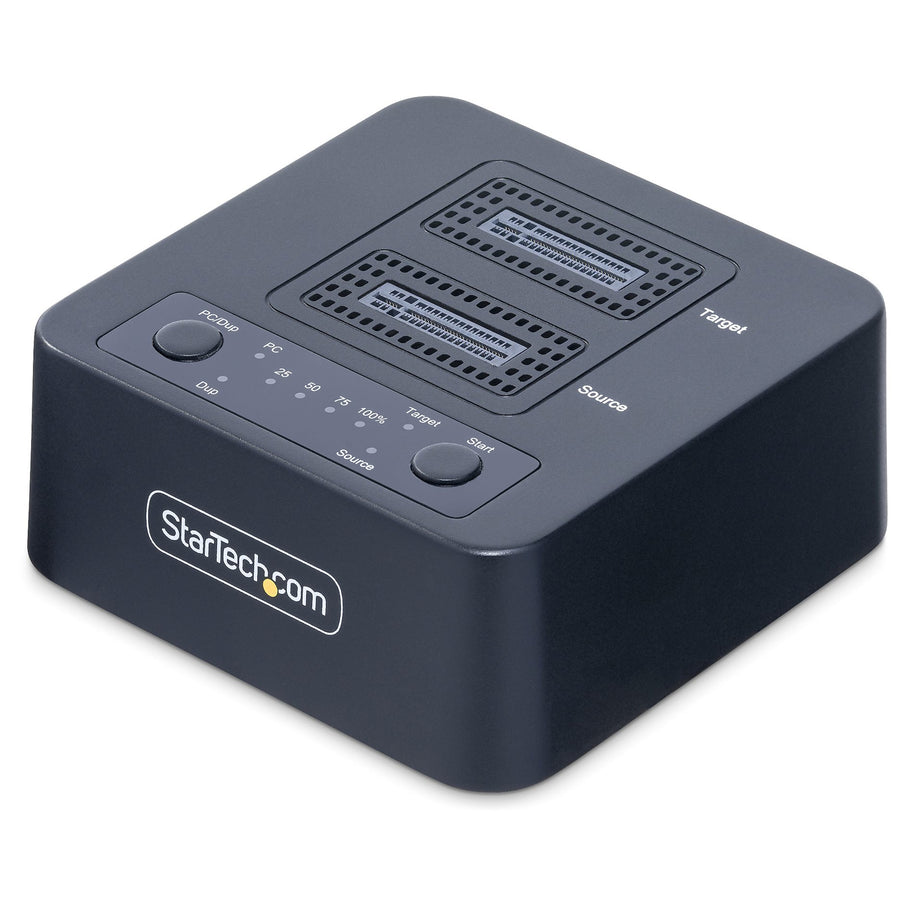

StarTech.com M2-HDD-DUPLICATOR-N1 - 1:1 M.2 NVMe Drive Duplicator Dock
Features
This M.2 NVMe drive duplicator with a USB 3.2 Gen2x2 (20Gbps) host port offers high-speed duplication capabilities of up to 90GB per minute, providing efficient and fast cloning of storage devices.
High-Speed M.2 NVMe Duplication
Clone or duplicate M.2 NVMe solid-state drives (SSDs) without the need for a computer. This device requires no drivers or software and offers high-performance sector-by-sector duplication rates of up to 90GBpm and works with any file format, copying the entire drive.
NVMe Drive Access over USB 3.2 Gen2x2
The USB 20Gbps host connection enables external access and storage functionality for M.2 NVMe drives, facilitating data transfer between different computers without the need for internal drive installation.
Compact and User-Friendly
The device has a small form factor, requiring minimal desktop or storage space. LEDs display progress, status, and power, while an audible buzzer confirms duplication completion. The device features active and passive cooling to ensure optimal performance.
The top-loading (toaster-style) design accommodates all PCIe M.2 (M-Key) drives, including those with pre-installed heat sinks. The device supports 4Kn sector size. Please note that the target disk must be equal to or larger than the source disk.
Specifications
Technical Specifications
| Color | Black |
|---|---|
| Product Height | 4.4 cm [1.7 in] |
| Product Length | 7.7 cm [3.0 in] |
| Weight of Product | 129.0 g [4.6 oz] |
| Product Width | 7.7 cm [3.0 in] |
| Material | Plastic |
| Cable Length | 100 cm [39.4 in] |
| Drive Connectors | 2 - M.2 (NVMe, M-Key, PCIe x4) |
| Host Connectors | 1 - USB Type-C (24 pin, Gen 2x2, 20Gbps) |
| Other Interface(s) | 1 - Barrel Power Connector (Size M, OD:5.50, ID: 2.10) |
| Fan(s) | Yes |
| Fans | 1 - 60 mm |
| Number of Drives | 2 |
| Drive Size | 22 mm - M.2 NVMe |
| Compatible Drive Types | M.2 (PCIe, NVMe, M-Key, NGFF) |
| Drive Installation | Removable |
| Supported Drive Height(s) | 223022422260228022110 |
| Chipset ID | JMS586U |
| 4 - Progress LEDs | Indicates 25%, 50%, 75%, and 100% progress during the duplication process |
| 2 - Drive LEDs: | Solid Blue: Indicates the M.2 Drive is detectedFlashing Red: There is an error reading the M.2 Drive or the M.2 Drive was removed during duplicationSolid Purple: Indicates the Target M.2 Drive is too small to duplicate to |
| 2 - Mode LEDs | Solid Green: PC ModeSolid Blue: Duplicator Mode |
| Duplication Modes | Sector by Sector (Whole Drive) |
| Duplication Speed | 90GBpm |
| Hot Swap Capability | No |
| MTBF | 50,000 Hours |
| Power Source | AC Adapter Included |
| Input Voltage | 100 - 240 AC |
| Input Current | 0.6A |
| Output Voltage | 12V DC |
| Output Current | 2A |
| Center Tip Polarity | Positive |
| Plug Type | M |
| Power Consumption (In Watts) | 0.1W |
| OS Compatibility | OS Independent - No Drivers or Software Required |
| Operating Temperature | 5°C to 55°C (41°F to 131°F) |
| Storage Temperature | -20°C to 55°C (-4°F to 131°F) |
| Humidity | 20% ~ 80% RH |
| Included in Package | 1 - M.2 Drive Duplicator Dock1 - 3.3ft (1m) USB-C to USB-C Cable1 - 3.3ft (1m) USB-A to USB-C Cable1 - Universal Power Adapter (NA/EU/UK/ANZ)1 - Quick-Start Guide |
| Brand | StarTech.com |
|---|---|
| Product Type | PC Peripherals > Drive Enclosures & Docks |
| Weight | 0.204 kg |
| Warranty |
|---|
