StarTech.com
StarTech.com VGASPL1VV VGA Splitter Cable - 30cm
$24.45
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features
Mirror the output from a VGA source to two VGA monitors
- No power adapter required
- Split a single VGA signal into two

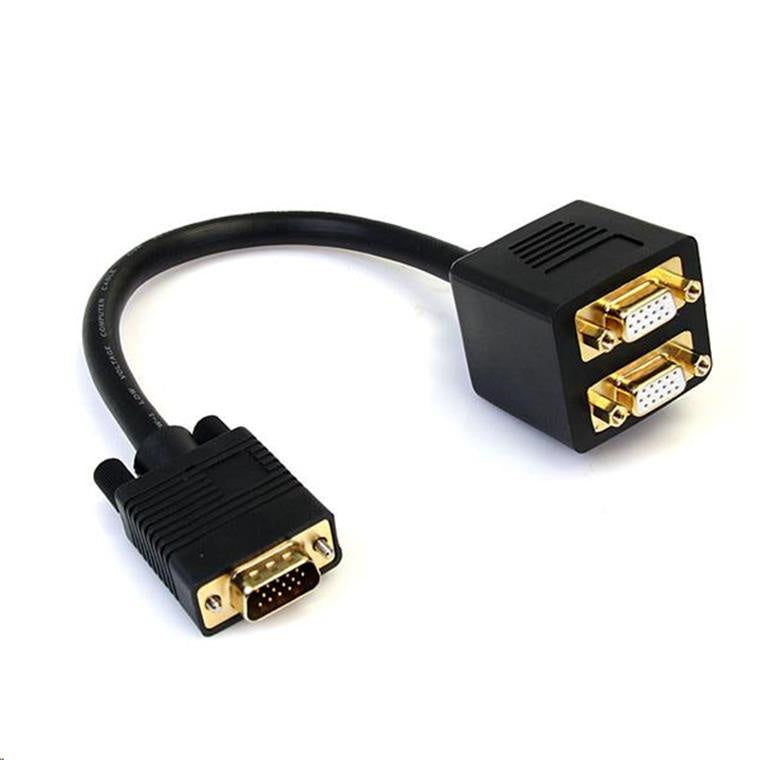

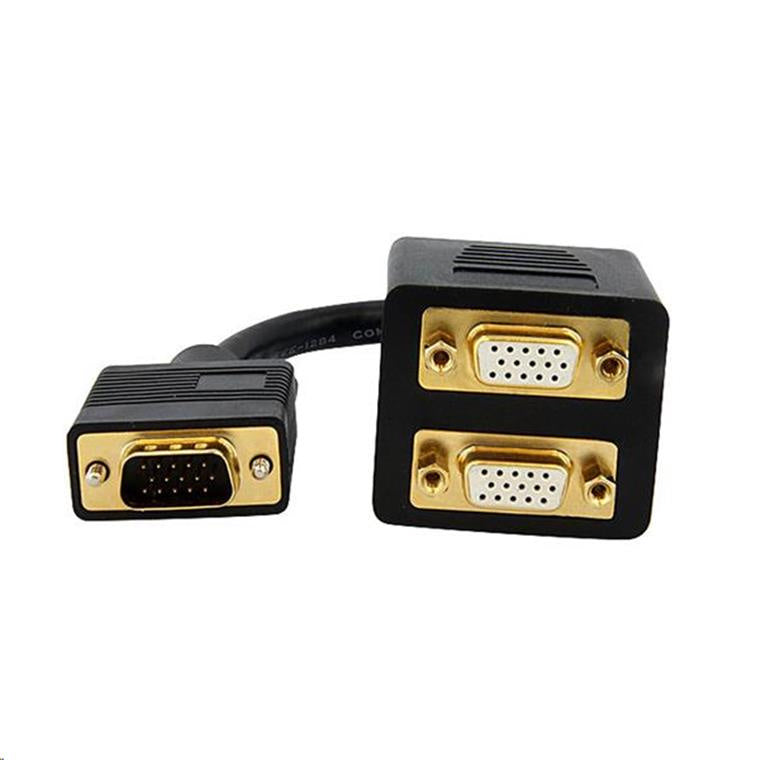

This VGASPL1VV 1-foot VGA video splitter cable lets you connect two VGA displays to a single VGA video source.
A cost-effective solution for dual VGA monitor configurations, this high-quality splitter cable is backed by StarTech.com's Lifetime Warranty.
Applications
- Drive two displays from one source using just a cable
- Easily enable one VGA signal to be connected to two displays
The StarTech.com Advantage
- Split your VGA signal to two monitors without a separate splitter box
Specifications
Technical Specifications
| Connector A | 1 - VGA (15 pin, High Density D-Sub) |
|---|---|
| Connector B | 2 - VGA (15 pin, High Density D-Sub) |
| Number of Conductors | 15 |
| Connector Plating | Gold |
| Cable Jacket Material | PVC - Polyvinyl Chloride |
| Cable Shield Material | Aluminum-Mylar Foil with Braid |
| Fire Rating | CMG Rated (General Purpose) |
| Package Height | 1.7 in [4.4 cm] |
| Package Length | 6.3 in [16.0 cm] |
| Shipping (Package) Weight | 5.6 oz [158.0 g] |
| Package Width | 5.0 in [12.6 cm] |
| Package Quantity | 1 |
| Maximum Digital Resolutions | 2048×1536 @ 85Hz |
| Weight of Product | 5.6 oz [159.0 g] |
| Product Width | 1.6 in [4.1 cm] |
| Product Height | 1.5 in [3.7 cm] |
| Color | Black |
| Wire Gauge | 28 AWG |
| Max Connector Dimension | 1.6 in [41 mm] |
| Cable Length | 8.2 in [20.8 cm] |
| Cable OD | 0.4 in [9.0 mm] |
| Product Length | 12.3 in [31.2 cm] |
| Note | This product will split your video signal to deliver two identical images of the same resolution. It cannot be used to span an image across two displays, or to show different images on each display. |
| Included in Package | 1 - 1 ft VGA to 2x VGA Video Splitter Cable - M/F |
| Brand | StarTech.com |
|---|---|
| Product Type | PC Peripherals > Cables |
| Weight | 0.257 kg |
| Warranty |
|---|
Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
Shipping Information
- Free NZ-wide shipping on orders over $299
- Standard delivery 2–5 business days
- Rural delivery may take an additional 1–2 days
- Same-day dispatch for orders placed before 2pm (weekdays)
Returns Policy
- 7-day returns on unused items in original packaging
- Faulty or damaged products covered under warranty
- Contact our support team to initiate a return
