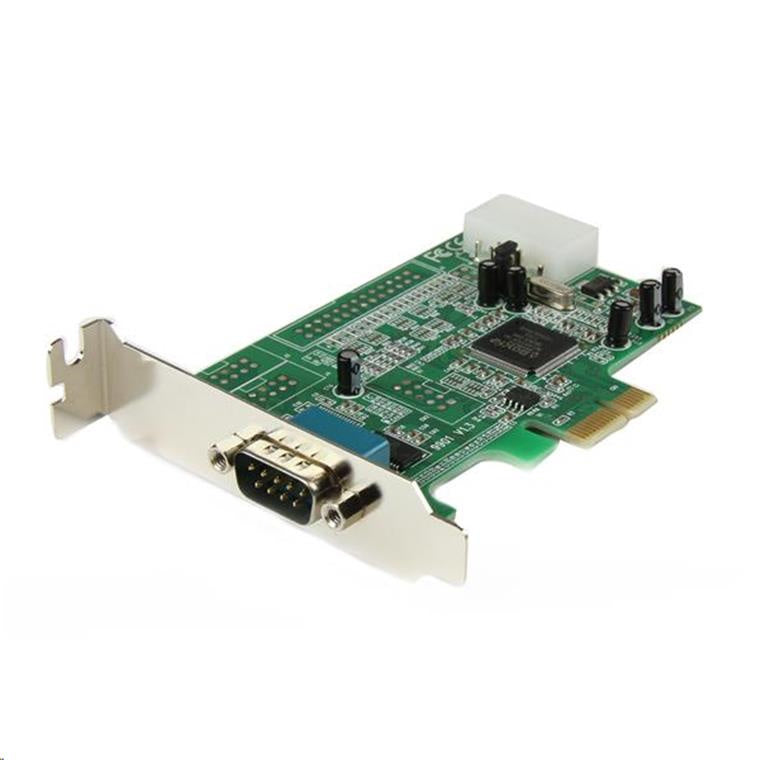

StarTech.com PEX1S553LP - 1 Port PCI Express Serial Card LP
Features
1 Port Low Profile Native RS232 PCI Express Serial Card with 16550 UART
The PEX1S553LP PCI Express Serial Card turns a PCI Express slot into an RS232 (DB9) serial connection. The card is constructed using a native single chip design that lets you harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge chip serial cards. The PCI Express RS232 Serial Adapter Card is compatible with a broad range of operating systems, including Windows® 2000/XP/2003/Vista™/Windows 7/Server 2008 R2 (32 and 64 bit), Linux Kernel 2.6.11 and up, and ships with a low profile/half-height bracket installed, but includes an optional full profile bracket that lets you add a serial port to virtually any computer (regardless of the case form factor). This product is a replacement for our PEX1S552LP card. Backed by a StarTech.com Lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
- Native single-Chip, single lane PCI Express; 48% less cpu load, and increased performance
- Pre-configured for low profile/half-height systems but includes a full profile bracket for versatility
- Easy to install and use with full step-by-step instructions saving time and hassle
Specifications
Technical Specifications
| Bus Type | PCI Express |
|---|---|
| Card Type | Low Profile (SP bracket incl.) |
| Chipset ID | ASIX/MosChip - MCS9922CV-AA |
| Interface | Serial |
| Port Style | Integrated on Card |
| Ports | 1 |
| FIFO | 128 Bytes |
| Max Baud Rate | 460.8 Kbps |
| Serial Protocol | RS-232 |
| Connector Type(s) | 1 - PCI Express x1 Male |
| External Ports | 1 - DB-9 (9 pin, D-Sub) Male |
| Internal Ports | 1 - LP4 (4 pin, Molex Large Drive Power) Male |
| OS Compatibility | Windows® DOS, 95, 98SE, 2000, CE 5.0/6.0, Embedded System 2009, POS Ready 2009, XP Embedded, XP, Vista, 7, 8, 8.1, 10Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016Mac OS X® 10.4 to 10.10Linux kernel 2.6.x to 4.4.x LTS Versions only |
| Humidity | 5~85% RH |
| Operating Temperature | -10°C to 80°C (14°F to 176°F) |
| Storage Temperature | -20°C to 100°C (-4°F to 212°F) |
| Included Items | 1 - 1 Port PCI-Express Serial Card1 - Full Profile Bracket1 - Driver CD1 - Instruction Manual |
| Brand | StarTech.com |
|---|---|
| Product Type | PC Parts > IO, SCSI, IDE Cards |
| Weight | 0.059 kg |
| Warranty |
|---|
