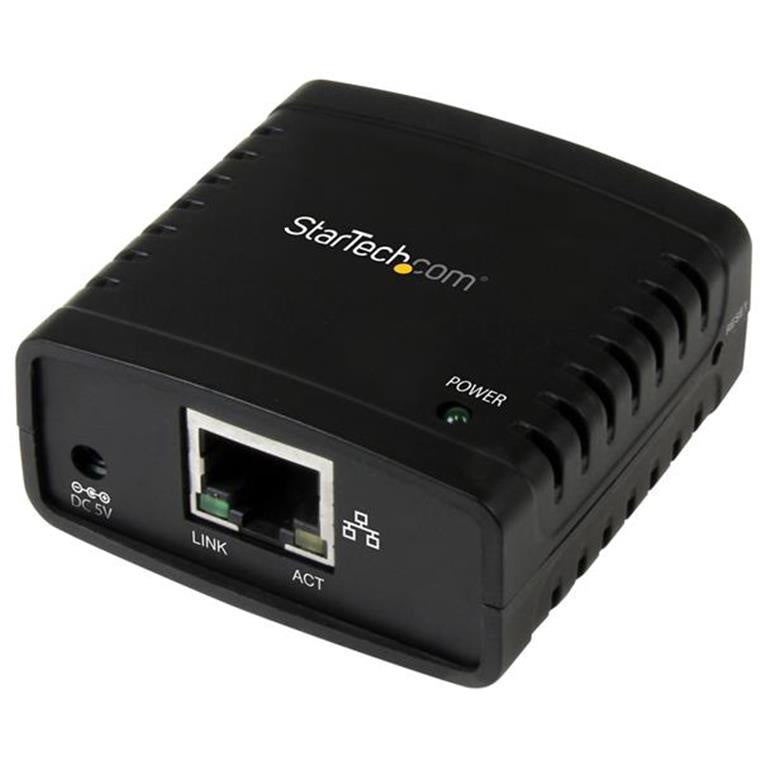

StarTech.com PM1115U2 - 10/100Mbps USB LPR Print Server

SKU: PM1115U2 ● In Stock
$115.64$116.41
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

Features

Share a standard USB printer with multiple users over an Ethernet network

- Wired Network USB Print Server: Connect a single USB 2.0 printer to a wired Ethernet LAN (RJ45); 10Base-T, 100Base-TX auto-sensing to ensure a reliable connection, letting you print from any network computer, across the office or over the Internet
- Manual Network Setup Required: Configuration via web interface (static IP or DHCP) using LPR queue "LP1"; Not plug-and-play, requires intermediate network knowledge for installation; Access our online FAQs for additional helpful tips and instructions
- USB Printer Compatibility: Works with most USB 2.0 printers using standard drivers; Not compatible with USB hubs, multi-function printers with proprietary drivers, or printers requiring full bi-directional communication
- Compatibility: The USB to Ethernet print server is USB 2.0 compliant and works with macOS and Windows; It also supports LPR network printing and Bonjour Print Services for broad compatibility; Included software is compatible with Windows only
- Print from Anywhere: Print from any computer connected to the Ethernet; This print server doesn't require a wired connection to a computer, however it must be connected to your networking device (eg. router or switch) with the included RJ45 network cable

This palm-sized print server makes it easy to share a USB printer with users on your network. It's the ideal solution for home or small office networks.

Reliable, cost-efficient network printing

Enjoy cost-efficient network printing for multiple users. The USB 10/100 Mbps print server lets you share one USB printer with multiple users on your network, instead of having to buy separate printers for each individual workstation.

Place your shared printer in a convenient location

With web-based management, you can set up and monitor the printer server through a web browser, so you can place your printer at any convenient shared location - there's no need to put your printer next to your computer. You can send print jobs to another user in your home or office, or even to a printer in another country.

Easy to use and install

Compact and lightweight, the print server is easy to install with its straightforward installation wizards and remote web-based management. You simply use a USB cable to connect the print server to your printer's USB port, then use an RJ45 networking cable to connect it to the rest of your network.

Supports LPR network printing and Bonjour Print Services

The printer server supports the Line Printer Remote (LPR) protocol which enables Internet printing. It also supports Bonjour Print Services, making it easier to find and configure printers on your network.

Applications

- Allows multiple users on an Ethernet network to share one USB printer
- Provides a reliable network printing solution for home, small office, educational and government institutions and any other environments that require printer sharing

Specifications

Technical Specifications

External Ports 1 - RJ-451 - USB 2.0 Type-A (4 pin, 480Mbps)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -10°C to 70°C (14°F to 158°F)
Humidity 10% ~ 90% RH
Ports 1
Industry Standards Compliant with IEEE 802.3 10BASE-T and IEEE 802.3u 100BASE-TX
Chipset ID EST - EST2862B
LED Indicators 1 - Power1 - Link1 - Activity
Package Height 2.1 in [5.4 cm]
Package Length 8.6 in [21.8 cm]
Shipping (Package) Weight 10.8 oz [306.0 g]
Package Width 5.9 in [15.1 cm]
Package Quantity 1
Maximum Data Transfer Rate 100 Mbps
Max Distance 100m [328ft]
Remote Management Ability Yes
Auto MDIX Yes
Full Duplex Support Yes
Jumbo Frame Support 9K max.
Supported Protocols LPR
Color Black
Material Plastic
Product Length 2.1 in [53 mm]
Product Width 2.1 in [5.4 cm]
Product Height 0.9 in [2.3 cm]
Weight of Product 2.2 oz [62 g]
Power Source AC Adapter Included
Input Voltage 100 - 240 AC
Input Current 0.25
Output Voltage 5 DC
Output Current 1A
Center Tip Polarity Positive
Plug Type H
Power Consumption (In Watts) 2
OS Compatibility Windows® XP, 7, 8 / RT, 10, 11Windows Server® 2003, 2008 R2, 2012Mac OS® 10.6 to 10.10
System and Cable Requirements Printer with USB connectionUSB printer cable not included
Note OS Compatibility refers to the included software only - the Print Server itself can be used without software on most platforms that support network printing
Included in Package 1 - USB 2.0 network LPR print server1 - universal power adapter (NA/JP, UK, EU, ANZ)1 - RJ45 network cable1 - quick start guide1 - software CD
