L-com

L-com ANT-152 - 2.4 GHz 10dBi Dual Pol 802.11n Panel Antenna

SKU: ANT-152 ● In Stock
$46.95
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

Features

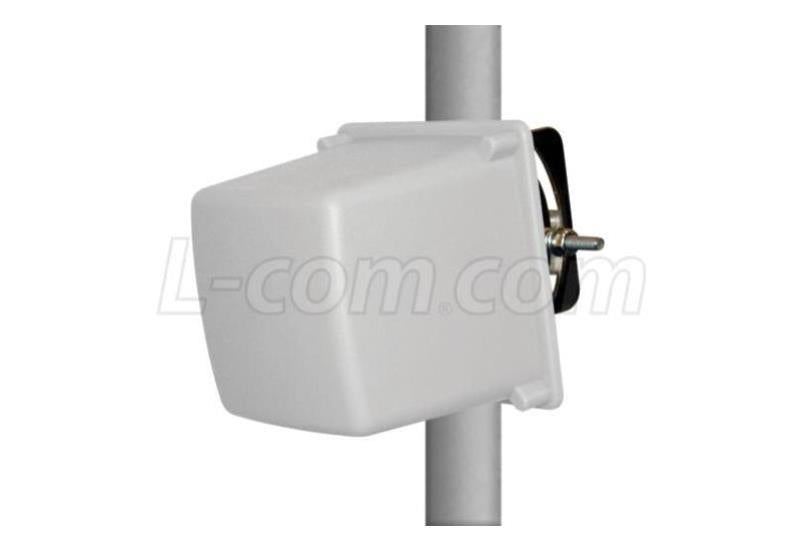

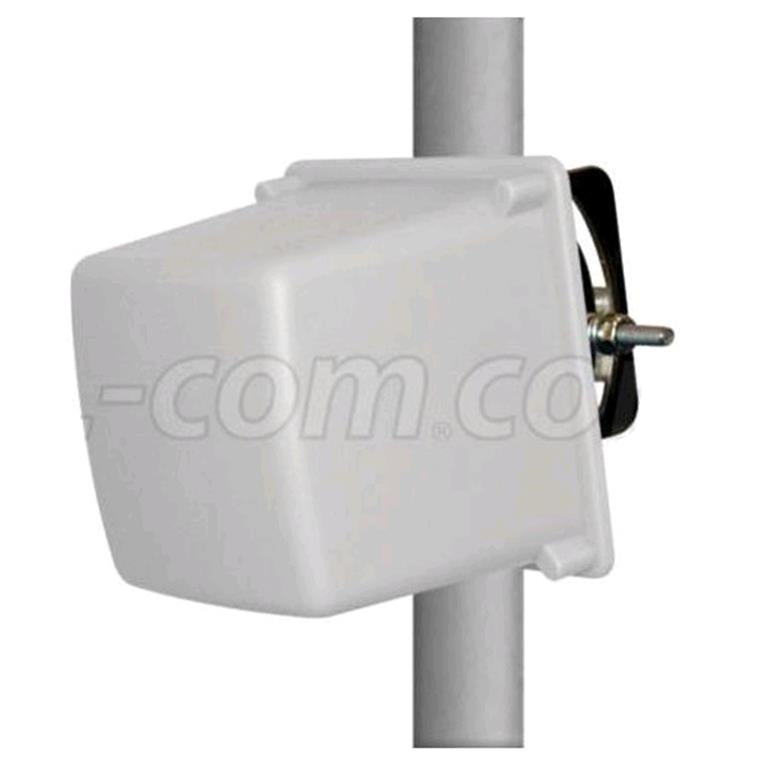

This very compact panel 2.4 GHz multiple-input and multiple-output (MIMO) patch antenna is designed to operate with many manufacturers' enterprise-class 802.11n MIMO access points (APs). The antenna features two integrated 2.4 GHz patch antennas in one enclosure, making it an ideal and aesthetically pleasing antenna to support demanding indoor or outdoor applications in next generation IEEE 802.11n wireless communication systems. Great for use with MikroTik and Ubiquiti High Power 802.11n outdoor wireless systems. Designed for all weather operation, the HG2412DP features drain holes in the radome help prevent moisture build-up inside the antenna. The antenna is supplied with a 30 degree tilt and swivel mast mount kit. This allows the antenna to be positioned for optimal performance. It can be adjusted up or down from 0° to 30°. It can be mounted to a 1" (25.4 mm) to 1.7" (43.2 mm) dia. masts.

Specifications

Technical Specifications

Frequency Range 2400-2500MHz
Gain 10dBi
Polarisation Vertical or Horizontal
Vertical Beamwidth 55deg
Horizontal Beamwidth 55deg
Connector Type 2x N-Type Female
Dimensions 104x104x90mm
Pole Mount Diameter 25-43mm
