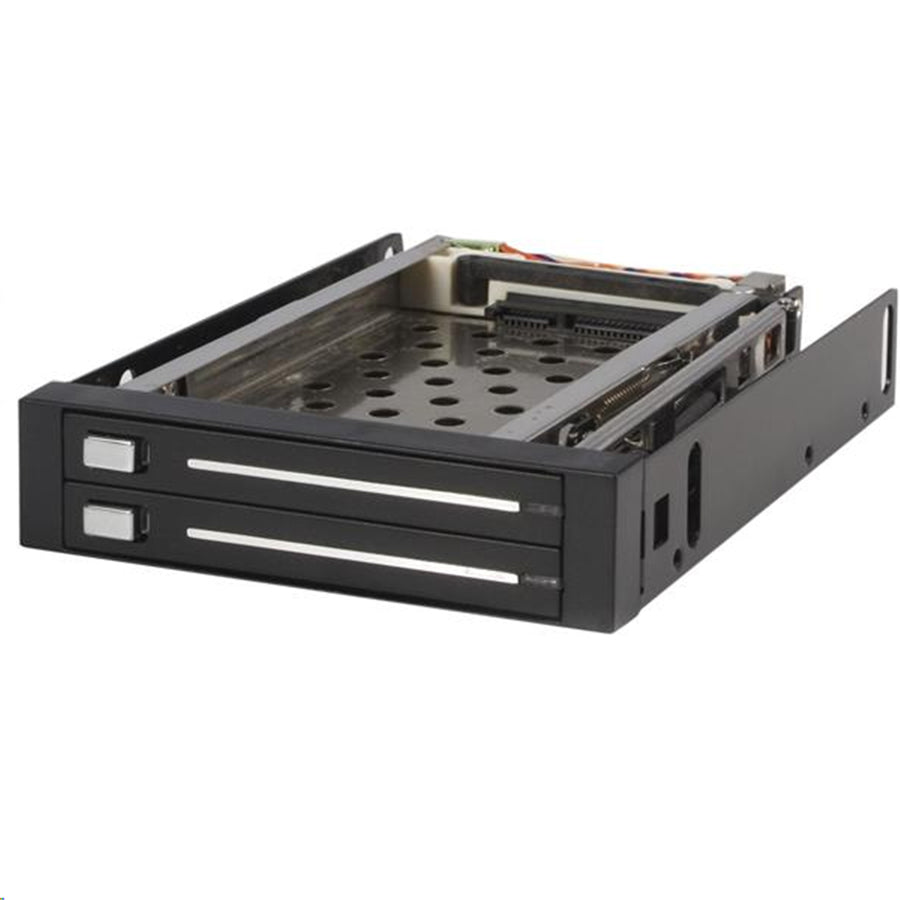

StarTech.com HSB220SAT25B - 2 Drive 2.5in Trayless SATA Mobile Rack
Features
This 3.5in SATA hard drive hot-swap bay allows you to install two 2.5in SATA hard drives (HDD) or solid state drives (SSD) in an available/unused 3.5in floppy drive bay. Featuring a convenient "no mounting required /easy eject" feature (like a tape cartridge or floppy disk), the hard drive hot swap bay doesn't require that the drives be installed in a tray - making it the ideal solution for quick and easy drive removals and insertions as part of a system building process, or integration into rackmount systems or industrial environments. To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller. Also a perfect addition for operating system image deployment and any task that requires being able to quickly access large volumes of data on the fly, the hot swap bay provides everything you need to expedite important projects while maintaining a reliable storage solution. With support for SATA HDD speeds up to 6.0 Gbps, this backplane is fully compatible with RAID installations to ensure maximum performance and versatility for enhanced storage applications.
The StarTech.com Advantage
- Maximize performance, with file transfer speeds up to 6Gbps when paired with SATA III HDD and controller
- Quickly and easily install or remove HDD/SSD without having to open the chassis with the innovative trayless design
- Aluminum construction and 50,000+ insertion rating ensures longevity from both the HDD/SSD and bay
Specifications
Technical Specifications
| Compatible Drive Types | SATA |
|---|---|
| Drive Size | 2.5in |
| Key Lock | No |
| Number of Drives | 2 |
| Hot Swap Capability | Yes |
| Max Drive Capacity | Tested up to 500GB per drive |
| Type and Rate | SATA III (6 Gbps) |
| Connector Type(s) | 2 - SATA (7 pin, Data) Receptacle2 - SATA Power (15 pin) Receptacle2 - SP4 (4 pin, Small Drive Power) Male |
| Drive Connectors | 2 - SATA (7 pin, Data) Receptacle2 - SATA Power (15 pin) Receptacle |
| Host Connectors | 2 - SATA (7 pin, Data) Plug2 - SATA Power (15 pin) Plug |
| OS Compatibility | OS independent; No software or drivers required |
| LED Indicators | 1 - Power/Drive Activity |
| Color | Black |
| Enclosure Type | Aluminum |
| Included in Package | 1 - dual SATA hot-swap bay2 - LP4 to SATA and LED adapter cable1 - 15-pin SATA power and LED Y cable2 - 7-pin SATA data cable2 - hard drive protector film1 - screw kit1 - instruction manual |
| Brand | StarTech.com |
|---|---|
| Product Type | PC Peripherals > Drive Enclosures & Docks |
| Weight | 0.218 kg |
| Warranty |
|---|
