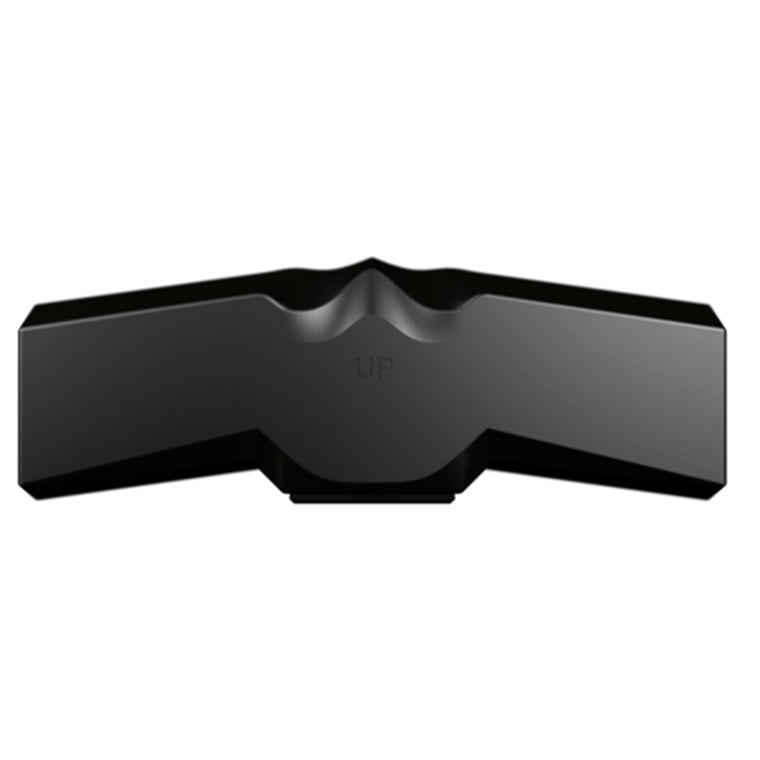

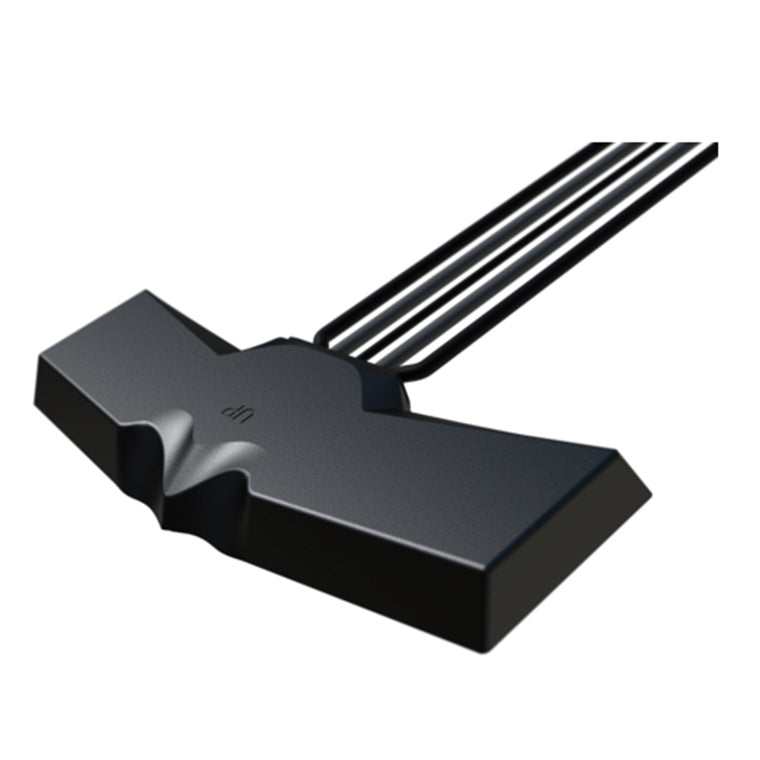

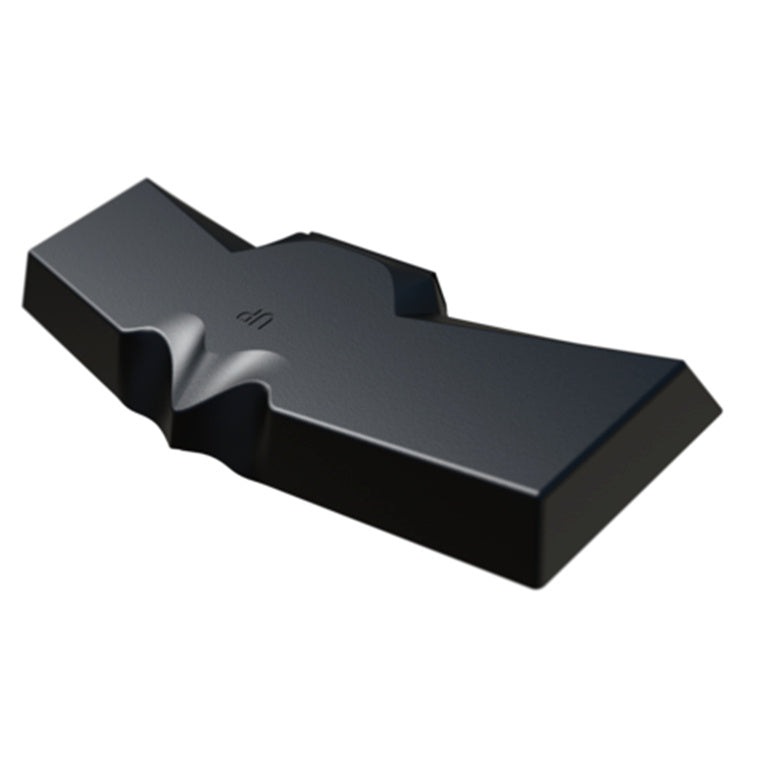

Panorama Antennas BATM-7-60 - 2-in-1 2x2 MiMo 5G LTE Covert BAT Antenna w/ 3m cables
You May Also Like
RBwAPG-60adkit - MikroTik Wireless Wire 1Gbps 60GHz Wireless Bridge Kit
RBLHGG-60adkitr2 - MikroTik Wireless Wire Dish Preconfigured 60GHz Pair
Cambium Networks C050910C801A - Cambium ePMP 5 GHz Force 300-25 High Gain Radio
Features
2-in-1 2x2 MiMo 5G LTE Covert BAT Antenna w/ 3m cables
Compatible with Cradlepoint IBR900 / IBR1700 series routers
The Panorama BATG range is designed for Telematics applications requiring high speed data with MiMo 4G / 3.5GHz 5G and fallback 3G/2G support along with optional positioning through GPS/GNSS, and optional dual band 2.4/5.0GHz Wifi.
The isolated dual 4G/3G/2G antennas cover 698-960/1710-6000MHz and the efficient element design ensures a high first time connection rate and an ongoing, robust communications link even in many low coverage areas.
The antenna is designed to be mounted on or under a vehicle dashboard but can be mounted on any non-conductive surface. The BAT range is supplied with up to five integrated low loss cables which are flame retardant and meet the requirements of UN ECE 118.
- Mount on or under dashboard
- MiMo 3.5GHz 5G & 4G/3G/2G functionality
- Optional SiSo or MiMo WiFi
- GPS/GNSS 26dB LNA
Specifications
Technical Specifications
| LTE Band | 4G/3G/2G |
|---|---|
| Global Positioning | GPS/GNSS |
| Wifi Frequencies | 2.4/5.0GHz |
| Typical VSWR | <2.5:1 |
| WiFi MiMo | Optional 2x2; 2x2 |
| Max Input Power (W) | 20 |
| Pattern | Omni-directional |
| LNA Gain (dB) | 26 |
| Available Colours | Black |
| Length (mm) | 214 |
| Width (mm) | 77 |
| Height (mm) | 16.5 |
| Operating Temperature | -30 / + 70°C |
| Mounting Method | Adhesive Pad |
| Flame Retardancy | UN ECE 118 Compliant |
| Industry Approvals | E11 |
| Brand | Panorama Antennas |
|---|---|
| Product Type | Networking > Network Accessories > Antennas |
| Weight | 0.5 kg |
| Warranty |
|---|
