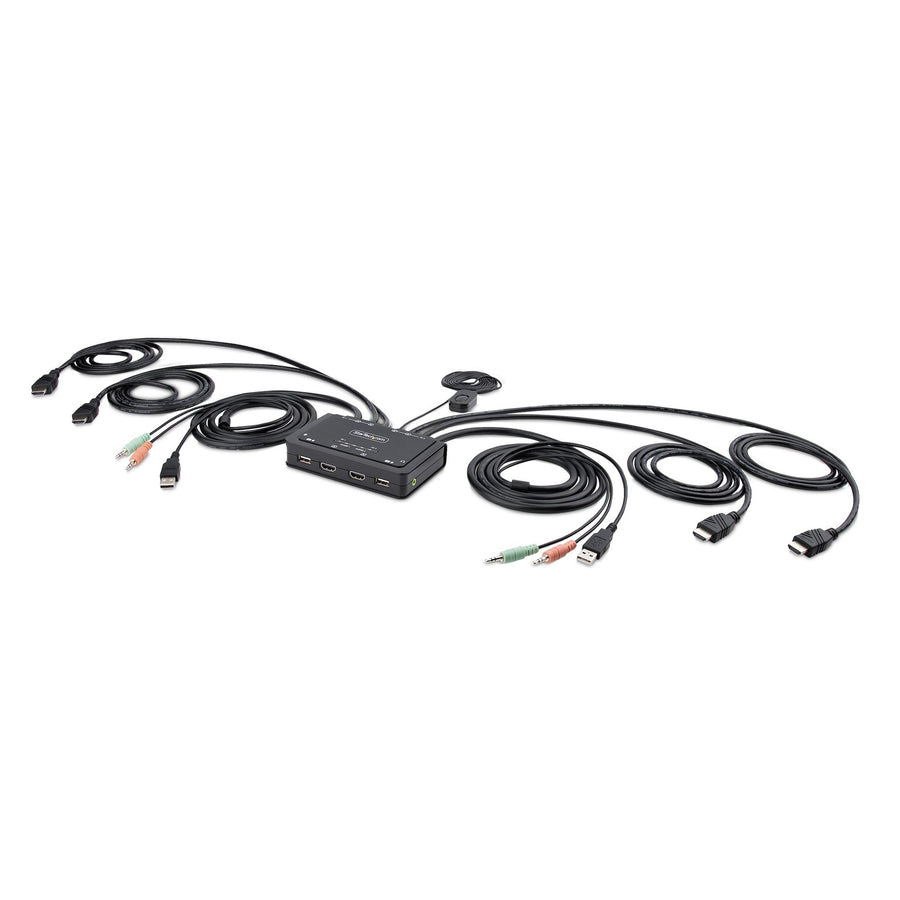

StarTech.com C2-DH46-UA2-CBL-KVM - 2-Port Dual-Monitor Cable KVM Switch
Features
This Dual-Monitor KVM Switch enables users to switch between two USB-A and HDMI-enabled desktops, sharing dual-4K 60Hz HDMI monitors, a keyboard and mouse, and audio input/output devices.
Hassle-Free Setup
The KVM switch is bus powered and features built-in dual-HDMI, USB-A, and 3.5mm Audio Input/Output cables. This ensures compatibility and performance between the KVM switch, monitors, and peripherals - without the need to select and purchase the cables required for those connections.
Compatibility
The 2-port KVM switch is compatible with all operating systems, including Windows, macOS, ChromeOS, and Linux. The KVM works with all hardware platforms including Intel, AMD, and Apple M1/M2.
Intuitive Control
The KVM switch features two options to switch between hosts - a remote push button and hotkey commands, using the downloadable software. The remote push button includes a 1.5m cable for optimal placement in the setup. Independent audio switching can be achieved through the software, utilizing keyboard shortcuts (i.e., hotkeys), ensuring uninterrupted audio when switching between host devices.
DUAL 4K 60HZ MONITOR KVM SWITCH
Enables switching between two USB-A and HDMI-enabled desktops to share a mouse, keyboard, audio, and dual-4K 60Hz HDMI displays
READY-TO-USE
Small form factor, integrated cables, and no external power adapter enable rapid deployment; Bus-powered KVM switch features integrated 5ft/1.5m host cables to allow for extended reach, reducing port and connector strain
SWITCHING OPTIONS
Remote Push Button and Hotkey Commands enable switching between hosts; Remote push button has a 1.5m cable for ideal placement in the setup; Downloadable software allows listening to audio from one computer, while controlling the other
OUR ADVANTAGE
Included connectivity tools for IT Pro's and IT help-desk support teams with USB Event Monitoring for logging USB device connections with timestamps, and Windows Layout to restore windows locations upon switching hosts
Specifications
Technical Specifications
| Console Interface(s) | 1 - 3.5mm Stereo Female 3 pos1 - 3.5mm Stereo Female 3 pos2 - USB 2.0 Type-A (4 pin, 480Mbps)2 - HDMI |
|---|---|
| Host Connectors | 2 - USB 2.0 Type-A (4 pin, 480Mbps)4 - 3.5mm Stereo Female 3 pos4 - HDMI |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Humidity | 0% ~ 90% RH (non-condensing) |
| Audio | Yes |
| KVM Ports | 2 |
| PC Interface | USB |
| PC Video Type | HDMI |
| Number of Monitors Supported | 2 |
| Rack-Mountable | No |
| Cables Included | Yes |
| Chipset ID | SN8P2202SG |
| LED Indicators | 1 - Solid Green: Selected PC is Connected1 - Blinking Green: Selected PC is Not Detected1 - Amber LED: Selected Audio Source |
| Package Quantity | 1 |
| Package Length | 6.3 in [16.0 cm] |
| Package Width | 3.9 in [10.0 cm] |
| Package Height | 8.3 in [21.0 cm] |
| Shipping (Package) Weight | 1.9 lb [0.9 kg] |
| On-Screen Display | No |
| Video Revision | HDMI 2.1 TMDS |
| IP Control | No |
| Hot-Key Selection | Yes |
| Maximum Data Transfer Rate | 480Mbps (USB 2.0) |
| Supported Resolutions | 4096x2160 @60Hz3840x2160 @60Hz3440x1440 @60Hz2560x1440 @60Hz2560x1080 @60Hz1920x1200 @60Hz1920x1080 @60HzOther resolutions may be supported |
| Wide Screen Supported | Yes |
| Audio Specifications | Analog Stereo - 2 Channel AudioHDMI - 2 Channel Audio |
| Auto Scan | 10, 20, 30, 40, 50, and 60 seconds |
| Port Selection Support | Push Button and Hotkeys/Software |
| MTBF | 26,928 Hours |
| Color | Black |
| Product Length | 3.3 in [8.3 cm] |
| Product Width | 5.0 in [12.7 cm] |
| Product Height | 1.0 in [2.6 cm] |
| Weight of Product | 1.3 lb [0.6 kg] |
| Material | ABS |
| Cable Length | 4.9 ft [1.5 m] |
| Power Source | Bus Powered |
| OS Compatibility | Windows 7, 8/8.1, 10, 11macOS 10.12 - 10.15, 11, 12ChromeOS |
| Included in Package | 1 - KVM Switch1 - Quick-Start Guide |
| Brand | StarTech.com |
|---|---|
| Product Type | PC Peripherals > KVM Switches & Cables |
| Weight | 0.408 kg |
| Warranty |
|---|
