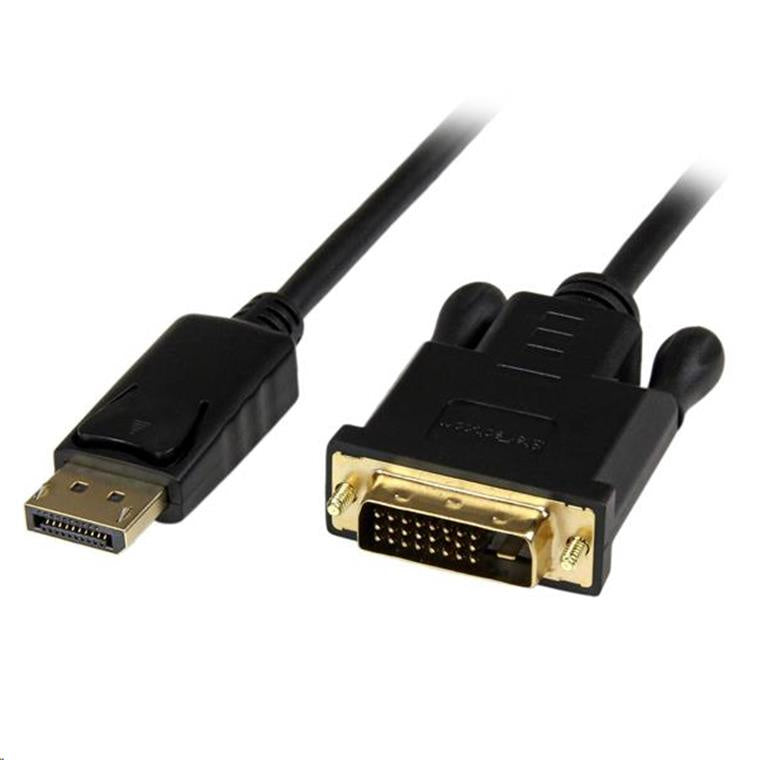

StarTech.com DP2DVIMM3BS - 3 ft DisplayPort to DVI Converter Cable
Features
The DP2DVIMM3BS 3ft active DisplayPort to DVI converter cable lets you connect your DisplayPort-equipped desktop or laptop directly to a nearby DVI monitor or projector, saving the expense of additional adapters while eliminating the clutter of excess cable.
For guaranteed compatibility with virtually any DisplayPort output the active DisplayPort to DVI adapter supports multimode (DP++) as well as single-mode DisplayPort signals. Unlike passive adapters, this ensures the DP2DVIMM3BS can be used with graphics cards that are not capable of outputting multimode DP++ signals, such as ATI® Eyefinity cards.
Plus, because the converter cable supports video resolutions up to 1920x1200 you can convert a DisplayPort video source to DVI without sacrificing video quality.
Note:
This adapter is not compatible for use with the Apple Cinema Display.
Specifications
Technical Specifications
| Connector A | 1 - DisplayPort (20 pin) |
|---|---|
| Connector B | 1 - DVI-D (25 pin) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) |
| Humidity | 40%-85%RH |
| Active or Passive Adapter | Active |
| AV Input | DisplayPort - 1.2 |
| AV Output | DVI-D - Single-Link |
| Audio | No |
| Chipset ID | Parade - PS171 |
| Package Height | 1.0 in [2.6 cm] |
| Package Length | 7.0 in [17.7 cm] |
| Shipping (Package) Weight | 3.2 oz [92.0 g] |
| Package Width | 7.9 in [20.0 cm] |
| Package Quantity | 1 |
| Audio Specifications | DVI - No Audio Support |
| Maximum Cable Length | 3.0 ft [0.9 m] |
| Maximum Digital Resolutions | 1920 x 1200 |
| Supported Resolutions | 1024 x 7681280 x 7201920 x 10801920 x 1200 |
| Wide Screen Supported | Yes |
| MTBF | 1,291,679 hours |
| Weight of Product | 2.8 oz [80 g] |
| Color | Black |
| Cable Length | 3.0 ft [0.9 m] |
| Product Length | 36.0 in [91.5 cm] |
| Product Width | 1.6 in [4.0 cm] |
| Product Height | 0.6 in [1.5 cm] |
| System and Cable Requirements | Some dual-link DVI monitors manufactured prior to 2014 may have limited resolutions support when used with this adapter.This adapter is not compatible for use with the Apple Cinema Display. |
| Included in Package | 1 - Active DisplayPort to DVI Adapter |
| Brand | StarTech.com |
|---|---|
| Product Type | PC Peripherals > Cables |
| Weight | 0.041 kg |
| Warranty |
|---|
