-11%
StarTech.com

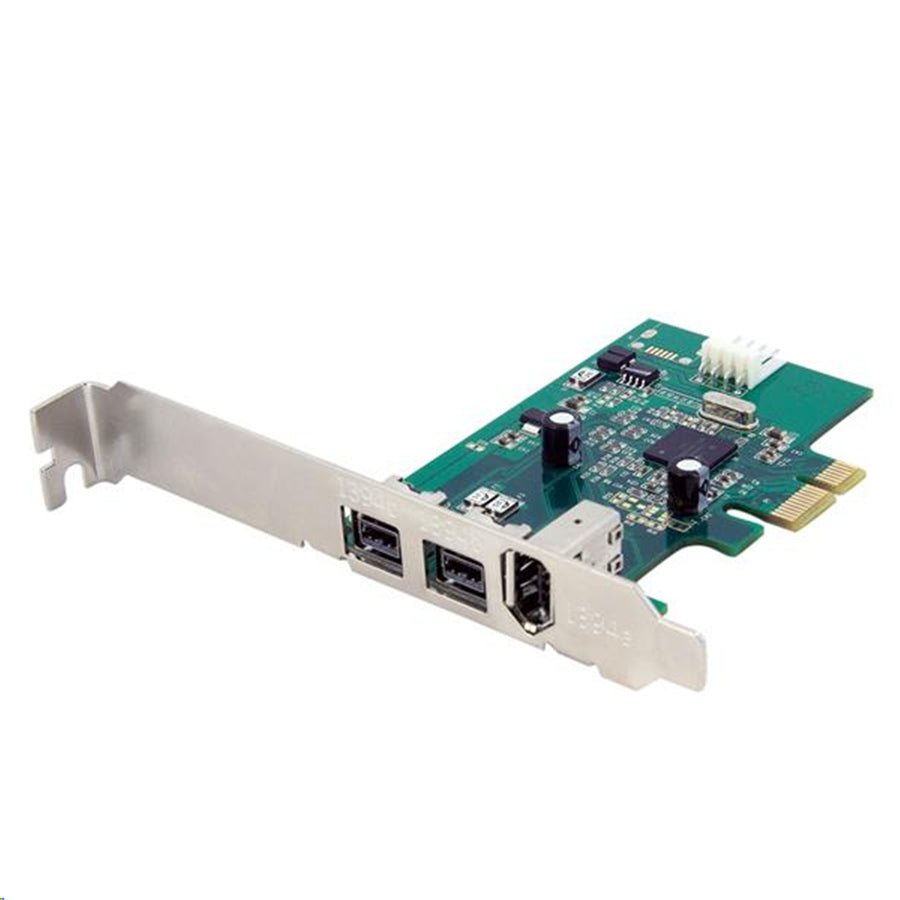

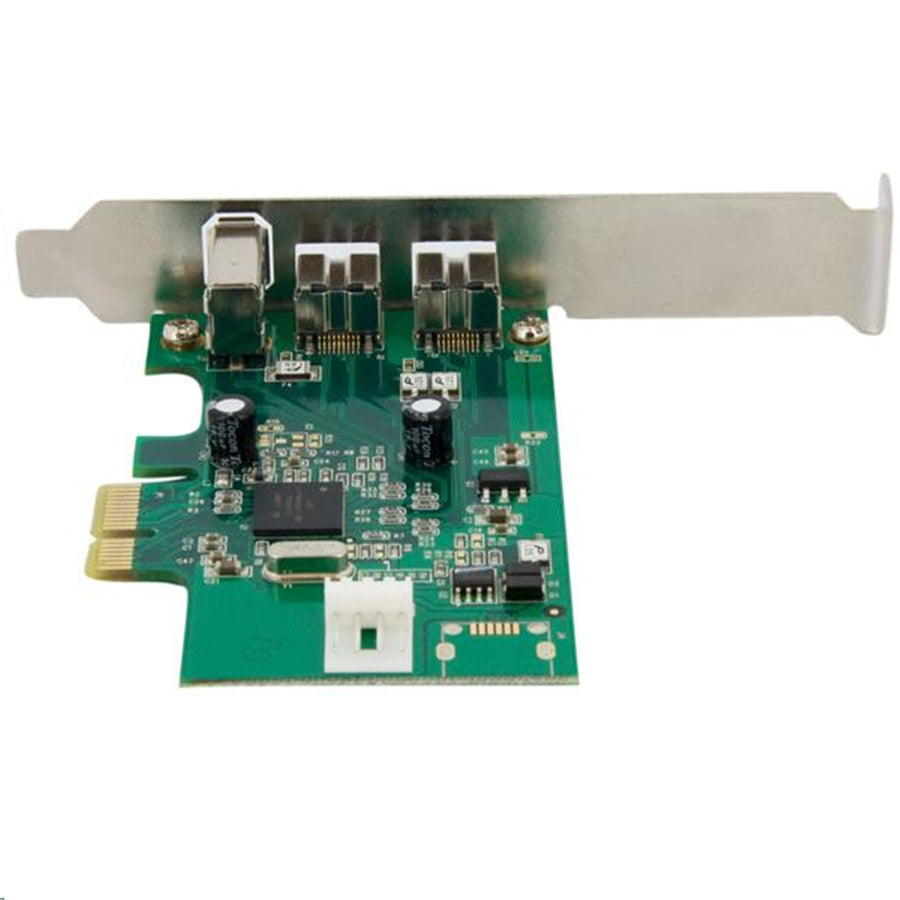

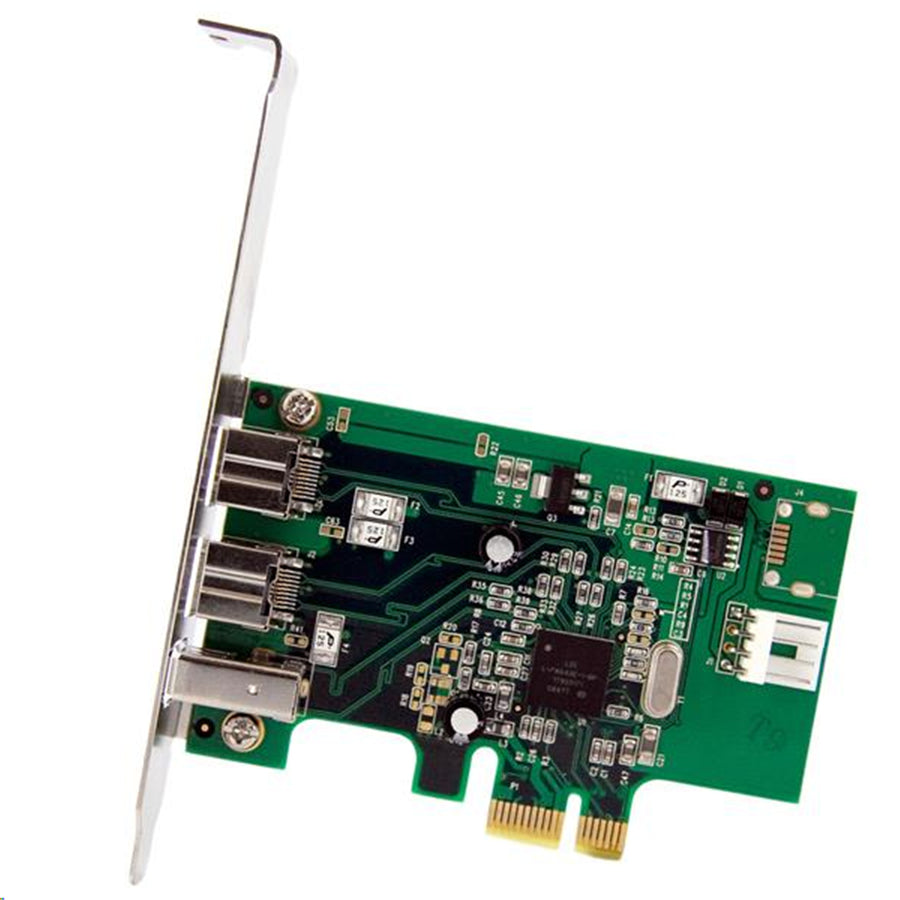

StarTech.com PEX1394B3 3 Port 2b 1a PCI Express FireWire Card
$127.82$144.37
inc GST ▲
+GST
Free shipping over $299
Genuine product
7-day returns
Features
This 3 Port PCI Express FireWire adapter card can be installed in a PCI Express slot to add two IEEE1394b (FireWire 800 - 9 pin) ports and one IEEE1394a (FireWire 400 - 6 pin) port, providing broad compatibility with a wide range of FireWire devices (e.g. DV camcorders, external hard drives, digital cameras, etc.). The 2b, 1a card features a native (single chip) PCI Express chipset - resulting in faster, more reliable and cost effective performance than expansion cards that utilize a "bridge" chip.
Key Features
- Two 9-pin FireWire 800 ports, each with transfer rates up to 800Mbps
- One 6-pin FireWire 400 port, each with transfer rates up to 400Mbps
- Built with a native PCI Express chipset, no bridge chip
Key Features
- Two 9-pin FireWire 800 ports, each with transfer rates up to 800Mbps
- One 6-pin FireWire 400 port, each with transfer rates up to 400Mbps
- Built with a native PCI Express chipset, no bridge chip
Specifications
Technical Specifications
| Bus Type | PCI Express |
|---|---|
| Card Type | Standard Profile (LP bracket incl.) |
| Chipset ID | Texas Instruments - XIO2213B |
| Industry Standards | IEEE-1394/1394A/1394B, OHCI, PCI Express 1.1 |
| Interface | FireWire 800 (1394b), FireWire 400 (1394a) |
| Ports | 3 |
| Maximum Data Transfer Rate | 800 Mbps, 400 Mbps |
| Connector Type(s) | 1x PCI Express x1 Male |

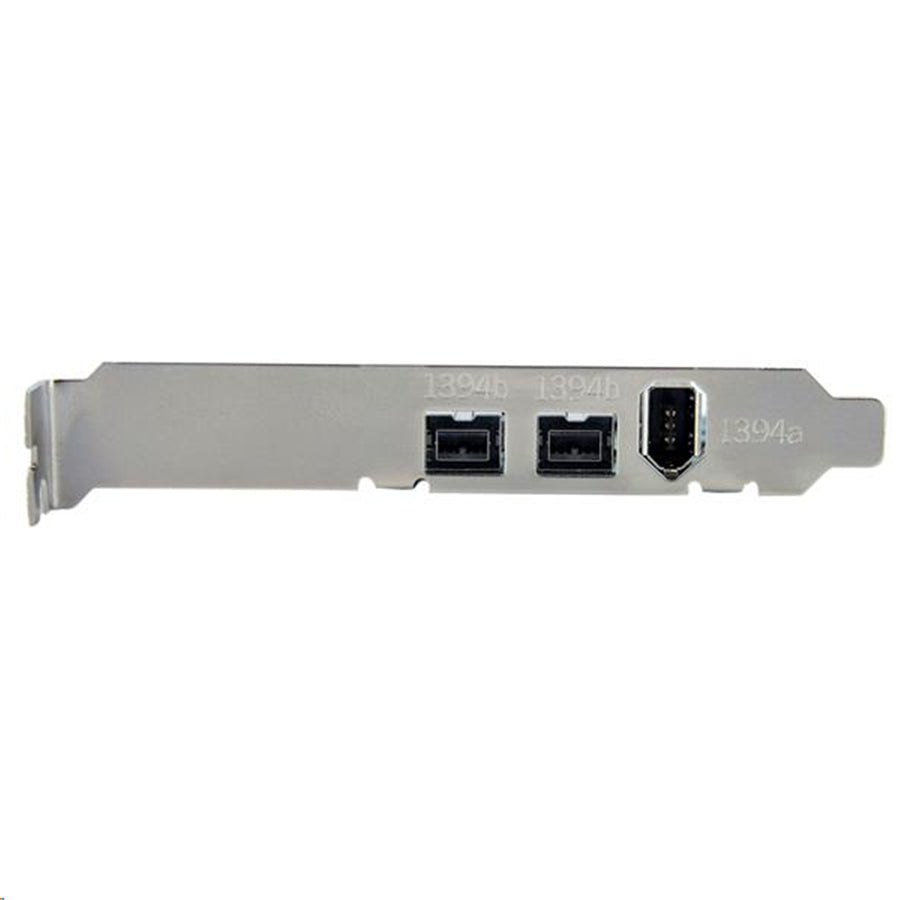

| External Ports | 1x FireWire 400 (6 pin, IEEE 1394a) Female, 2x FireWire 800 (9 pin, IEEE 1394b) Female |
| Internal Ports | 1x LP4 (4 pin; Molex-type Large Drive Power) Male |
| Humidity | 0~90% RH |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -20°C to 90°C (-4°F to 194°F) |
| Product Height | 120 mm |
| Product Length | 85 mm |
| Product Weight | 48 g |
| Product Width | 18 mm |
| OS Compatibility | Windows 2000, XP, Vista, 7, 8, 8.1, 10Windows Server 2003, 2008 R2, 2012, 2016Mac OS 10.6 to 10.14Linux 3.5.x to 4.4.x LTS Versions only |
| Note | The software included with this product supports a "typical" driver install only. Custom driver setup requires software purchase from a 3rd party |
| System and Cable Requirements | PCI Express enabled computer with an available PCI Express x1 slot or higher |

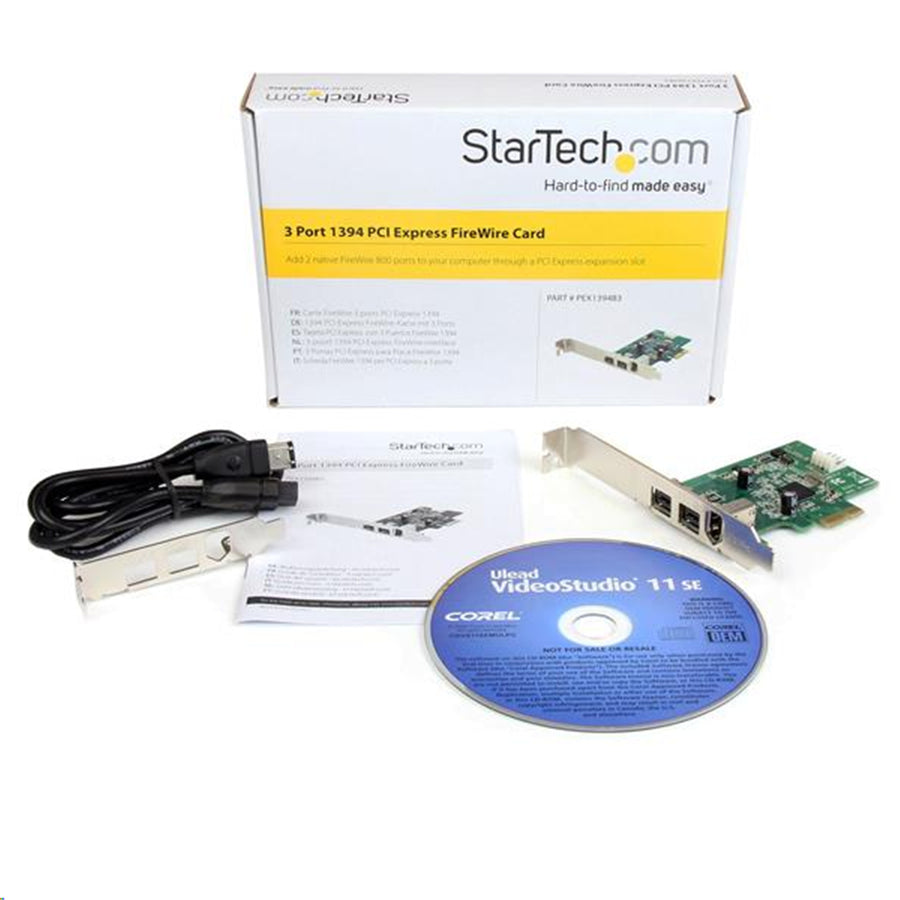

| Package Contents | 1x PCI Express FireWire Card1x FireWire cable1x Low Profile Bracket1x Software CD1x Instruction Manual |
| Brand | StarTech.com |
|---|---|
| Product Type | PC Parts > IO, SCSI, IDE Cards |
| Weight | 0.1 kg |
| Warranty |
|---|
