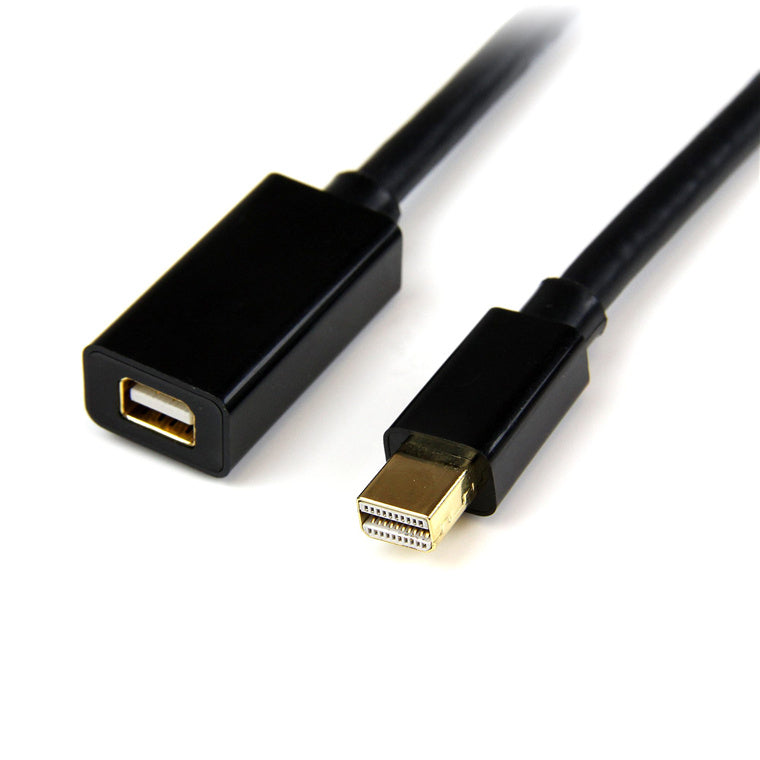

StarTech.com MDPEXT3 - 3ft Mini DisplayPort Extension Cable M/F
Features
Create a high-resolution 4k x 2k extension with HBR2 support between your Mini DisplayPort equipped devices
- MINI DISPLAYPORT 1.2 CABLE: This 91cm Mini DisplayPort v1.2 cable supports 4K x 2K video (3840x2400p 60Hz), 21.6 Gbps bandwidth, HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz)
- COMPATIBILITY NOTE: This is not a Thunderbolt cable and is not compatible with Thunderbolt peripherals such as Docking Stations, Displays or External Enclosures; It can however be used to connect a Thunderbolt 2 laptop to a Mini-DisplayPort monitor
- RELIABLE DESIGN: Durable ABS connectors with flexible PVC strain relief and jacket prevents fraying or damage due to bending or rough usage; Metal connector sub-structure provides EMI shielding
- QUALITY CONSTRUCTION: 30AWG wire with gold-plated connectors for improved signal integrity & reliability; Superior EMI shielding with double sided copper foil provides higher quality video and audio; mDP cable is Backward compatible with DP1.1
This Mini DisplayPort™ 1.2 cable lets you extend the connection distance between your Mini DP devices by up to 3 feet.
Position your devices the way you want
The cable delivers the ideal solution for better placement of peripheral devices and can be used to connect your Microsoft Surface™ Pro 4, Surface Book, MacBook, MacBook Pro, MacBook Air, and other mDP enabled devices to Apple's LED Cinema Display or other Mini DisplayPort monitor.
Simply connect your tablet or laptop to the extension cable using a standard Mini DisplayPort Cable and connect the extension cable to your Mini DP monitor.
Provide astonishing picture quality
The cable supports high resolutions of up to 4k x 2k (3840 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.
The MDPEXT3 is backed by StarTech.com's lifetime warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.
Please note: Newer laptop and desktop computers (e.g. Apple) come equipped with Thunderbolt™ ports only. Our Mini DisplayPort Cables can be connected to the Thunderbolt ports, enabling you to connect your Mini DP compatible displays.
Applications
Extend the connection distance between your Microsoft Surface Pro 4, Surface Book, MacBook, MacBook Pro, MacBook Air, Mac Pro, iMac, or Mac Mini and Apple LED Cinema Display monitor, by 3 feet
Specifications
Technical Specifications
| Connector A | 1 - Mini-DisplayPort (20 pin) |
|---|---|
| Connector B | 1 - Mini-DisplayPort (20 pin) |
| Number of Conductors | 20 |
| Connector Plating | Gold |
| Cable Jacket Material | PVC - Polyvinyl Chloride |
| Cable Shield Material | Aluminum-Mylar Foil with Braid |
| Fire Rating | CMG |
| Package Height | 0.4 in [1.0 cm] |
| Package Length | 8.7 in [22.0 cm] |
| Shipping (Package) Weight | 1.5 oz [42.0 g] |
| Package Width | 7.9 in [20.0 cm] |
| Package Quantity | 1 |
| Weight of Product | 1.2 oz [33.0 g] |
| Product Width | 0.5 in [1.2 cm] |
| Product Height | 0.4 in [0.9 cm] |
| Color | Black |
| Connector Style | Latching |
| Wire Gauge | 32 AWG |
| Cable Length | 3.0 ft [0.9 m] |
| Product Length | 36.0 in [91.4 cm] |
| Included in Package | 1 - 3 ft Mini DisplayPort 1.2 Video Extension Cable - M/F |
| Brand | StarTech.com |
|---|---|
| Product Type | PC Peripherals > Cables |
| Weight | 0.086 kg |
| Warranty |
|---|
Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
