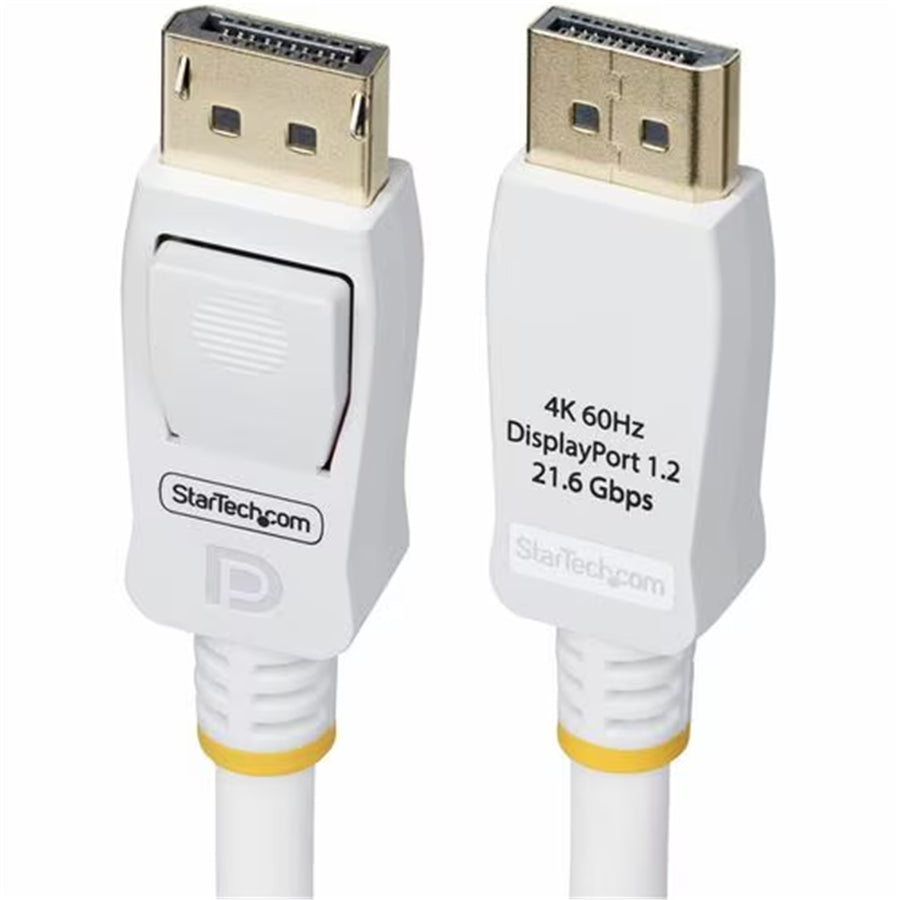

DP12-CABLE-10FTW - 3m White VESA Certified DP 1.2 Cable
Features
Connect a 4K UHD DisplayPort monitor to a host computer or MST hub, using this VESA-Certified DisplayPort 1.2 Cable. The connector markings enable quick visual identification, distinguishing this cable from other similar-looking or unmarked DP cables. Eliminate guesswork and always choose the appropriate cable to support full DP 1.2 capabilities.
Seamless Compatibility
For seamless operation between DisplayPort-enabled devices, the DisplayPort 1.2 Cable is VESA Certified for guaranteed DP 1.2 and backward compatibility. Certified cables provide consistent, reliable performance across multiple resolutions and refresh rates.
Durable Design
This DisplayPort cable features a flexible TPE outer jacket that routes easily around corners and desk edges. Robust strain reliefs enable convenient positioning of the cable, and latching nickel-plated DP connectors attach securely to prevent accidental disconnection.
- HIGH PERFORMANCE: DP 1.2 Cable is designed for UHD-enabled DisplayPort devices; Choose the right DP cable at-a-glance with performance markings on connectors for quick and easy identification; Up to 21.6Gbps for seamless 4K 60Hz video
- VESA CERTIFIED: DP 1.2 Cable is VESA certified for guaranteed performance and compatibility, ensuring reliable signal consistency and smooth video playback on any DP display; Backward compatible with earlier DP versions
- QUALITY CONSTRUCTION: Nickel-plated latching DP connectors enable a precise fit and prevents accidental disconnections; Aluminum mylar shield for enhanced EMI protection; Durable TPE Jacket and strain reliefs are halogen-free and RoHS compliant
- APPLICATIONS: Ideal for 4K UHD displays; Up to 144Hz refresh rate at 1440p resolution; Suitable for high performance GPUs and workstations; Supports MST multi-monitor daisy chains; Connect a DP monitor to a 4K docking station
- SPECS: White; 10-foot (3-meter); VESA Certified DisplayPort 1.2; Supports HBR2/MST/HDCP 1.3; 4K 60Hz/1440p 144Hz/1080p 240Hz; 21.6Gbps; 8-ch Audio; Backward Compatible w/DP 1.1; 28AWG; 7.5mm (0.3in) O.D.
Specifications
Technical Specifications
| Connector A | 1 - DisplayPort (20 pin, Latching) |
|---|---|
| Connector B | 1 - DisplayPort (20 pin, Latching) |
| Operating Temperature | 0°C to 50°C (32°F - 122°F) |
| Storage Temperature | -20°C to 70°C (-4°F - 158°F) |
| Humidity | 5% to 85% |
| Active or Passive Adapter | Passive |
| Number of Conductors | 19 |
| Connector Plating | Nickel |
| Cable Jacket Material | TPE - Thermoplastic Elastomers |
| Cable Shield Material | Aluminum-Mylar Foil with Braid |
| Fire Rating | VW-1 |
| Package Height | 0.8 in [2.0 cm] |
| Package Length | 8.7 in [22.0 cm] |
| Shipping (Package) Weight | 6.9 oz [196.0 g] |
| Package Width | 7.9 in [20.0 cm] |
| Maximum Data Transfer Rate | 21.6Gbps |
| Maximum Digital Resolutions | 4K 60Hz |
| Audio Specifications | DisplayPort - 7.1 Channel Audio |
| Color | White |
| Product Height | 0.5 in [1.3 cm] |
| Product Length | 6.1 ft [1.9 m] |
| Weight of Product | 6.5 oz [184.0 g] |
| Product Width | 0.8 in [2.1 cm] |
| Connector Style | Straight |
| Wire Gauge | 28 AWG |
| Material | ABS |
| Cable Length | 10.0 ft [3.1 m] |
| Cable OD | 0.3 in [7.5 mm] |
| Included in Package | 1 - 10ft DisplayPort Cable - White |
| Brand | 3M |
|---|---|
| Product Type | PC Peripherals > Cables > DisplayPort Cables |
| Weight | 0.089 kg |
| Warranty |
|---|
