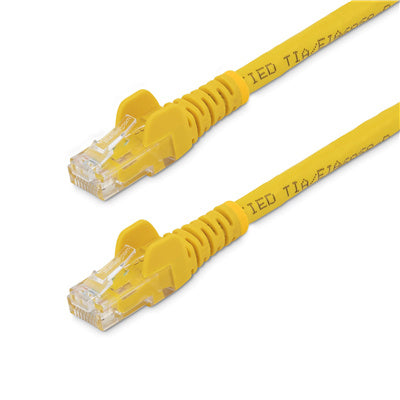

StarTech.com N6PATC3MYL Cat6 - 10GbE - 100W PoE++ Ethernet Cable - 3m - Yellow
Features
Make Power-over-Ethernet-capable Gigabit network connections
- HIGH PERFORMANCE CAT6 ETHERNET CABLE: 100% copper for error-free Multi Gigabit 1/2.5/5Gbps connections; 10Gbps up to 50m; Individually Tested to comply w/ANSI/TIA-568-2.D Category 6
- POE SUPPORT: 24 AWG stranded copper conductors & UL Rated Wiring (E132276-A) supports up to 100W for PoE devices like VOIP phone & security systems; IEEE 802.3bt & DTE power compliance reduces cable heating
- QUALITY CONSTRUCTION: UL certified wire; 50-micron gold-plated connectors prevent rust/corrosion to avoid costly network downtime; High quality PVC jacket resists bending or fraying damage
- EASY INSTALLATION: Snagless patch cord for easy installation & flexible disconnection in wiring conduits; Compatible w/Cat5e & earlier standards; Molded boots available for constrained spaces
The N6PATC3MYL Cat 6 patch cable (3m) meets or exceeds all Category 6 cable specifications to ensure reliable Gigabit network connections, and features a durable yellow PVC jacket that enables you to color code your network cable runs as needed.

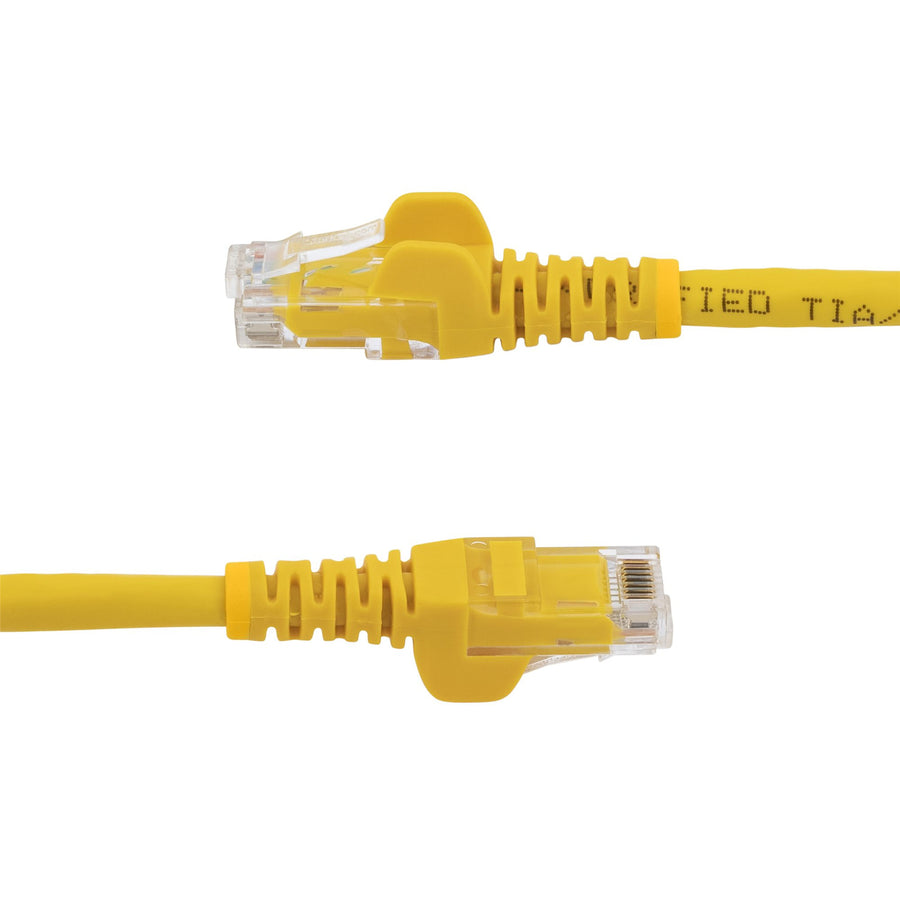

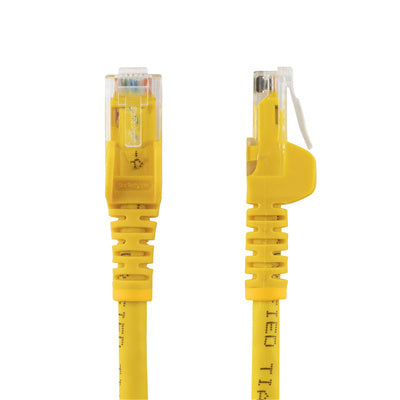

To ensure long-lasting performance, this high quality Cat 6 patch cable features a snagless design that protects the RJ45 connector clips from damage and makes the cable less prone to snagging during installation. The cable also features molded PVC strain relief that prevents the RJ45 connector termination points from bending at sharp angles, reducing the risk of cable failure.
Constructed of only top quality materials, this Cat 6 patch cord delivers reliable performance and is backed by our lifetime warranty.
100% copper for outstanding value
Get the highest value for your cable investment with our Cat 6 cables, each one manufactured using high-quality copper conductors.
24-gauge wire for high-performance network connection
Ensure high-performance capability for your demanding Ethernet applications, such as Power-over-Ethernet, using cables that include 24 AWG copper.

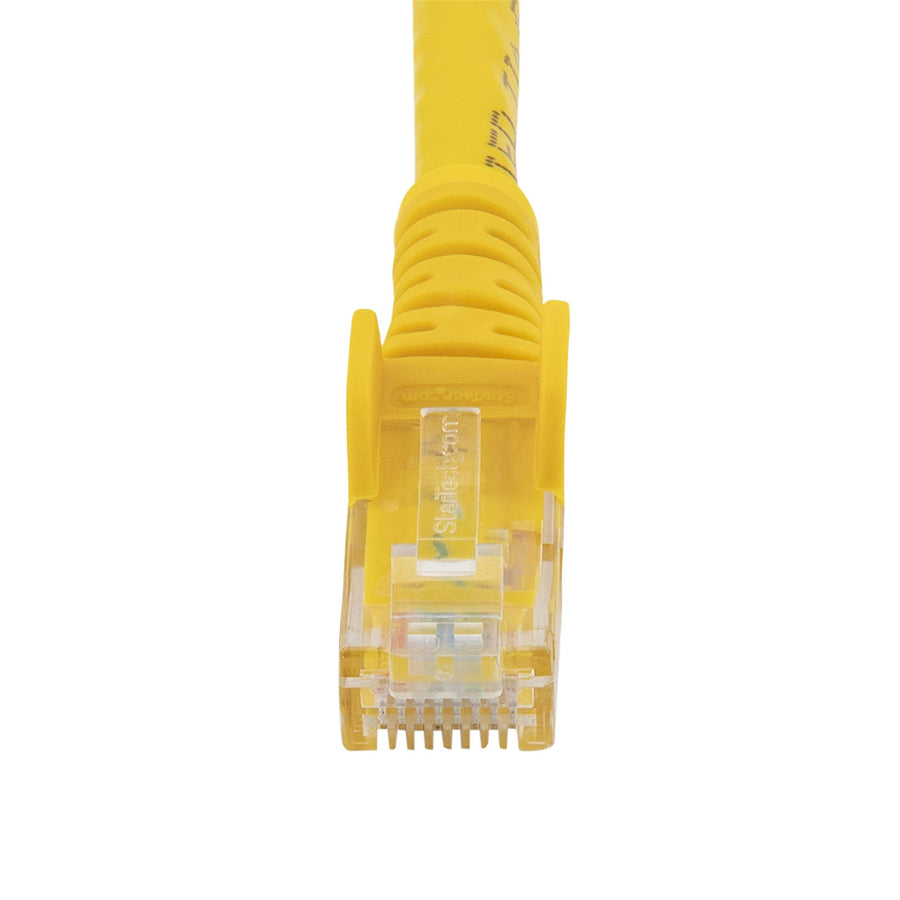

50-micron gold connectors provide peak conductivity
Rely on our RJ45 connectors to deliver optimum conductivity while eliminating signal loss due to oxidation or corrosion.
Applications
- Designed for use with Gigabit networks
- Patches from hub to distribution panel
- Connects workstation to wall outlet
Specifications
Technical Specifications
| Connector A | 1 - RJ-45 |
|---|---|
| Connector B | 1 - RJ-45 |
| Number of Conductors | 4 pair UTP |
| Connector Plating | Gold |
| Cable Jacket Material | PVC - Polyvinyl Chloride |
| Fire Rating | CMG Rated (General Purpose) |
| Wiring Standard | TIA/EIA-568-B.1-2001 T568B |
| Package Height | 1.6 cm [0.6 in] |
| Package Length | 22.0 cm [8.7 in] |
| Shipping (Package) Weight | 136.0 g [4.8 oz] |
| Package Width | 20.0 cm [7.9 in] |
| Package Quantity | 1 |
| Cable Rating | CAT6 - 250 MHz |
| Product Height | 1.6 cm [0.6 in] |
| Product Width | 1.3 cm [0.5 in] |
| Color | Yellow |
| Wire Gauge | 24 AWG |
| Conductor Type | Stranded Copper |
| Cable Length | 3 m [9.8 ft] |
| Product Length | 3 m [9.8 ft] |
| Weight of Product | 126.0 g [4.4 oz] |
| Included in Package | 1 - 3m Yellow Snagless Cat6 UTP Patch Cable - ETL Verified |
| Brand | StarTech.com |
|---|---|
| Product Type | Networking > Network Cables |
| Weight | 0.063 kg |
| Warranty |
|---|
