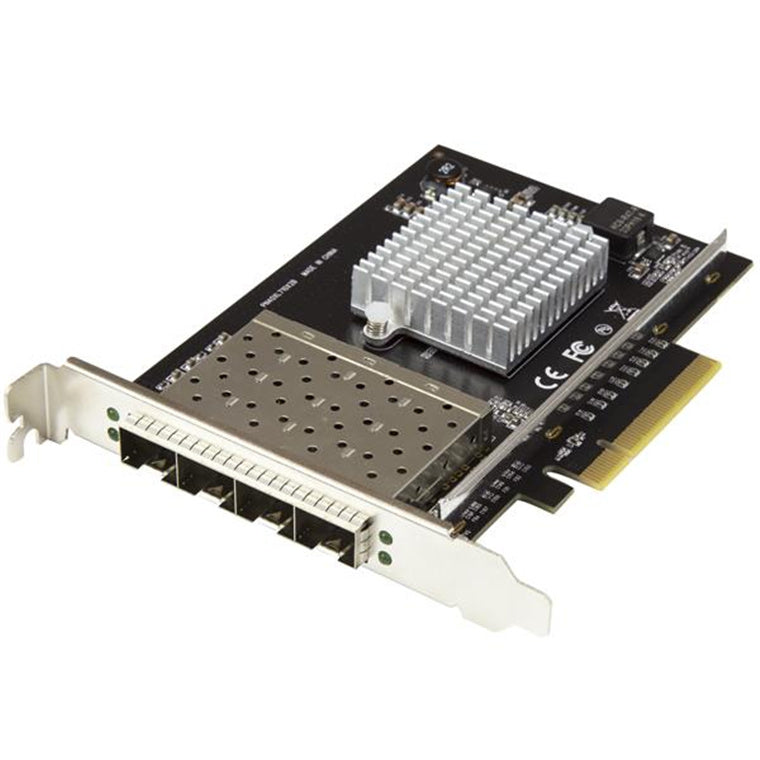

StarTech.com PEX10GSFP4I - 4 Port SFP+ Server Network Card - XL710
Features
This SFP+ server network card delivers reliable, high-performance network connectivity, by adding four open SFP+ slots to your server or high-powered workstation. It provides an easy and cost-effective way to upgrade to a 10 Gigabit fiber network using SFP+ modules of your choice and gives you the flexibility to use either multimode or single-mode fiber.
Add redundant connections in zero-downtime environments
With multiple available ports, you can avoid network downtime by adding fault-tolerant connections using two or more modules to provide high-bandwidth network links to your mission-critical servers or workstations.
Increase your network speed
This PCIe network card lets you take advantage of the increased speed and stability of a 10 Gigabit network, with data transfers of up to 10Gbps.
Add scalable network connections to your server or workstation
The network interface card is compatible with most 10GbE SFP+ transceivers. This gives you flexible and scalable configuration options, for connecting your computer directly to a fiber network at greater distances.
The card features four open SFP+ slots with support for interchangeable 10GBase SFP+ modules. This gives you the option to use the fiber transceiver modules that best suit your network needs based on distance and connector type. StarTech.com offers a wide variety of SFP+ transceiver modules to suit your network requirements. In addition, StarTech.com SFP+ cables provide a dependable solution for linking telecom and data communications equipment, such as routers and switches.
Enhance your network capabilities
The SFP+ server network card features the Intel® XL710 chipset, delivering the power, performance and enhanced capabilities you need for reliable connections to your server or computer. The Intel chip offers many advanced features including Intel® Virtualization Technology for Connectivity, PXE network boot support and up to 9K jumbo frame support.
Specifications
Technical Specifications
| Bus Type | PCI Express |
|---|---|
| Card Type | Standard Profile |
| Chipset ID | Intel - XL710 |
| Industry Standards | IEEE 802.3ae (10GBASE-LR/SR only) |
| PCI Express | Rev 3.0, using PCIe x8 (or higher) slot |
| Interface | Fiber (10 Gigabit Ethernet) |
| Ports | 4 |
| Compatible Networks | 10 Gbps |
| Full Duplex Support | Yes |
| Jumbo Frame Support | 9K max. |
| Maximum Data Transfer Rate | 20000 Mbps (20 Gbps) - Full-Duplex |
| Supported Protocols | IEEE 802.3ad (Link Aggregation)IEEE 802.3x (Flow Control Support)IEEE 802.1Q (VLAN tagging) |
| Connector Type(s) | 1 - PCI Express x8 Male |
| Internal Ports | 4 - SFP+ Slot Female |
| LED Indicators | 4 - Link/Activity (green) |
| Humidity | 20% ~ 80% RH |
| Operating Temperature | 5°C to 50°C (41°F to 122°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Color | Black |
| Product Height | 3.9 in [100 mm] |
| Product Length | 5.5 in [139 mm] |
| Product Weight | 4.3 oz [122 g] |
| Product Width | 0.6 in [15 mm] |
| Brand | StarTech.com |
|---|---|
| Product Type | Networking > Fiber Connectivity > SFP Modules |
| Weight | 0.079 kg |
| Warranty |
|---|
