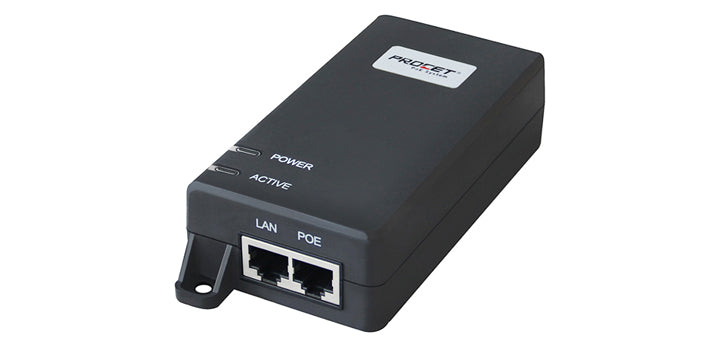

55V DC 30 Watt 10 Gigabit 802.3at Power over Ethernet Supply

PT-PSE104GO-30-10

55V DC 30 Watt 10 Gigabit 802.3at Power over Ethernet Supply

Procet 55V DC 30 Watt 10 Gigabit 802.3at Power over Ethernet Supply. PT-PSE104GO-30-10 is a single port PoE Injector. It provides 55Vdc, 0.55a power for remote PDs over 2 pairs output. It supports not only 10/100/1000Mbps of data speed, but also 2.5GbE/5GbE/10GbE NBase-T. It works for 30W PoE PDs, such as wireless APs, Network cameras, IP Phones and other high power Ethernet terminals. It is fully compliant with IEEE802.at and backwards compatible to IEEE 802.3af PoE standard.

PT-PSE104GO-30-10 is designed for indoor use. It works with input voltage of 100-240Vac and operates under -40°C to +65°C. It has a detection chip inside, which will detect and classify PD before powering it. It will not apply power until a standards compliant PD is detected. The effective distance is 100 meters over Cat5e/Cat6 cables.

Details
Manufacturer's Product Code	PT-PSE104GO-30-10
Input	100-240Vac 1.5A 50/60Hz
Output	55Vdc 550mA
Power Pins	4/5(+), 7/8(-)
Data Speed	10/100/1000Mbps & 2.5/5/10GbE
Operating Temperature	-40°C to 65°C
Operating Humidity	20% to 80%, non-condensation
Storage Temperature	-20°C to 85°C
Storage Humidity	10% to 90%, non-condensation
Operating Altitude	up to 5000meters
Standards	IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-Tx Fast Ethernet, IEEE802.3ab 1000Base-T Gigabit Ethernet, IEEE802.3bz 2.5/5/10GbE NBASE-T, Full compliant with IEEE802.3af/at, RoHS Compliance, WEEE Compliance
EMI	FCC CFR47 Part 15, EN55024, EN55032
EMS	IEC61000-4-2(ESD) ± 6kV(contact), ±8kV(air), IEC61000-4-3(RS) 10V/m(80MHz~2GHz), IEC61000-4-4(EFT) Power Port: ±2kV; Data Port:±1kV, IEC61000-4-5(Surge) Power Port:±1kV/DM, ±2kV/CM, IEC61000-4-6(CS) 10V(150kHz~80MHz)
Case	Plastic
Colour	Black
Mounting	Wall-mounted
IP Rated	IP40
Size	145.51mm X 65.8mm X 33.5mm
Weight	255g
