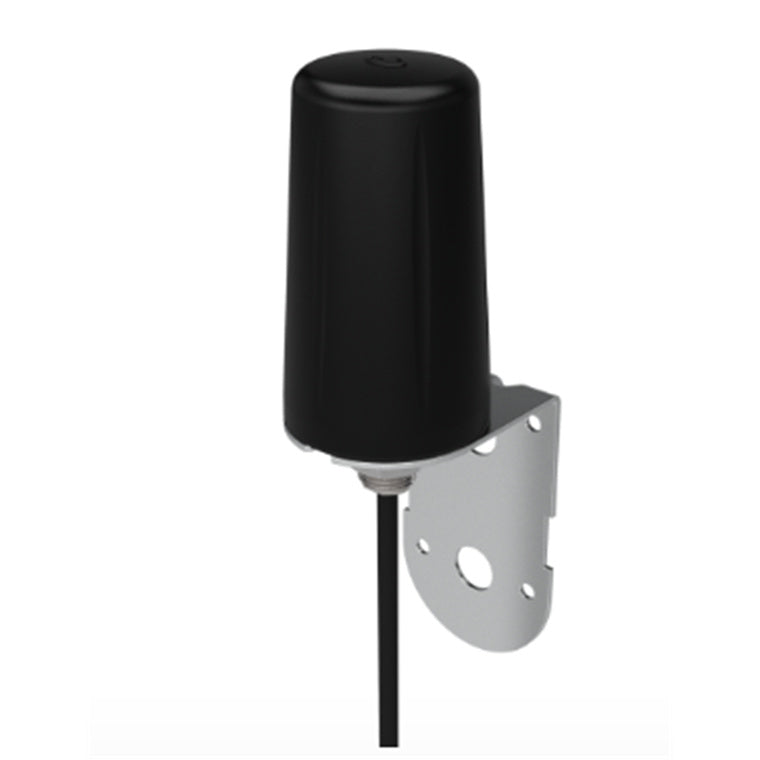

Panorama Antennas B4BE-6-60-2SP - 5G/4G/LTE Low Profile Antenna with Bracket Mount and 2m cable SMA
You May Also Like
RBwAPG-60adkit - MikroTik Wireless Wire 1Gbps 60GHz Wireless Bridge Kit
RBLHGG-60adkitr2 - MikroTik Wireless Wire Dish Preconfigured 60GHz Pair
Cambium Networks C050910C801A - Cambium ePMP 5 GHz Force 300-25 High Gain Radio
Features
https://panorama-antennas.com/product/b4be-6-60-bracket-mount-4g-5g-antenna/
5G LTE Low Profile Bracket Mount Antenna w/ 2m cable SMA
Compatible with Cradlepoint, Robustel, DrayTek routers and more.
The Panorama B4BE is a robust bracket mount antenna for LTE, M2M and IoT applications.
The B4BE range has been designed to provide cost effective coverage booster antennas for 2G/3G/4G and 5G devices. The antennas are designed for wall or mast mounting and are weather proof which allows the device to reap the benefits of an antenna mounted in an elevated or external location where the signal is strongest.
The omni-directional radiation pattern allows the antenna to be quickly installed while the global Cellular/GSM/LTE coverage provided by the antenna allows it to be utilised for 2G/3G & 4G applications the world over.
Specifications
Technical Specifications
| LTE Frequencies | 617-960/1710-6000MHz |
|---|---|
| Typical VSWR | <2.5:1 |
| Peak Gain (dBi) | 5 |
| Max Input Power (W) | 30 |
| Pattern | Omni-directional |
| Available Colours | Black;White |
| Height (mm) | 164 |
| Diameter (mm) | 48 |
| Operating Temperature | -40 / + 80°C |
| Mounting Type | Wall Mount; Mast Mount |
| Mounting Method | Screw Mount; Jubilee Clip |
| IP Rating | IP66 |
| Brand | Panorama Antennas |
|---|---|
| Product Type | Networking > Network Accessories > Antennas |
| Weight | 0.5 kg |
| Warranty |
|---|
