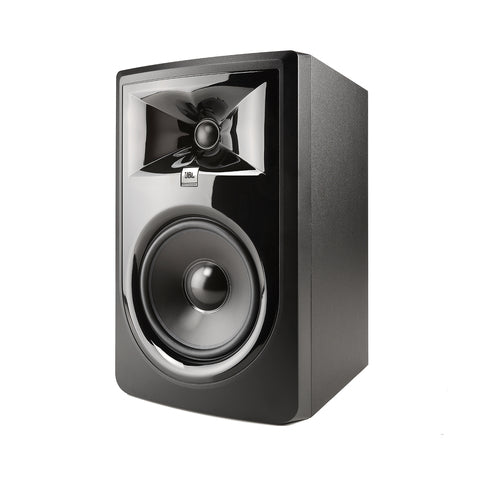

JBL PROFESSIONAL 306PMKII - 6.5IN 2-WAY POWERED STUDIO MONITOR
Features
Powered 6" (15.24 cm) Two-Way Studio Monitor
The next-generation JBL 306P MkII powered studio monitor makes legendary JBL performance available to every studio. With the revolutionary JBL Image Control Waveguide and refined transducers, JBL 306P MkII offers stunning detail, precise imaging, a wide sweet spot and impressive dynamic range that enhances the critical listening capabilities of any modern workspace. Featuring patented technologies derived from the JBL 7 Series and M2 Master Reference Monitors and sporting a sleek, modern design, JBL 306P MkII delivers outstanding performance and an enjoyable mix experience at an accessible price.
Patented Image Control Waveguide
For detailed imaging and a broad, room-friendly sweet spot
Next-generation JBL transducers
For optimized transient response and improved linearity
New Boundary EQ settings
Compensate for low frequency variants introduced by the environment
3-position HF Trim switch
Adjusts high-frequency output to room acoustics or personal preferences
Patented Slip Stream low-frequency port
For superior bass performance at all playback levels
Dual integrated, custom Class-D amplifiers
Provide 112 watts of powe for high output and dynamic range

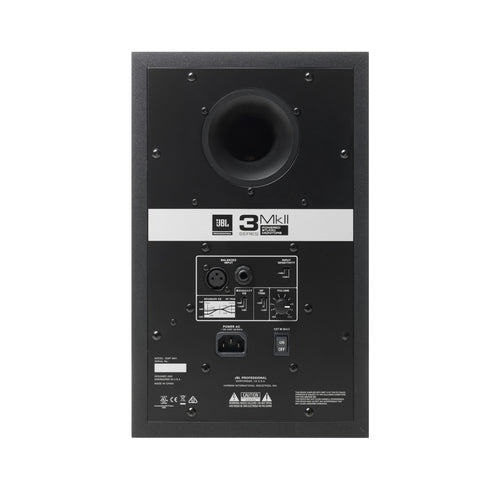

Flexible connectivity
With balanced XLR and 1/4'' TRS inputs, +4dBu/-10dBV input-sensitivity switch and adjustable volume control
Engineered to JBL Linear Spatial Reference design criteria
For outstanding accuracy in any working space
Strenuous JBL 100-hour full-power test
Ensures years of reliability
Sleek, modern design
Provides a visual upgrade to any studio
Specifications
Technical Specifications
| LF Driver Size | 165 mm (6.5") |
|---|---|
| HF Driver Size | 25 mm (1") |
| HF Driver Type | Soft dome |
| Crossover | 1425Hz 4th order acoustic Linkwitz-Riley |
| Power Configuration | Bi-amplified |
| HF Driver Power Amp | 56 W Class D |
| LF Driver Power Amp | 56 W Class D |
| Frequency Response | 47Hz - 20kHz (±3dB) |
| Frequency Range | 39Hz - 24kHz (-10dB) |
| Low Frequency Extension | 39Hz (-10dB) |
| Maximum Continuous SPL | 92dB |
| Maximum Peak SPL | 110dB |
| Maximum Peak Input Level | +6dBV / +20.3dBu (-10dBV / +4dBu) |
| System Distortion Criteria | <10% THD at maximum output with full compressor / limiter engagement |
| Electrical Distortion Criteria | 0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output |
| Signal to Noise Ratio | 75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output |
| Coverage Pattern | 120° x 90° (horizontal x vertical) |
| HF Trim Control | -2dB, 0dB, +2dB |
| Boundary EQ | LF Shelf @ 50Hz |
| AC Input Voltage | 100 - 240VAC (±10%), 50 / 60Hz |
| Height | 361 mm (14.2") |
| Width | 224 mm (8.8") |
| Depth | 282 mm (11.1") |
| Net Weight | 6.1 kg (13.42 lbs) |
| Enclosure Type | Ported |
| Enclosure Construction | 15mm MDF |
| Enclosure Finish | Matte black PVC |
| Baffle Construction | Injection-molded structural ABS |
| Analog Input Types | 1 x XLR female, 1 x TRS female, balanced |
| Input Sensitivity | 92dB / 1m (-10dBV Input) |
| Contains | 1 x 306P MkII studio monitor1 x Power cord1 x Quick setup guide4 x Peel-off rubber pads |
| Brand | JBL PROFESSIONAL |
|---|---|
| Product Type | Headphones & Audio > Speakers |
| Weight | 3.401 kg |
| Warranty |
|---|
