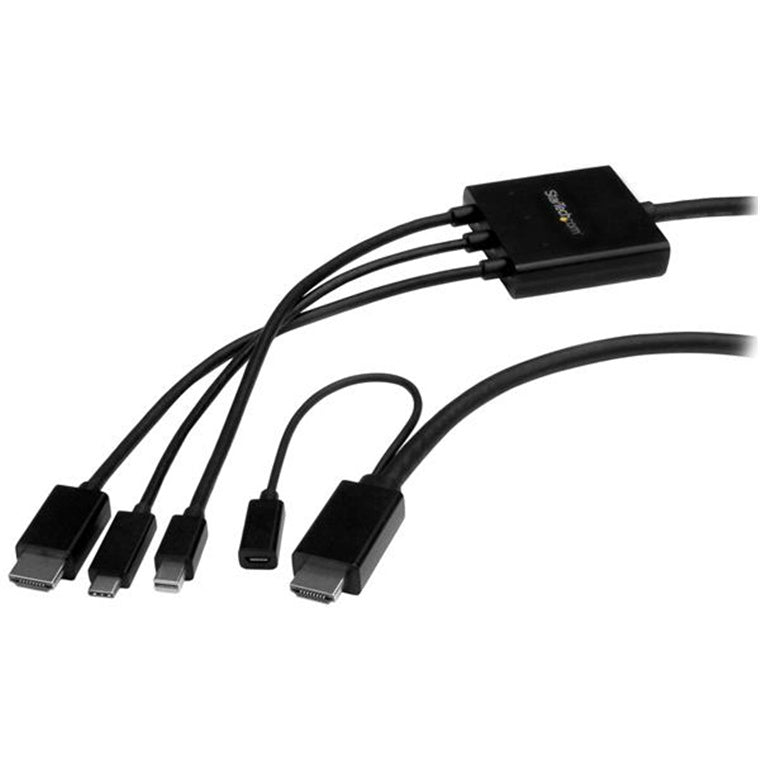

StarTech.com CMDPHD2HD - 6ft USB-C HDMI or mDP to HDMI Adapter
Features
Connect your USB Type-C, HDMI or Mini DisplayPort laptop to an HDMI display or projector
- Avoid the hassle of using multiple adapters in a single boardroom or classroom
- Be prepared for all of your presentations and different user requirements
- Astonishing video quality with support for video resolutions up to 4K at 30Hz
This unique adapter cable lets you connect almost any laptop or desktop computer to an HDMI® display or projector. It supports the USB-C™, HDMI and Mini DisplayPort™ output from your computer, and video resolutions up to Ultra HD 4K.
The adapter is compatible with your DP alt mode computer. DP alt mode means your computer can pass a DisplayPort video signal through the USB-C port.
Simple boardroom setup
This adapter cable is ideal for your boardroom's HDMI display or projector. You can reduce clutter and eliminate the need for multiple adapters on your boardroom table by providing a single adapter cable that can support a variety of signals.
One adapter for multiple users
The adapter cable supports multiple input signal types, so you'll be able to accommodate a variety of user needs. Employees and guests can plug in their USB Type-C™, HDMI or mDP laptops and deliver their presentations using your boardroom's HDMI display, without having to carry their own adapters.
Astonishing picture quality
This adapter cable ensures you can maintain an astonishing picture quality with four times the resolution of 1080p. The adapter is also backward compatible with lower resolution displays and video sources. With support for high-definition resolutions of 1080p and 720p, you can future-proof your existing setup for 4K video.
USB-powered
The adapter can be powered through the provided Micro-USB cable by connecting the cable from the adapter to a USB port on your laptop or the HDMI display. You can connect your laptop to either input on the adapter cable, and share presentations.
The CMDPHD2HD is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Note: Your USB-C equipped device must support video to work with this adapter.
Applications
- Connect a USB-C, HDMI or Mini DisplayPort computer to an HDMI display or projector
- Replace multiple boardroom adapters with a single adapter that can support three video inputs
- Use in school rooms to allow different teachers and students to present information from various types of laptops
Specifications
Technical Specifications
| Connector Type(s) | 1 - USB Micro-B (5 pin) |
|---|---|
| Connector B | 1 - HDMI (19 pin) |
| Connector A | 1 - Mini-DisplayPort (20 pin)1 - HDMI (19 pin)1 - USB-C (24 pin) DisplayPort Alt Mode |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -10°C to 80°C (14°F to 176°F) |
| Humidity | 5% ~ 90% RH |
| Active or Passive Adapter | Passive |
| AV Input | USB-CMini-DisplayPortHDMI |
| AV Output | HDMI |
| Audio | Yes |
| Package Height | 2.6 in [6.6 cm] |
| Package Length | 8.7 in [22.1 cm] |
| Shipping (Package) Weight | 1.0 lb [0.5 kg] |
| Package Width | 4.8 in [12.1 cm] |
| Package Quantity | 1 |
| Wide Screen Supported | Yes |
| Color | Black |
| Cable Length | 6.6 ft [2 m] |
| Product Length | 6.6 ft [2.0 m] |
| Product Width | 2.4 in [6.0 cm] |
| Product Height | 0.6 in [1.5 cm] |
| Weight of Product | 7.8 oz [222.0 g] |
| Power Source | USB-Powered |
| System and Cable Requirements | Your USB-C port must support DisplayPort over USB-C (DP Alt mode) in order to work with this adapter. |
| Included in Package | 1 - 2m USB-C, HDMI or mDP to HDMI Converter Cable1 - 2m Micro USB cable1 - instruction manual |
| Brand | StarTech.com |
|---|---|
| Product Type | PC Peripherals > Adapters |
| Weight | 0.204 kg |
| Warranty |
|---|
Note:
Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
