StarTech.com

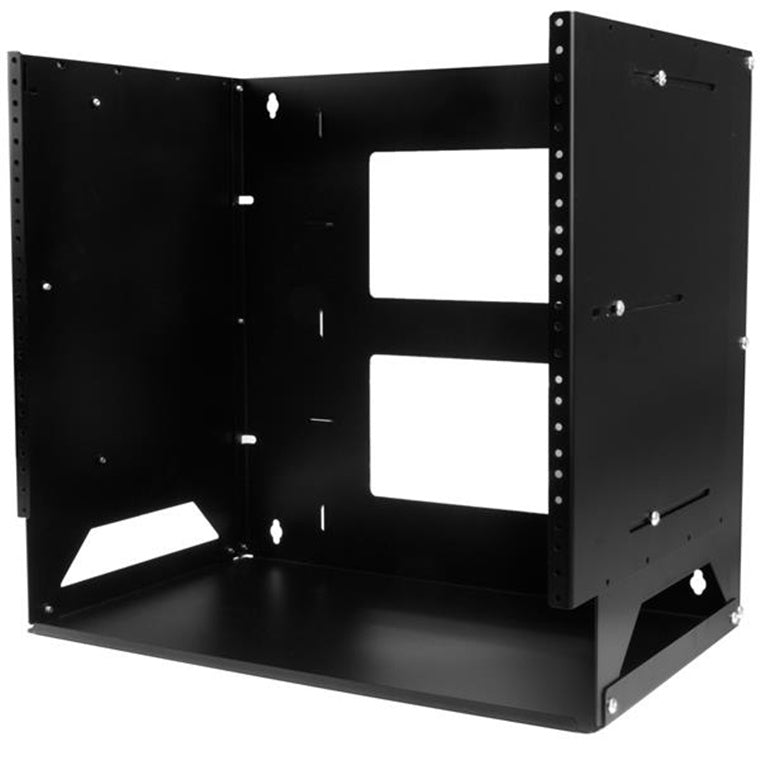

8U WALL-MOUNT SERVER RACK WITH SHELF

SKU: WALLSHELF8U ● In Stock
$365.21
inc GST ▲ +GST
Free shipping over $299 Genuine product 7-day returns

Features

This wall-mount rack provides 8U of space for mounting your servers or A/V equipment to a wall. The rack also has a built-in shelf to create a sturdy surface for storing equipment that is not rack-mountable.


Customize your setup


The wall-mount bracket features an adjustable mounting depth of 12 inches to 18 inches as well as a dual-position 12 in. shelf that can be at either the top or the bottom depending on rack's positioning. These two features allow you to customize both depth and layout to best fit your equipment and cables, ensuring that the rack suits your space.


Make the most of your available space


The 8U rack wall mounting feature allows you to free up desk or floor space -- perfect for your SoHo (small office, home office) environment, server room or any other location with limited space available.


Ensure a secure and hassle-free installation


The wall rack is constructed of solid steel to ensure a sturdy and safe mounting solution for your mission-critical equipment and with the wall mounting holes positioned 16" apart, it exactly matches standard drywall construction framework, to ensure simple and secure wall-stud anchoring. For hassle-free equipment installation, the rack features 10-32 tapped rails, so you can mount your equipment directly to the rail and avoid the hassle of using cage nuts.


Save money, with a cost-effective, compact shipping package


The wall-mount rack comes in a flat-packed box to reduce shipping volume, which significantly reduces your costs in shipping while also providing greater protection than offered by pre-assembled racks. Packaged efficiently, you can easily store and transport the rack for deployment at a later date or in a different location than where it's received.

Specifications

Technical Specifications

Additional Required Tools Phillips Screwdriver
Adjustable Mounting Rails No
Cable Management No
Casters No
Fan(s) No
Frame Type Open Frame
Industry Standards EIA-310-DEIA RS310-C
Ladder Type L-Shape
Mounting Holes Circle, Threaded
Number and Type of Included Cage Nuts 10-32
Rack Type 2-Post
Tools Included No
U Height 8U
U Markings No
Wallmountable Yes
Weight Capacity (Stationary) 75.2 lb [34 kg]
Color Black
Enclosure Type Steel
External Depth 12.1 in [307 mm]
External Height 17.6 in [446 mm]
External Width 19.1 in [485 mm]
Internal Dept 17.8 in [453 mm]
Internal Length 18 in [457.2 mm]
Internal Width 18.7 in [475 mm]
Minimum Mounting Depth 17.8 in [453 mm]
Product Height 17.6 in [446 mm]
Product Length 12.1 in [307 mm]
Product Weight 347.7 oz [9850 g]
Product Width 19.1 in [485 mm]
Rail Thickness 0.1 in [2 mm]
Included in Package 1 - back plate1 - right bracket1 - left bracket1 - shelf bracket2 - adjustable rails16 - 10-32 x 3/8 screws24 - 10-32 mounting screws1 - mounting template6 - wood screws1 - instruction manual
