ASUS

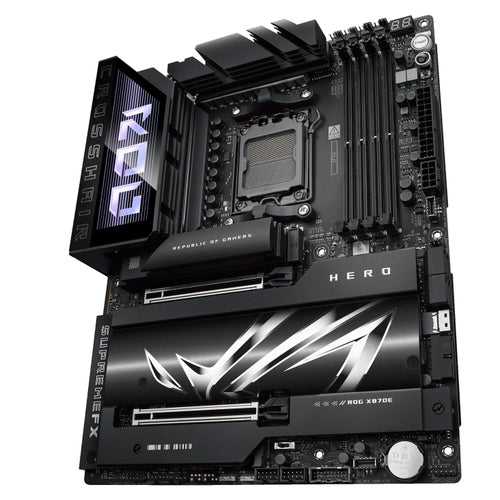

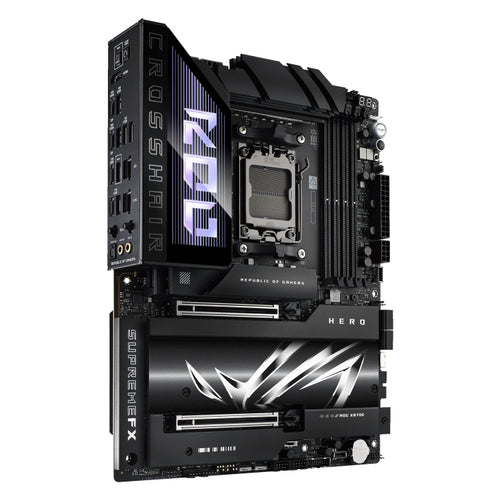

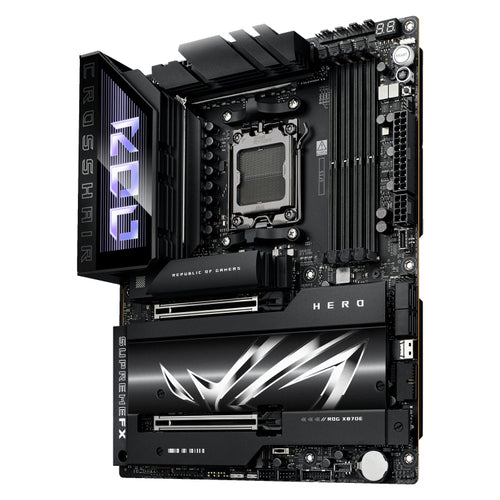

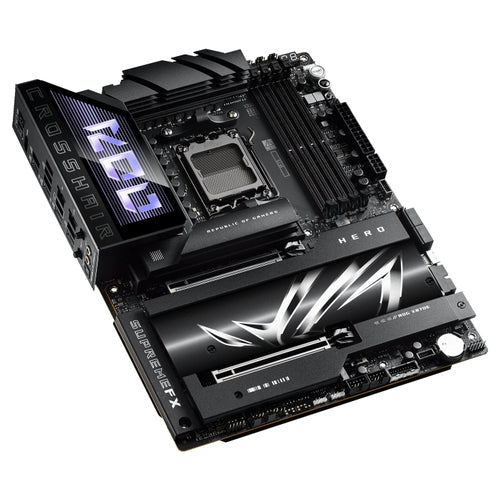

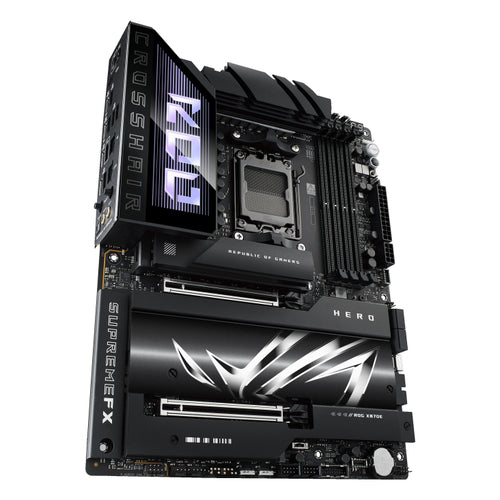

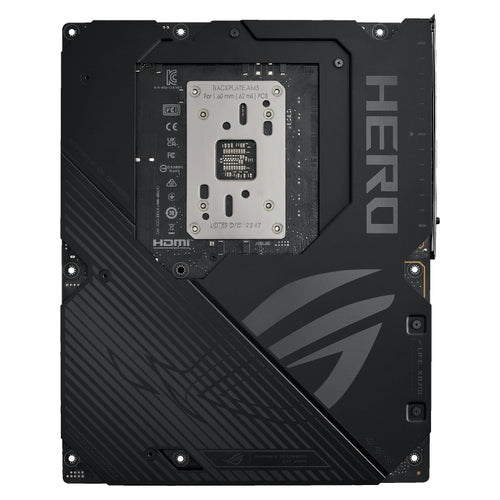

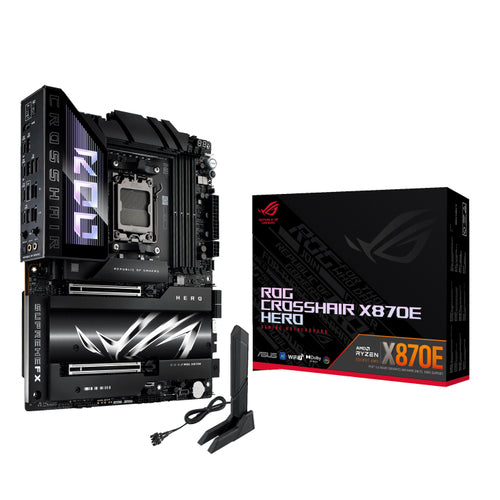

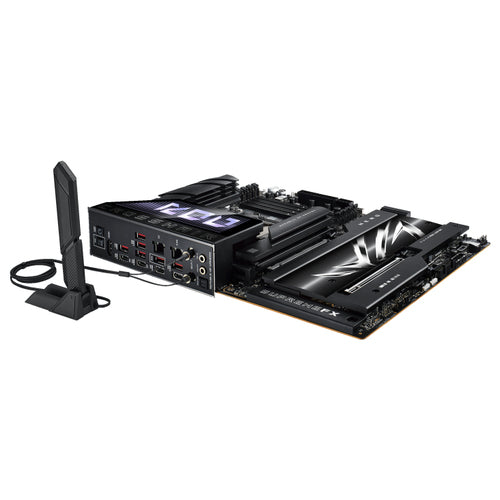

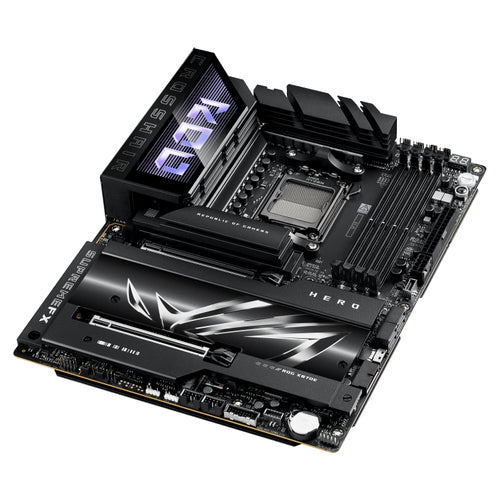

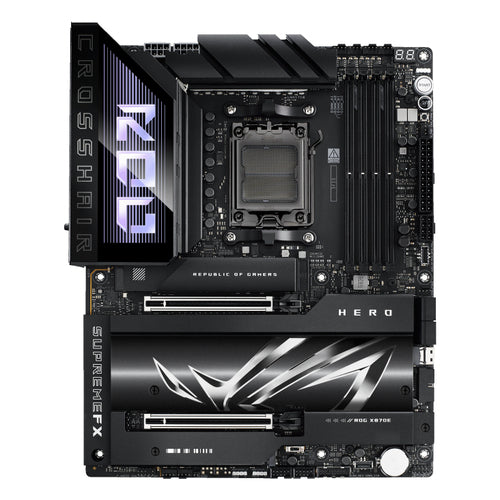

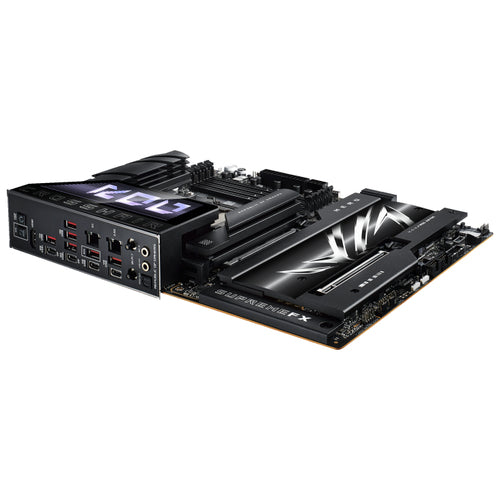

90MB1IE0-M0UAY0 - ASUS ROG CROSSHAIR X870E HERO AM5 AMD MOTHERBOARD
$1,865.88
Free shipping over $299
Genuine product
7-day returns
90MB1IE0-M0UAY0 - ASUS ROG CROSSHAIR X870E HERO AM5 AMD MOTHERBOARD
Technical Specifications
| Processor manufacturer | AMD |
|---|---|
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen 7000 Series,AMD Ryzen 8000 Series,AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & non-ECC |
| Supported memory clock speed (max) | 8600 |
| Maximum internal memory | 192 |
| Unbuffered memory | Y |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2,SATA III,SlimSAS |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 10 |
| RAID support | Y |
| RAID levels | 0,1,5,10 |
| Parallel processing technology support | Not supported |
| On-board graphics card | N |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 2 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Y |
| ATX Power connector (24-pin) | Y |
| CPU fan connector | Y |
| Number of chassis fan connectors | 4 |
| EPS power connector (8-pin) | Y |
| 12V power connector | Y |
| RGB LED pin header | Y |

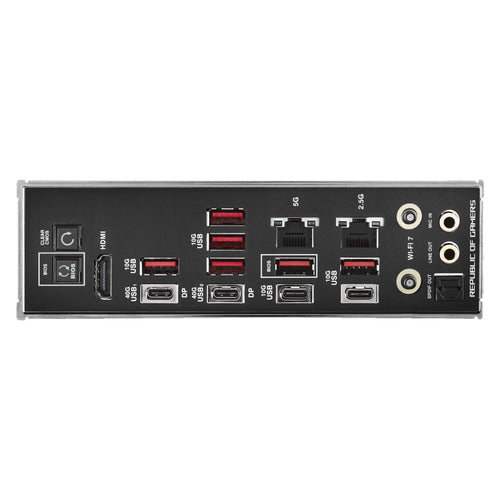

| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB4 Gen 2x2 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPort version | 1.4a |
| Headphone outputs | 1 |
| Line-in | Y |
| Microphone in | Y |
| S/PDIF out port | Y |
| WiFi-AP antenna jack | 2 |
| Ethernet LAN | Y |
| Ethernet interface type | 2.5 Gigabit Ethernet,5 Gigabit Ethernet |
| Wi-Fi | Y |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax),Wi-Fi 7 (802.11be) |
| Bluetooth | Y |
| Bluetooth version | 5.4 |
| Motherboard chipset | AMD X870E |
| Audio chip | Realtek ALC4082 |
| Audio output channels | 7.1 |
| Product colour | Black |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Windows 11 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| Number of M.2 (M) slots | 5 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 |
| BIOS flashback button | Y |
| Width | 305 |
| Depth | 244 |

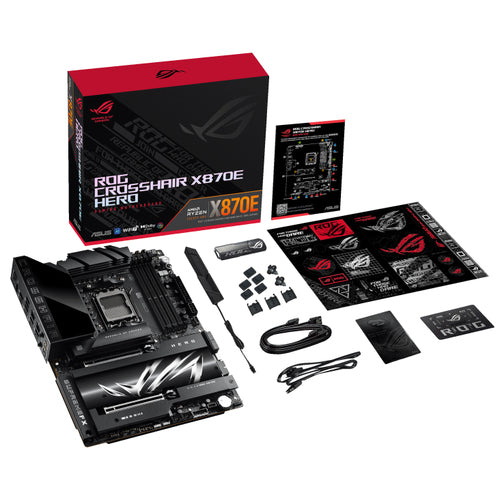

| Cables included | SATA |
| Quick installation guide | Y |
