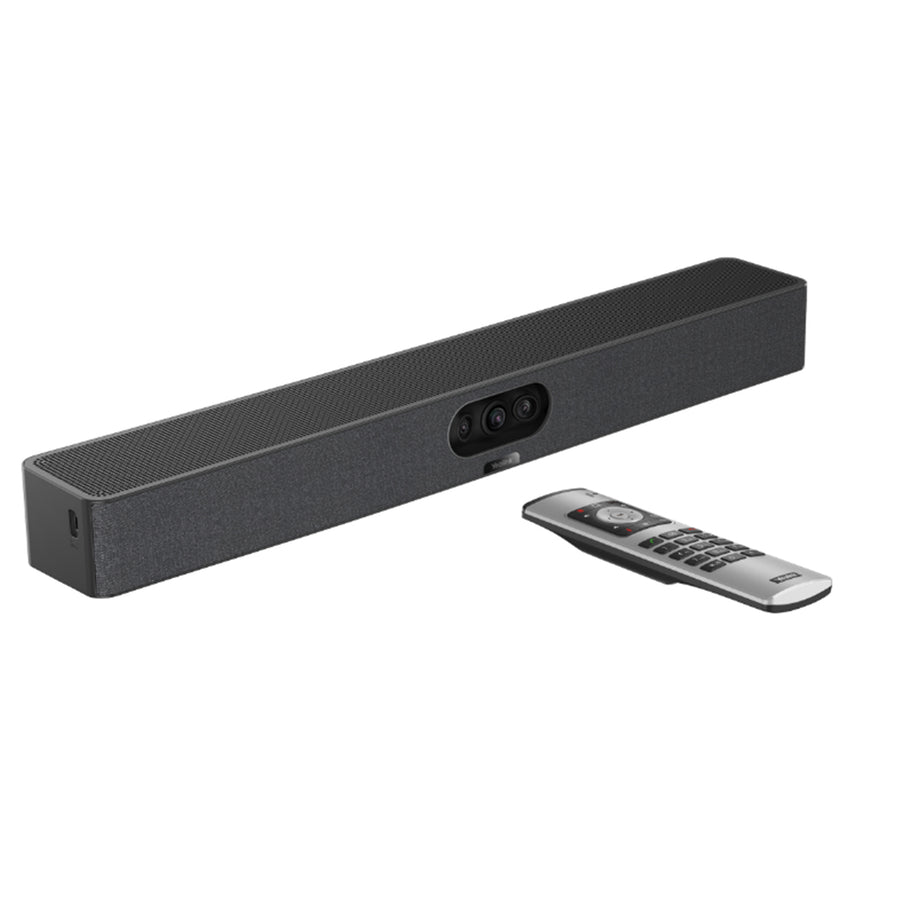

A25-010
Features
Designed for Simplicity
MeetingBar A25 is an all-in-one video bar designed for compact focus rooms, offering easy deployment and seamless use.

Built for Wide. Tuned for Clear.
The MeetingBar A25 offers a precisely calculated 151° field of view, perfectly balancing ultra-wide coverage with clear image quality. Designed for real-world focus rooms with curved tables pushed against the walls, it uses one ultra-wide lens plus two telephoto lenses to maintain sharp, edge-to-edge visibility--capturing every participant clearly in tight spaces.

Be Impressive with AI-Powered View
The MeetingBar A25 ensures everyone is equally impressive and important in a virtual meeting. Embrace a new level of meeting equity.

Hear and Be Heard with AI-Powered Audio
A25 ensures smooth communication with full-duplex audio, letting everyone speak and be heard at the same time without overlap. Its advanced AI-Enhanced Noise Cancellation filters out background sounds, delivering clear, natural voice quality in any space.

Simplify with One Plug
MeetingBar A25's One-Cable Solution simplifies deployment and sharing in 2 ways. A single Cat5e cable from the bar to the touch console provides power and network connectivity to the touch console, eliminating extra cables. Signing in on the touch console synchronizes the entire system, removing the need to sign in on the touch console. Additionally, a single USB-C cable from the touch console to the PC enables 4K sharing,

Flexibility Maximized
The touch console CTP25 can be mounted on the desk or wall, and it offers flexible connectivity options with direct connection to the bar or via IP.

Android Based, Meetings Secured
MeetingBar A25, based on Android 13, supports the Microsoft Device Ecosystem Platform (MDEP), ensuring a future-proof and secure meeting experience that effectively combats malicious attacks and data leaks.

Specifications
Technical Specifications
| Operating System | Android 13 |
|---|---|
| Maximum pixels | 3 x 4K Camera |
| Number of preset positions | 9 |
| Electronic gimbal | Yes |
| Ultra-Wide Camera | 1x, HFOV 151°, VFOV 81° |
| TeleCamera | 2x, HFOV 84.4°, VFOV 53.1° |
| Depth of field | 0.4-2.5 meters |
| Maximum resolution | 4K |
| Maximum frame rate | 30FPS |
| Privacy cover | Electric lens cap |
| Lens calibration | Yes |
| Intelligence Features | IntelliFocus (2 portraits)Auto FramingSpeaker TrackingPicture in PictureVideo FenceSmart Gallery (Zoom Rooms only) |
| Number of cameras | 3 |
| Built-in Speaker | 10W |
| Maximum sound pressure level | 110dBSPL 10W @ 0.1m |
| Frequency response | 100-16kHz |
| Sensitivity | 86dB SPL @ 1W @ 0.5 meter |
| Sampling rate | 48kHz |
| Sound emission angle | Forward-facing |
| Total Harmonic Distortion (THD) | at 10W, 1kHz, <5% |
| Rated impedance | 4 ohms |
| Maximum power | 12W |
| Rated power | 10W |
| Microphone Array | 8 MEMS microphones built-in |
| Pickup distance | 5-meter pickup, 3.5-meter high-quality pickup |
| Signal-to-noise ratio | 72dB |
| Maximum sound pressure level | 130dBSPL (whole device), 100dBSPL (individual microphone) |
| Dynamic range | 28-100dBSPL |
| Sensitivity | -38dBV/pa |
| Frequency response | 100-20kHz |
| Sampling rate | 48K32bit |
| Bit depth | 32-bit |
| Resolution | Portrait resolution: up to 4K30fps |
| Bandwidth requirement | 10Mbps or more |
| General Mode | Up to 4K15 |
| Teams | 1080p in meeting, 4K local sharing |
| Zoom | 1080p |
| Video Codec | H.264 High profile, H.264 SVC, H.264 |
| Communication standard protocol | H.323/SIP in General ModeDual stream protocol: H.239 (H.323) / BFCP (SIP)FECC: H.224/H.281H.323 protocol suit: H.245, H.225, H.235, H.241Gatekeeper account and SIP account |
| Audio Codec | ARES: 24KHZ bandwidthG.722.1C: 16KHz bandwidthG.722.1: 8KHz bandwidthG.722: 8KHz bandwidthG.711 (PCMA/PCMU): 4KHz bandwidthG.729: 8KHz bandwidth |
| Wi-Fi | Wi-Fi 6, 2.4G & 5G dual-band, 802.11a/b/g/n/ac/ax, 2x2 MIMO |
| Bluetooth | Bluetooth 5.1 |
| Other Network Features | TCP/IP (IPv4/IPv6), DHCP/static IP, HTTPS secure web access |
| Management Methods | Automatic configuration via web page/display/AutoP, Firmware upgrade, factory reset, Configuration import and export, System log export |
| Device Management | Yealink Https Web PortalYealink Device Management PlatformYealink Management Cloud ServiceMicrosoft Device Management Platform (Microsoft Teams Admin Center/Intune)Zoom Device Management |
| Mounting Options | Wall mountTV Mount (optional)Desktop placement (optional) |
| Ports | 1x USB2.0 Type-A port1x USB2.0 Type-C port (side)1x USB3.0 Type-C port1x Ethernet port1x Yealink VCH port (RJ-45)1x HDMI-out port1x 3.5mm Line-out port1x Power port1x Security lock slot1x Reset slot |
| Included | MeetingBar A25Power adapterHDMI cable x1Network cable x1USB A to C cable x1Wall Mount x1 |
| Optional Package | A25-010: A25 + USB C to C cable + VCR11A25-031: A25 + CTP25 |
| Operating humidity | 10 - 95% |
| Operating temperature | 0 - 40°C |
| MeetingBar A25 Dimensions (W × D × H) | 570 x 80 x 65 mm |
| Net Weight (N.W/CTN) | 3.812 kg |
| Gross Weight (G.W/CTN) | 4.290 kg |
| Brand | Yealink |
|---|---|
| Product Type | UC & Video Conferencing > Video Conferencing |
| Weight | 2.063 kg |
| Warranty |
|---|
