ACCO - TECHNOLOGY PRODUCTS KTG SD4840P USB-C TRIPLE 4K 85W PD DOCK
Features
Driverless USB-C Connectivity
No driver to download, install or update. 10Gbps data transfer speed and 85W Power Delivery (PD 3.0) make this an ideal solution for all USB-C Windows laptops supporting DisplayPort Alt Mode and Power Delivery.
Universal Windows Compatibility
Connects seamlessly to any laptop running Windows 7 and above.
Numerous Video Ports
With 2 x DisplayPort++ 1.4 ports and 1 x HDMI 2.0b port, select the right connections and resolutions for your needs. Resolutions supported vary by the device connected
Dynamic Video Support
Supports a minimum resolution of Single 4K @ 30Hz, Dual 1080p @ 60Hz and Triple 1080p @ 30Hz when connected to a DP1.2/HBR2 device and a maximum resolution of Single 5K @ 60Hz, Dual 4K @ 60Hz and Triple 4K @ 30Hz when connected to a DP1.4 HBR3 DSC device.
85W Power Delivery
Quickly and easily charge any Thunderbolt 3, Thunderbolt 4 or USB-C enabled laptop (USB-C laptops must support Power Delivery).
9-in-1 Design with 4 x USB-ports

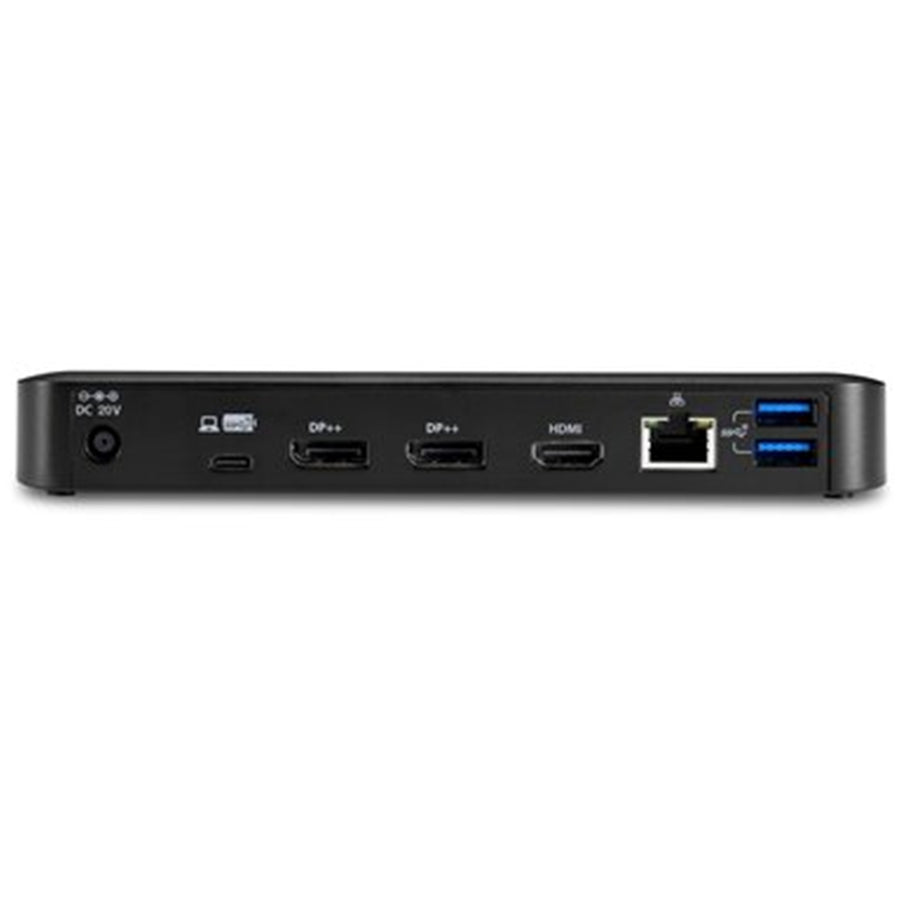

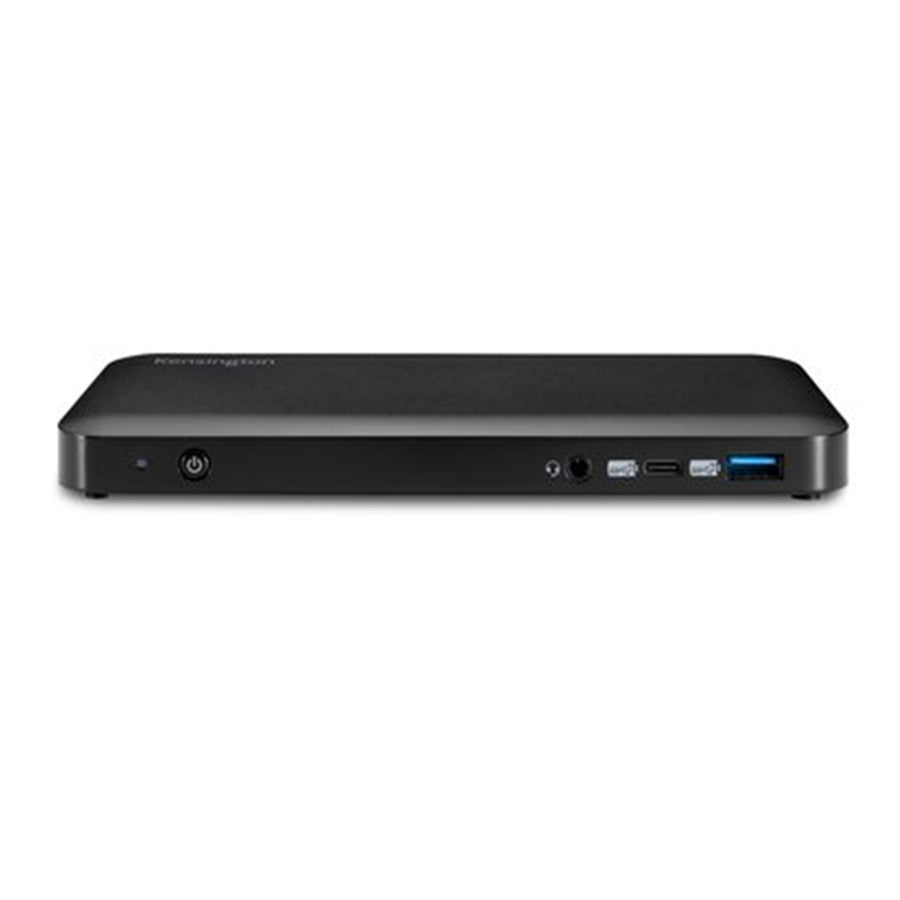

The front side features 1 x USB-C 3.2 Gen2 port (up to 5V/1.5A/10Gbps), 1 x USB-A 3.2 Gen2 port (up to BC1.2, 5V/1.5A and Apple Charging, 5V/2.4A/10Gbps) and a combo audio port. The rear features 2 x USB-A 3.2 Gen2 ports (up to 5V/0.9A/10Gbps), a Gigabit Ethernet port, 2 x DP++ 1.4 ports and 1 x HDMI 2.0b port.
Flexible Mounting Options
Can be set up vertically or horizontally.
Specifications
Technical Specifications
| Connection technology | USB-C Alt Mode |
|---|---|
| Driverless | Yes |
| Number of Screen Outputs | 3 |
| Video ports | DisplayPort++, HDMI |
| Maximum resolution | 4K |
| Power delivery | 85W |
| Operating system(s) | Windows |
| Number of USB ports | 4 |
| USB fast charging | Yes |
| Docking station family | The Task Master |
| DockWorks | Yes |
| Best For | USB-C laptops and Ultrabooks that support Power Delivery, and monitors that support up to Triple 4K |
| Compatibility | Windows 7 or above |
| USB-A ports | 3x: (1) USB-A 3.2 Gen2 (front) with up to 5V/2.4A fast-charging & (2) USB-A 3.2 Gen2 (back) supporting 5V/0.9A |
| USB-C ports | 1 x: USB-C 3.2 Gen2 (front) with 5V/1.5A charging |
| Audio | 1 x 3.5mm Combo Microphone & Headphone Port (front) |
| Data transfer speeds | Supports up to 10Gbps data transfer speed |
| Ethernet Speed (Mbps) | 1000, 100, 10 |
| Maximum resolution supported | Minimum resolution (DP1.2/HBR2): Single 4K @ 30Hz, Dual 1080p @ 60Hz, Triple 1080p @ 30Hz // Maximum Resolution (DP1.4/HBR3 DSC): Single 5K @ 60Hz, Dual 4K @ 60Hz, Triple 4K @ 30Hz |
| Plug & play | Plug & play installation without need for drivers or downloads |
| Security slot compatibility | Kensington Security Slot |
| System requirements | Host device must support Power Delivery and DisplayPort Alt mode over USB-C |
| USB-C Power Delivery | Supports USB-C PD 3.0 (85W of laptop charging) |
| Video output | 2 x DisplayPort++ v1.4, 1 x HDMI v2.0b |
| 4K support | Yes |
| Brand | ACCO - TECHNOLOGY PRODUCTS |
|---|---|
| Product Type | Computers & Tablets > Docking Stations |
| Weight | 0.5 kg |
