Features

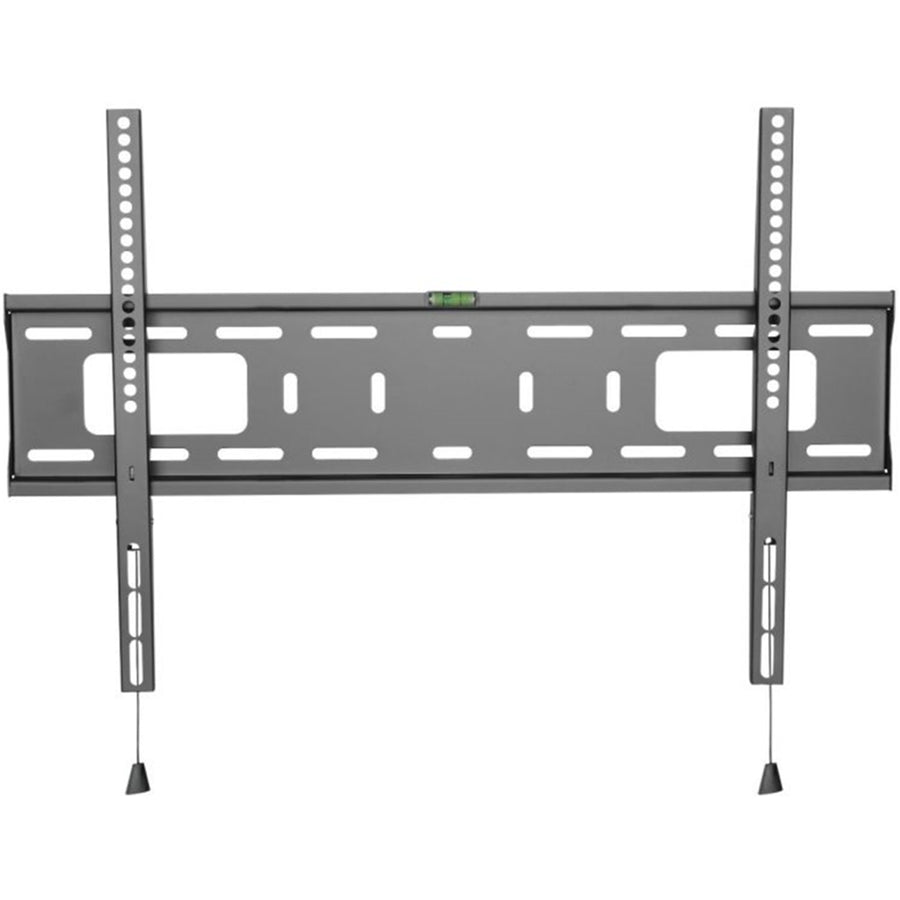

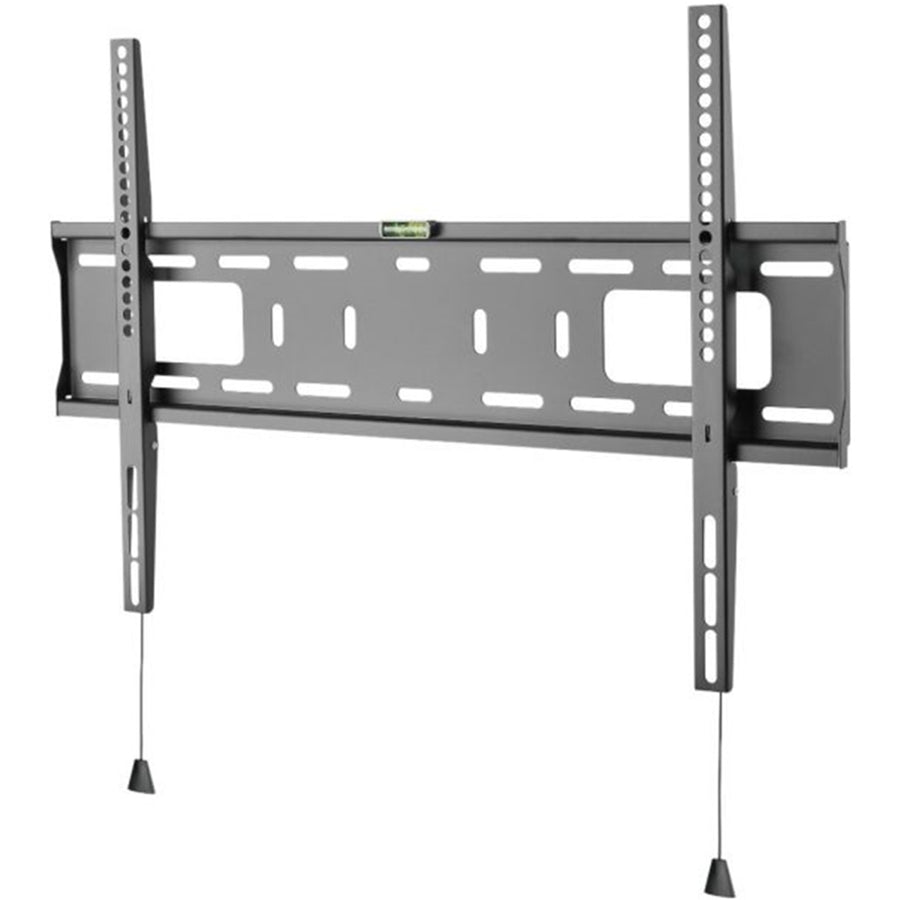

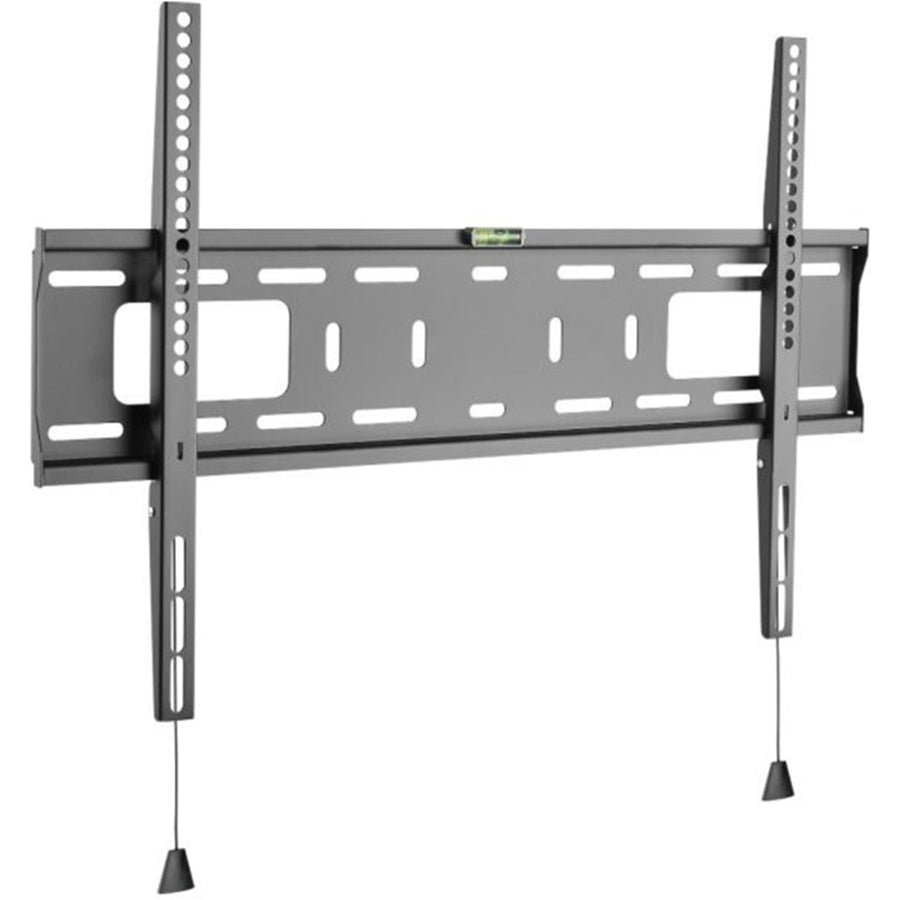

Atdec AD-WF-5060 - Mounting kit (fixed wall mount) - for LCD display
AD-WF-5060 is an effective solution for mounting most single displays.
It is intended for use where wider wall brackets are required, particularly for stud walls with 24" stud spacing.
It is designed for displays to 110lbs (50kg) and universal VESA patterns to 600x400.
It displays parallel to the wall, with a low 1" (25mm) profile. Its versatility and compact construction makes AD-WF-5060 suitable for commercial, domestic, and most light industrial environments.
It suits most types of walls (with appropriate hardware*) and demonstrates Atdec's easy installation ethos, with an integrated spirit level and slotted mounting holes. The brackets allow minor lateral adjustment to position the display precisely as desired.
*wall mount hardware not included
- Stud walls with 24" spacing
- Robust functionality & long service life
- Easy, safe & tidy installation
- Superseding Atdec's TH-3060-UF
Specifications
Technical Specifications
| Product code | AD-WF-5060 |
|---|---|
| Material | Steel |
| Recommend Use | LCD display |
| Max Load Weight | 50kg |
| Flat screen: maximum supported weight, lb | 110 |
| VESA mounting hole pattern | Universal, 100x100, 200x100, 200x200, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x400 |
| Range of motion | Fixed angle |
| Tilt adjustment | 0° |
| Pan adjustment | 0° |
| Landscape to portrait screen rotation | No |
| Minimum distance from wall (inches) | 1" (25mm) |
| Maximum distance from wall (inches) | 1" (25mm) |
| Length, single unit (inches) | 26.4 |
| Width, single unit (inches) | 6.2 |
| Height, single box (inches) | 1.2 |
| Weight, single unit, lb | 4.4 |
| Length, master carton (inches) | 27 |
| Width, master carton (inches) | 10.5 |
| Height, master carton (inches) | 6.7 |
| Single units per master pack | 8 |
| Weight, master carton, lb | 36.1 |
