ADJSHELFHD - STARTECH.COM 1U 4-POST SERVER RACK SHELF - NETWORK CABINET SHELF LTW
ADJSHELFHD - STARTECH.COM 1U 4-POST SERVER RACK SHELF - NETWORK CABINET SHELF LTW
Overview
Add a high capacity, adjustable depth fixed shelf into almost any 4-Post server rack or cabinet

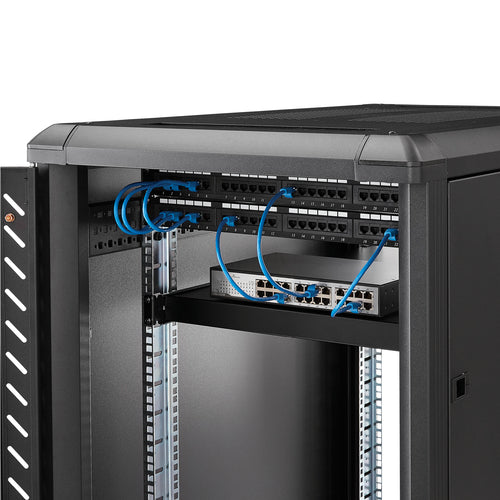

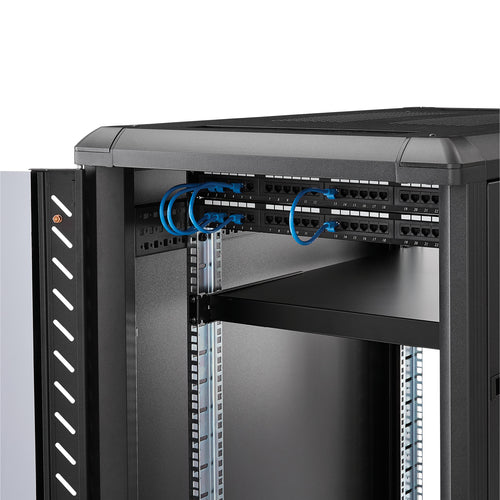

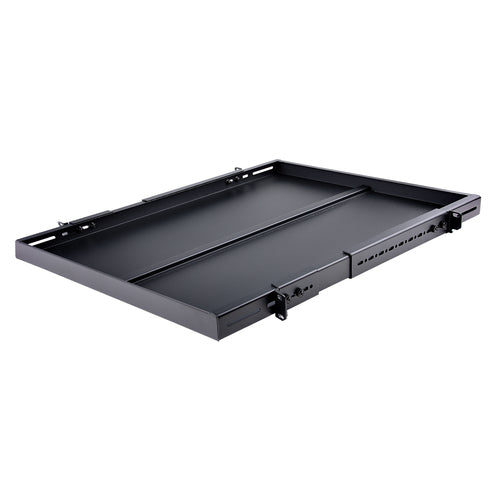

The ADJSHELFHD 1U 4-post Adjustable Heavy Duty Fixed Rack Mount Shelf lets you add a high-capacity, adjustable 1U shelf to virtually any standard 4-post 19-inch server rack or cabinet.
This heavy duty rackmount shelf can be adjusted from 19.5in to 38in (mounting depth) to fit your rack. Constructed using 1.0mm SPCC commercial grade cold-rolled steel, providing the ability to hold up to 150kg (330lbs) of equipment - a durable solution for storing large, non-rackmount pieces of equipment, heavy tools or peripherals in your rack or cabinet.
The ADJSHELFHD is backed for life, including free lifetime 24/5 multi-lingual technical assistance.
- UNIVERSAL 19'' FIT: This server rack mount shelf is designed to fit any 19in 4-post server rack and has a fixed surface depth of 27.56in, and an adjustable mounting depth range of 19.5-38in for your data, networking or other small-form tools / equipment
- COMPACT DESIGN: The adjustable rack shelf features a very compact form factor, making it ideal for non-rackmount equipment, tools and peripherals in your home, studio or office space

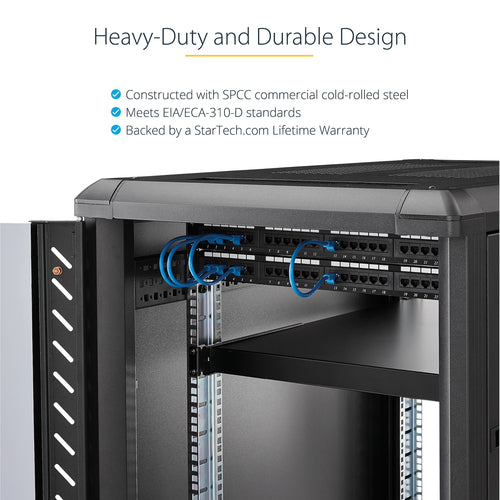

- HEAVY-DUTY & DURABLE DESIGN: Constructed with SPCC commercial cold-rolled steel, the sturdy IT-grade cabinet shelf ensures long term durability and supports a total weight load of 330 lb / 150 kg
- VERSATILE FUNCTIONALITY: With a surface depth of 27.56in and adjustable mounting depth range of 19.5-38in, this shelf can work with any 19 inch cabinet or equipment rack; It provides additional storage space for your tools or A/V accessories
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this adjustable rack shelf is backed for life, including free lifetime 24/5 multi-lingual technical assistance

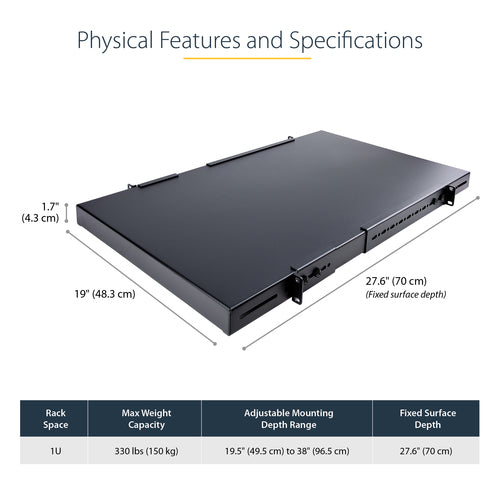

Technical Specifications
| Type | Adjustable shelf |
|---|---|
| Product colour | Black |
| Housing material | Steel |
| Maximum weight capacity | 150 |
| Rack capacity | 1U |
| Compliance industry standards | EIA RS310-D |
| Country of origin | China |
| Width | 483 |
| Depth | 700 |
| Height | 44 |
| Material thickness | 1 |
| Mounting depth (min) | 495 |
| Mounting depth (max) | 974 |
| Weight | 6200 |
| Package width | 764 |
| Package depth | 538 |
| Package height | 113 |
| Package weight | 6800 |

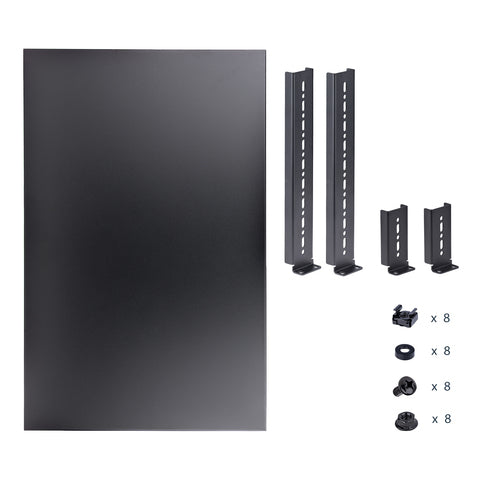

| Mounting kit | Y |
| Quick installation guide | Y |
| Screws included | Y |
| Number of screws | 16 |
| Cage nuts included | Y |
| Number of cage nuts | 8 |
| Washers included | Y |
| Number of washers included | 8 |
| Sustainability compliance | Y |
| Compliance certificates | CE,RoHS |
| Master (outer) case width | 784 |
| Master (outer) case length | 555 |
| Master (outer) case height | 578 |
| Products per master (outer) case | 5 |
| Harmonized System (HS) code | 85389099 |
Official Product Video
