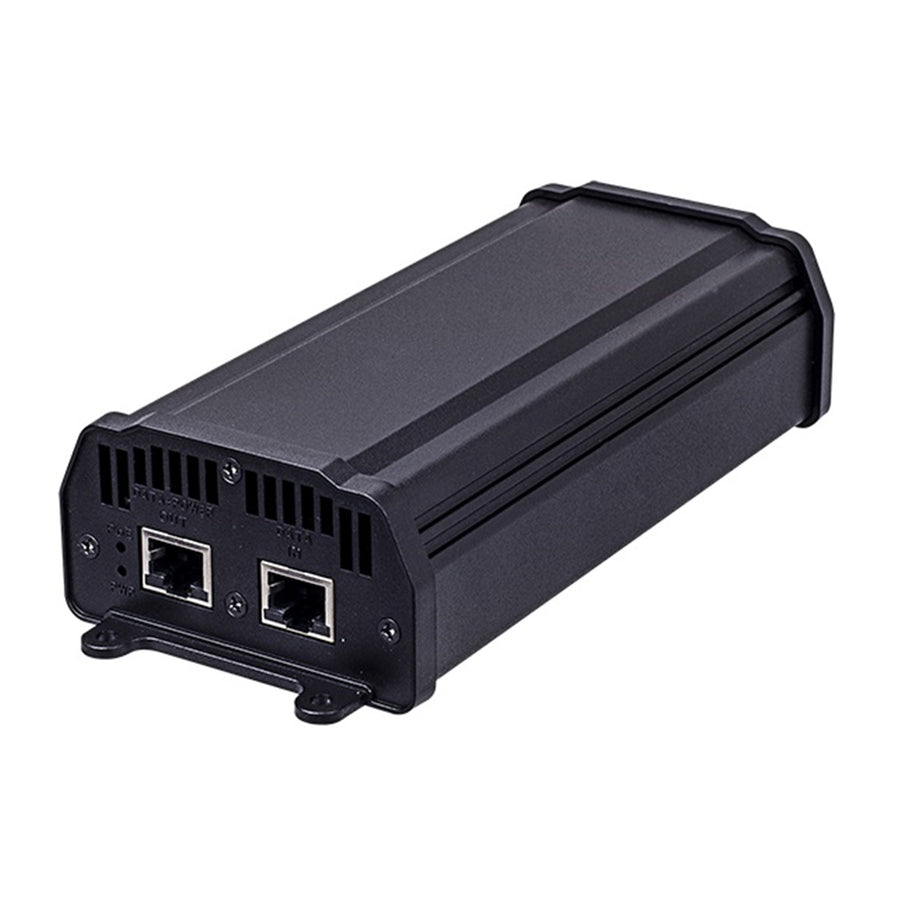

AETEK I36-200 Ultra PoE 60W injector

Name: AETEK I36-200 Ultra PoE 60W injector
Brand: Aetek
SKU: I36-200
Price: 262.9 NZD
Availability: InStock

SKU: I36-200 ● In Stock

$228.61

inc GST ▲ +GST

Free shipping over $299 Genuine product 7-day returns

Features

I36-200 Ultra PoE 60W PoH injector

- Provide 60W PoH PoE Power Feeding on 4-pairs
- 6KV PoE surge protection
- AC power surge protection

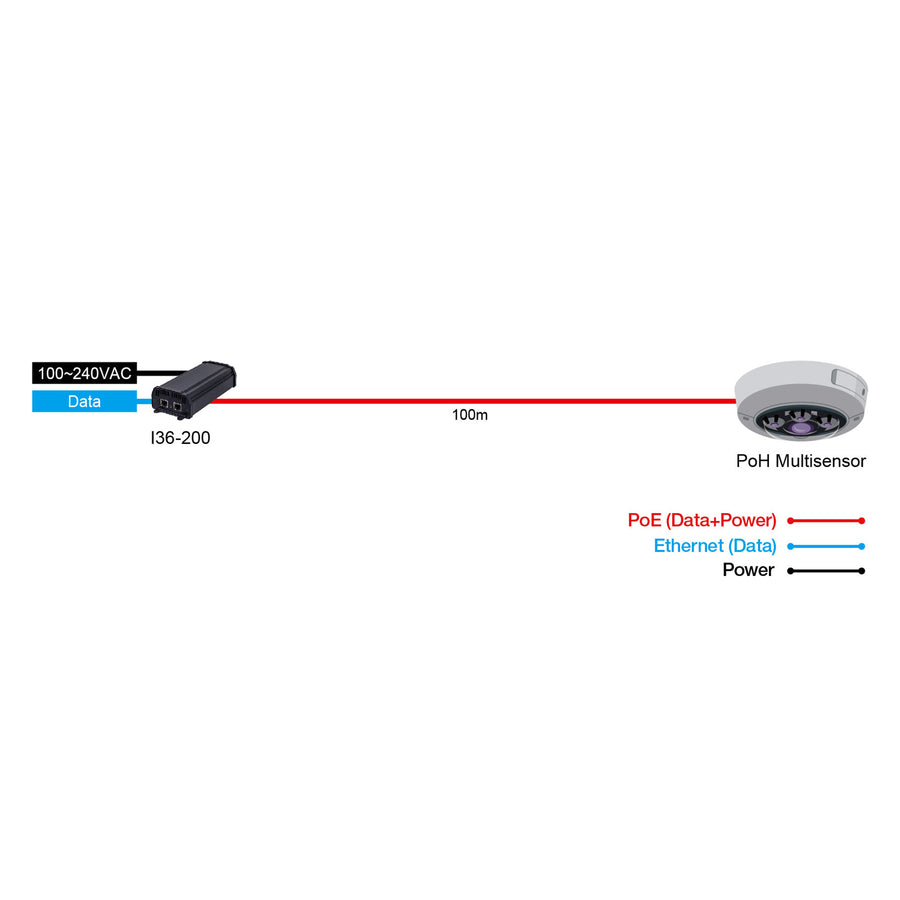

- Remote power feeding up to 100m
- IEEE 802.3 bt/at/af compliant
- Automatic detection and protection of non-standard Ethernet terminals
- Supports 10/100/1000Base-T LAN environment
- Safe and reliable power to PoE cameras or WLAN access points
-Plug-and-Play installation

Applications

Specifications

Technical Specifications

Gigabit Ethernet 10/100/1000Mbps (RJ45)	1
IEEE 802.3at Power over Ethernet	support
60W PoH PoE	Support
Input Voltage	100VAC ~ 240VAC280VAC 4hr.300VAC 1min.
Output Power	54VDC, max. 60W
Power Pin Assignment	1/2 (-), 3/6 (+); 4/5 (+), 7/8 (-)
Surge Protection Data / PoE Port	6KV
Surge Protection for AC Power	4KV
Dimensions (L x W x H)	182 x 78.6 x 41.9 mm
LED Indicators	Power, PoE
Weight	0.58 kg (1.28 lb)
Operating Temperature	-10°C ~ 50°C (14°F ~ 122°F)
Storage Temperature	-20°C ~ 70°C (-4°F ~ 158°F)
Operating Humidity	10% ~ 90% non-condensing
EMC	CE, FCC, VCCI, C-Tick
Safety	EN60950-1, IEC60950-1
Surge	IEC/EN 61000-4-5 Ed.2014+A1:2017
