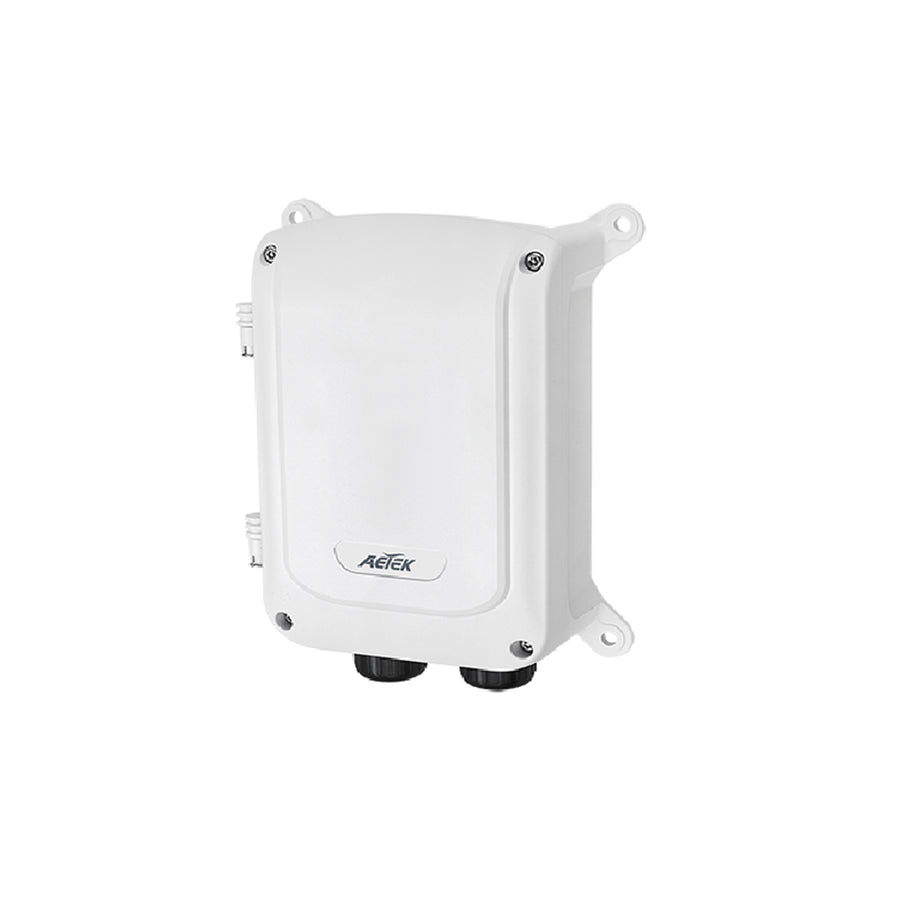

AETEK Outdoor IP67/IK10 4 x Ports at PoE Switch 48-56VDC In
Features
Outdoor 4xPoE FE+1xFE EXPoE Switch
H21 outdoor unmanaged EXPoE switch series, a IP67 / IK10 unit, operates in harsh environments between -40°C ~ 65°C for outdoor IP Surveillance application. Besides standard 802.3af/at PoE functions, the EXtensive mode delivers extreme distances of camera image & power maximum up to 250m via specific EXPoE ports for long reach PoE IP cameras. Meanwhile, the H21 series also features extra 20% range of input voltage tolerance, lightning surge protection on AC power & PoE surge protection to prevent the damage caused by outside unstable AC power, lightning surge and power spike.
The H21 series has two sub models consisting of 5-port H21-041-30-075 and 10-port H21-082-30-150 with a range of power budgets from 75W to 150W for outdoor IP surveillance.
- 2 of the 4 PoE ports can be adjusted as EX PoE mode
- Total power budget 75W
- All-in-One easy outdoor installation
- 15.4W/30W 802.3af/802.3at compliant
- 6KV PoE surge protection each port
- 10KV AC surge protection
- 20% range of input voltage tolerance
- Circuit protection prevents power interference between ports
- Detects PoE PD (power device) automatically
- EX mode OFF reaches PoE camera up to 100m @ 100Mbps via any PoE port
- EX mode ON reaches 802.3af camera up to 250m @ 10Mbps via EXPoE ports
- EX mode ON reaches 802.3at camera up to 200m @ 10Mbps via EXPoE ports
Applications
Specifications
Technical Specifications
| Total Fast Ethernet Ports | 5 |
|---|---|
| PoE Port @ EX Mode OFF | 4x30W PoE ports |
| PoE Port @ EX Mode ON | 2x30W EXPoE + 2x30W PoE ports |
| Fast Ethernet RJ45 ports | 1 |
| Mac Table | 2K |
| Jumbo Frames | 1,536 Bytes |
| Switching Capacity | 1Gbps |
| Input Voltage | 100VAC ~ 240VAC280VAC 4Hr300VAC 1min. |
| Backup Power Input Voltage | 48VDC ~ 56VDC |
| Output Voltage Range/Per PoE port | 54 VDCPoE IEEE 802.3af (Max. 15.4W) outputPoE+ IEEE802.3at (Max. 30W) output |
| PSE Power Pin Assignment | 12(+),36(-) |
| PoE Surge Protection | 6KV |
| AC Power Surge Protection | 10KV |
| Power Budget | 75W |
| Dimensions (L x W x H) | 255.2 x 199.9 x 90 mm |
| Weight | 2.1 kg (4.62 lb) |
| Connectors | M25 x 2 |
| Weather Rating | IP67 |
| Vandal Proof | IK10 |
| Operating Temperature | -40°C ~ 65°C (-40°F ~ 149°F) |
| Storage Temperature | -40°C ~ 85°C (-40°F ~ 185°F) |
| Operating Humidity | 5% ~ 95% non-condensing |
| EMC | CE, FCC, VCCI, C-Tick |
| Safety | EN60950-1, IEC60950-1 |
| Surge | EN61000-4-5 |
| Brand | Aetek |
|---|---|
| Product Type | Networking > Switches |
| Weight | 0.5 kg |
