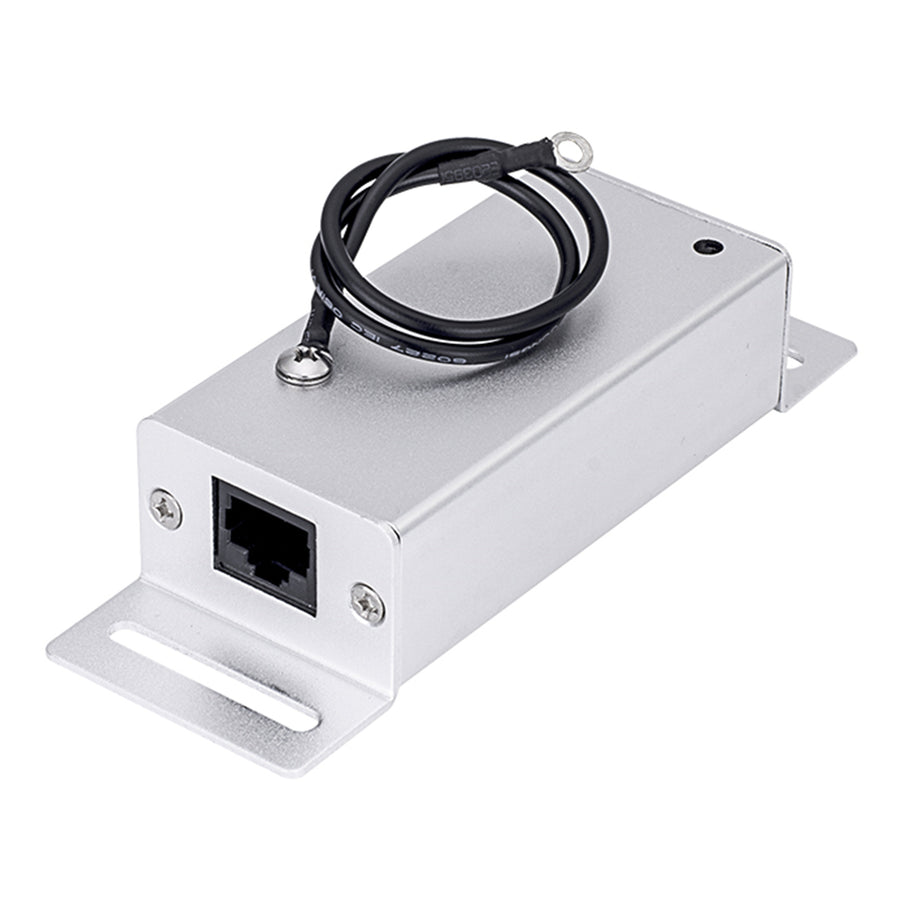

AETEK SD-101 Indoor PoE Surge Protector
Features
The SD series surge protectors are proven to keep PoE switches, PoE PDs, and other IP devices safe from lightning and other forms of electrical interference, including power surges and spikes over networking cables. Two sub-models (the SD-101 and SD-201) are classified as hardened-grade surge protectors, and will operate in harsh weather conditions from -40°C to 85 °C.
The SD-101 is designed to be deployed besides PoE switches, or inside junction or power boxes. With a robust operating temperature range, the SD-101 will prevent surges of up to 10KA and features plug-and-play installation.
- Supports 10M/100M/1G/2.5G bps Ethernet
- IEEE 802.3 bt/at/af compliant
- Support UPoE
- Protects eight wires of networking cable including PoE
- Protects up to 20KV/10KA surge
- Failure Indicator LED
- Operating temperature from -40°C to 85 °C
Applications
Specifications
Technical Specifications
| Number of Ports | 1 |
|---|---|
| Pass Through Data Rates | 10M/100M/1G/2.5G bps |
| Transmission Media | Cat. 5e,6 UTP/STP |
| PoE Supoort | 802.3af / 802.3at / 802.3bt |
| Max Discharge Current (8/20us) | 10KA |
| Maximum Operation DC Voltage | 60VDC |
| Maximum Operation DC Current | 1A for 2 pair, 2A for 4 pair, 95W maximum |
| Common Mode Protection Level (10/700us) | 20KV |
| Differential Mode Protection Level (10/700us) | 4KV |
| Clamping Voltage (Line to GND) | 600V |
| Clamping Voltage (Line to Line) | 20V |
| Insertion Loss @ 10MHz/100MHz | 1db |
| Return Loss @ 10MHz/100MHz | -20db |
| Response Time | 5ns |
| Dimensions (L x W x H) | 80 x 40 x 25 mm |
| Weight | 0.18KG |
| Connectors | RJ45 x 2 |
| Operating Temperature | -40°C~ 85°C (-40°F~ 185°F) |
| Storage Temperature | -40°C~ 85°C (-40°F~ 185°F) |
| Operating Humidity | 5% ~ 95% non-condensing |
| EMC | CE, FCC, VCCI, C-Tick |
| Surge | ITU-T K.21IEC-61643-21IEC-61000-4-5TIA-968-A (FCC Part68) |
| Brand | Aetek |
|---|---|
| Product Type | Power & Charging > Power Boards, Plugs & Adapters > Surge Boards |
| Weight | 0.5 kg |
