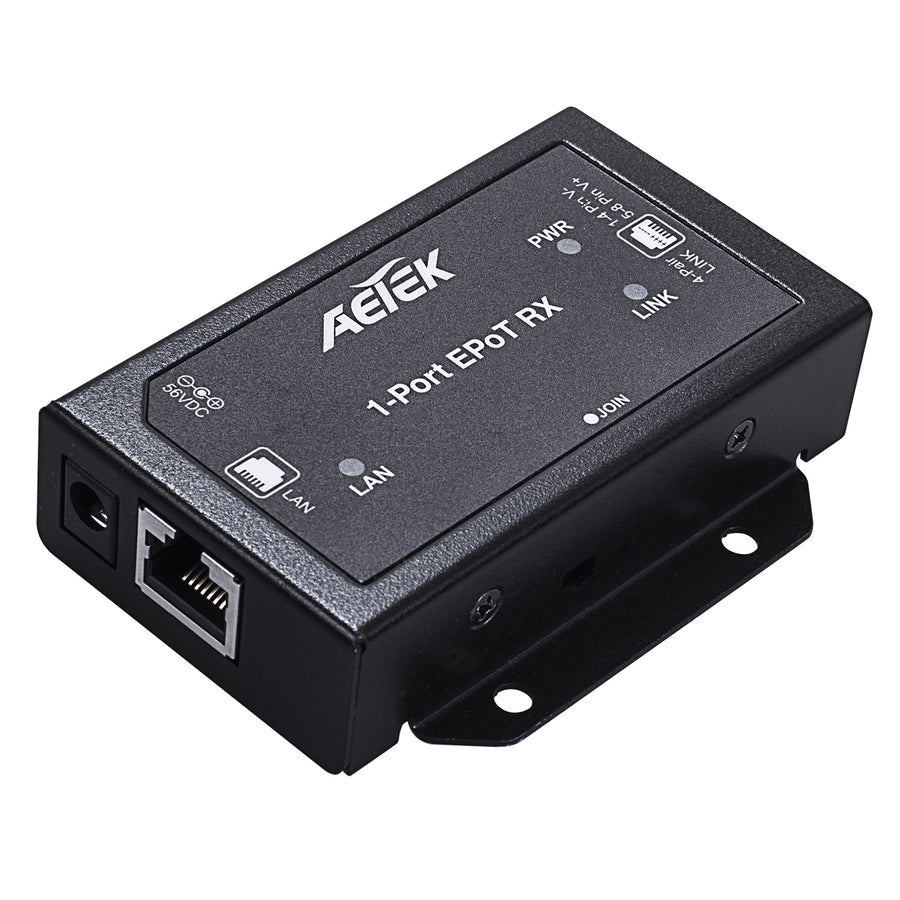

AETEK TE10-110-RX 1-Port EPoT RX Adapter 56V Input.x
Features
TE10-110-RX is an EPoT (Ethernet & Power over UTP/STP Cable) receiver(RX) equipped with 1 EPoT port & 1 LAN port. It is powered by 65W power adapter.
This cutting-edge model is a long range PoE solution providing data & power to EPoT TX adapter and PoE IP camera over single UTP/STP cable up to 1,200m(3,937ft).
- One RJ45 EPoT port & one 10/100Mbps LAN port
- Extends PoE to Transmitter(TX) and PoE IP camera
- Including 65W @ 56VDC power adapter can insert PoE for non-PoE switch
- Long-range IP data & PoE over 4-pair/2-pair/1-pair UTP /STP caat.x cables
- Supports peer-to-peer, daisy-chain, and failover Ring topologies
- Eliminates the need for intermediate Ethernet switches & power supplies for long-range deployment
- Plug-and-Play connection
- Optional 19'' 4-bay rack mount chassis(CH-100)
Applications
Specifications
Technical Specifications
| EPoT Port | RJ45 x1 |
|---|---|
| 10/100 Mbps Ethernet | RJ45 x1 |
| Transmission mode | Receiver RX mode |
| Maximum TX quantity | 7 |
| MAX.(Power+Data) Distance | 100Mbps, 9.7W @ 1,200m(3,937ft) |
| Cable Type | UTP/STP cat.x Cable |
| Bandwidth | 600 Mbps |
| Power supply | Input: 100-240VACOutput: 65W @ 56VDC Power Adapter |
| Unit Power Consumption | 3 watts |
| EPoT Surge Protection | 6KV |
| Dimensions (LxWxH) | 109 x 51.5 x 24 mm (4.29x2.03x0.94 |
| Weight | 0.2 kg (0.44 lb) |
| Connectors | EPoT RJ45 x1, LAN RJ45 x1, DC Jack x1 |
| Mounting Type | Wall mount |
| Operating Temperature | -20°C ~ 60°C (-28°F ~ 140°F) |
| Storage Temperature | -20°C ~ 85°C (-28°F ~ 185°F) |
| Relative Humidity | 5% ~ 95% non-condensing |
| EMC | CE, FCC, VCCI, C-Tick |
| Safety | EN60950-1 |
| LAN | Ethernet status |
| PWR | Power status |
| LINK | EPoT TX device connect status |
| POE | PoE status |
| Brand | Aetek |
|---|---|
| Product Type | Networking > Network Accessories |
| Weight | 0.5 kg |
