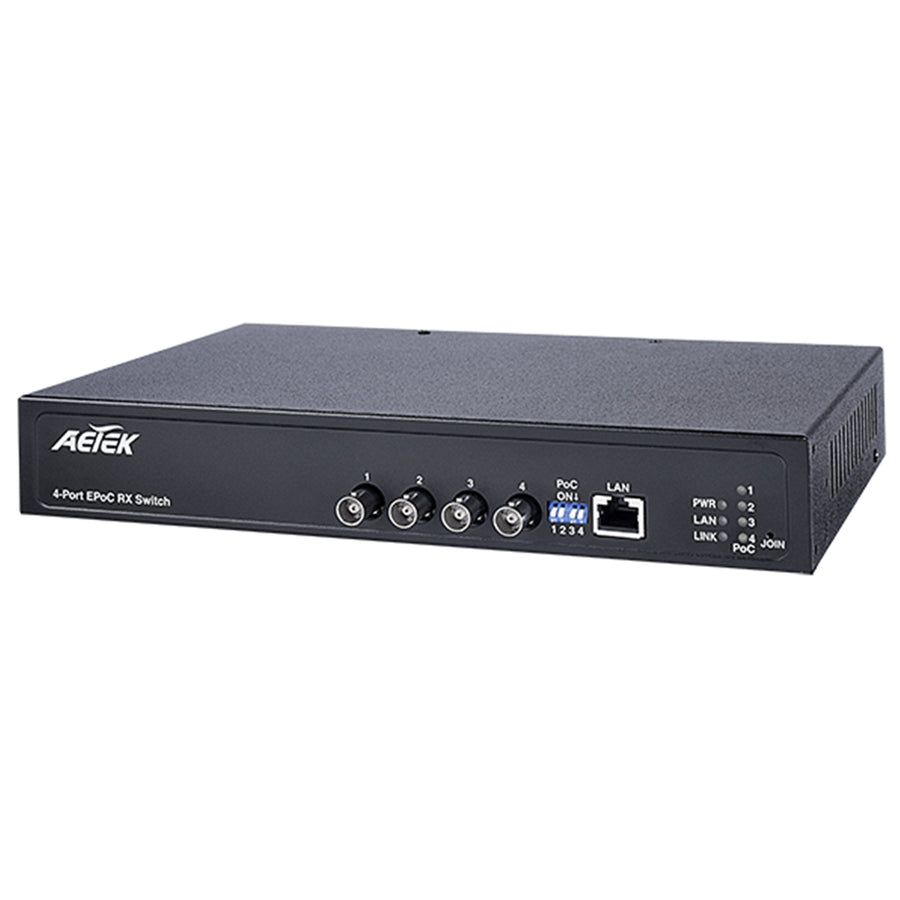

AETEK XC10-041-250 EPoC RX Switch
Features
The XC10-041-250 is a RX switch equipped with 4-ports BNC, 1-port Gigabit and the internal 250w power supply. The EPoC (Ethernet & Power over Coax) line is a long-reach solution providing data and PoE over RG6 coaxial cable up to 1200m (3937ft) for any brand of PoE IP camera. Besides long range PoE solution, this product line is also often used to upgrade legacy of CCTV to IP surveillance without changing existing RG59/RG6 coaxial cable. Furthermore, outdoor EPoC solution is a rugged and economical alternative to optical fiber, the power over coax to remote PoE IP camera is more convenient than optical fiber solution which often don't carry power.
- Four BNC coax ports & one LAN port
- Playing RX mode
- PoE pass through coax to remote PoE IP camera
- 6KV surge protection for coax port
- 250W power supply, 100~240VAC input
- Back-up 56VDC power input
- 19" Rack mount bracket
- Re-uses existing coax
Applications
Specifications
Technical Specifications
| 75 O Coaxial BNC Port | 4 |
|---|---|
| 10/100/1000Mpps Ethernet RJ45 Port | 1 |
| Transmission mode | RX mode |
| MAX.(Power+Data) Distance | 9.7W @ 1200m(3937 ft) |
| Power supply | Input: 100-240VAC 280VAC 4hr 300VAC 1min. |
| Back-up Power Input Voltage | 56VDC |
| PoE PD | - |
| PoE Pass Through | v |
| Surge Protection /each Coax Port | Built-in 6KV |
| Dimensions (L x W x H) | 276.6 x 178 x 44 mm (10.89x7x1.73") |
| Weight | 1 kg (2.20 lb) |
| Connectors | BNCx4, RJ45x1, 100-240VAC power input, 56VDC input |
| Operating Temperature | -10°C ~ 50°C (14°F ~ 122°F) |
| Storage Temperature | -20°C ~ 85°C (-28°F ~ 185°F) |
| Operating Humidity | 5% ~ 95% non-condensing |
| EMC | CE, FCC, VCCI, C-Tick |
| Safety | EN60950-1 |
| Brand | Aetek |
|---|---|
| Product Type | Networking > Switches |
| Weight | 0.5 kg |
