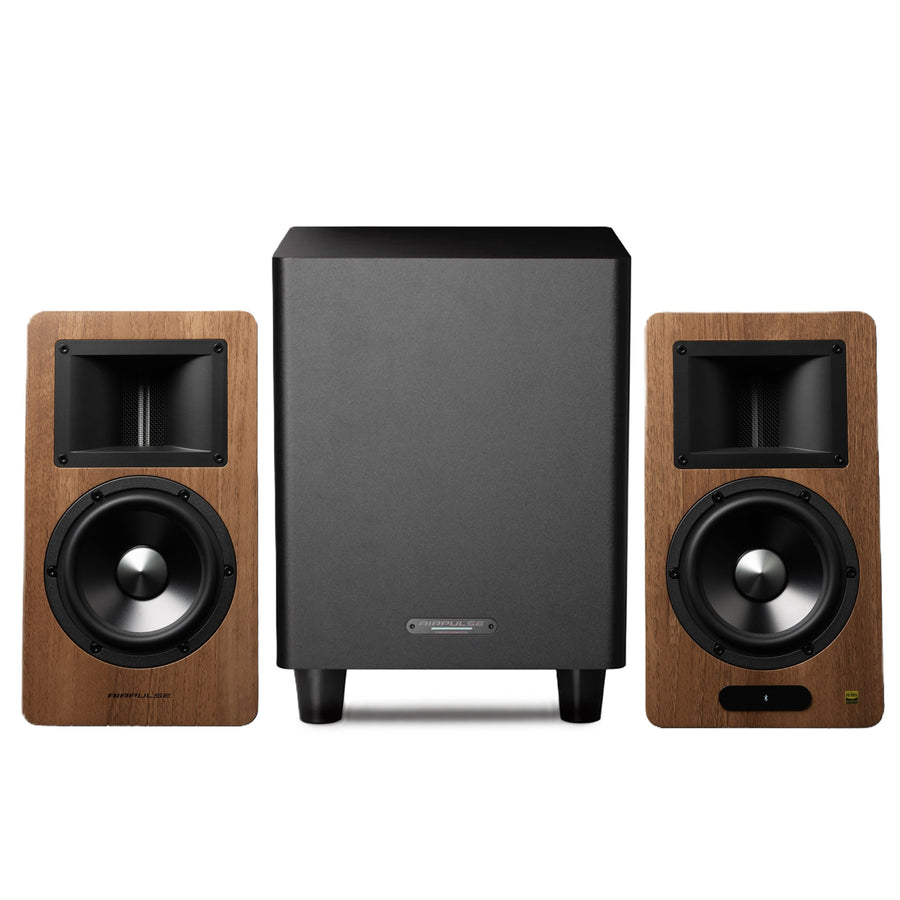

Airpulse by Edifier A200T Bookshelf Speakers + SW8 8" Subwoofer 300W 2.1 HiFi System Bundle - Walnut

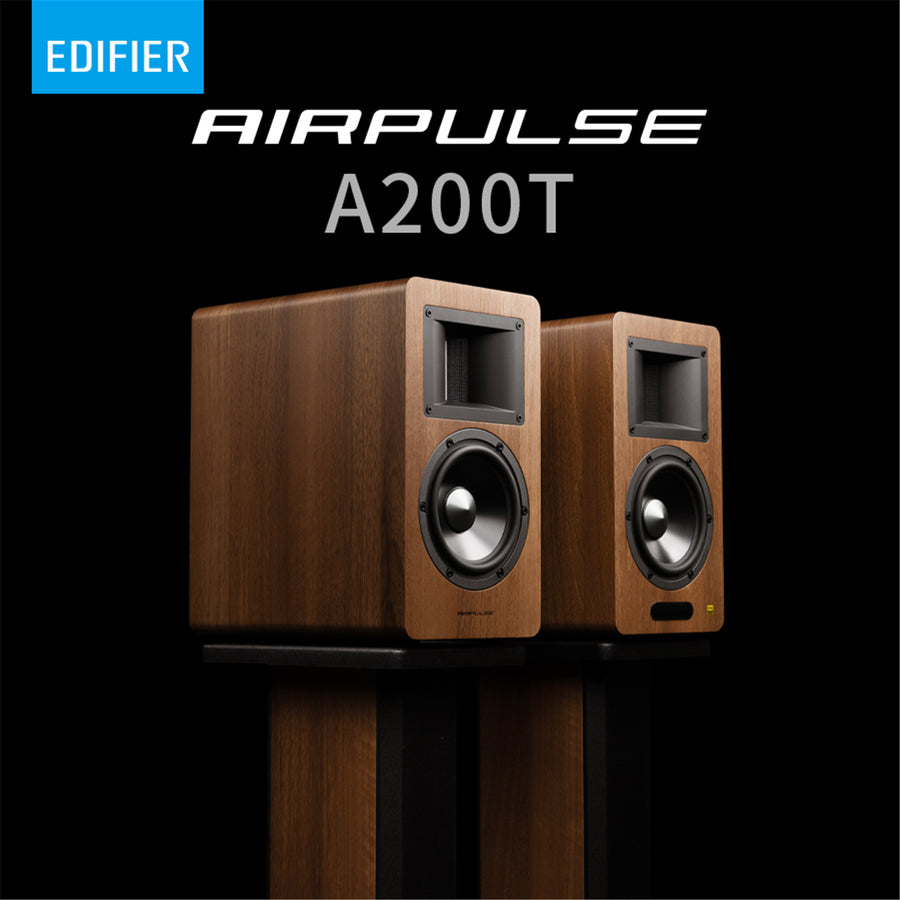

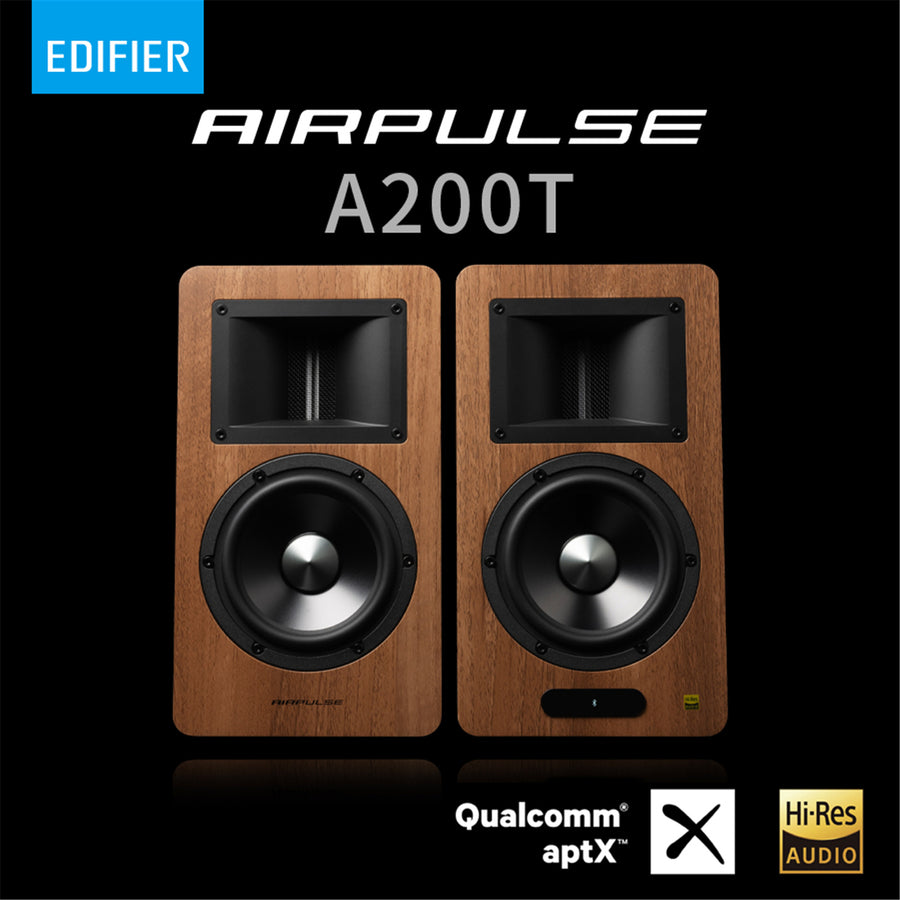

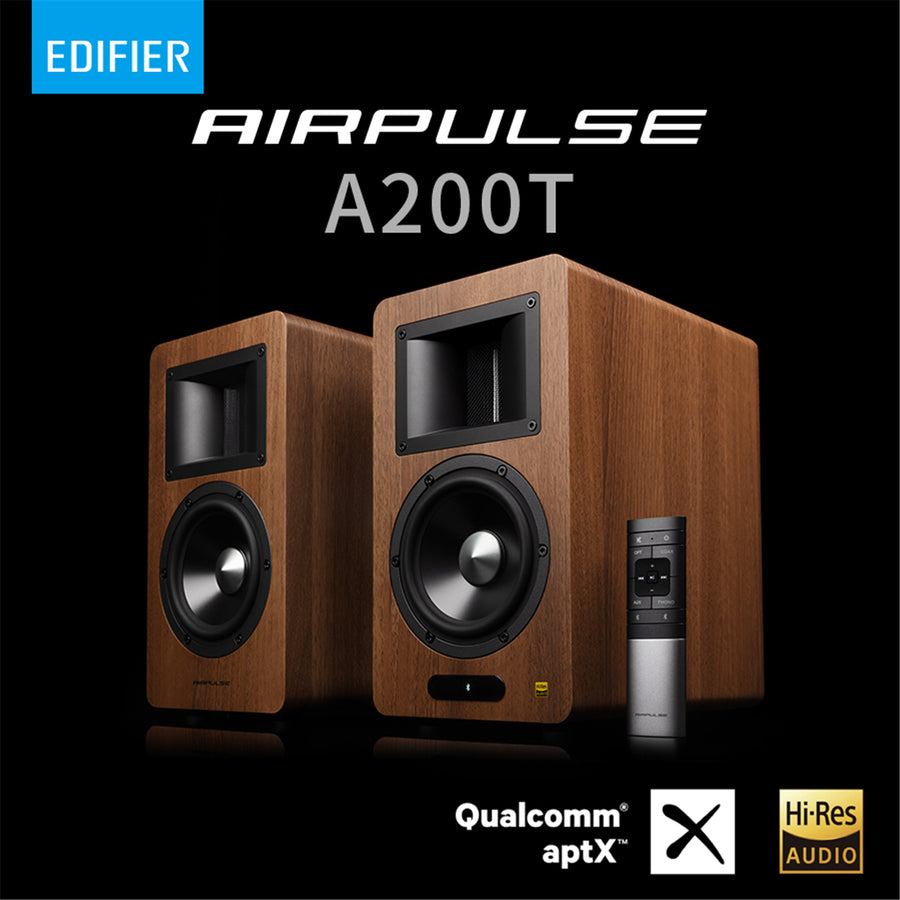

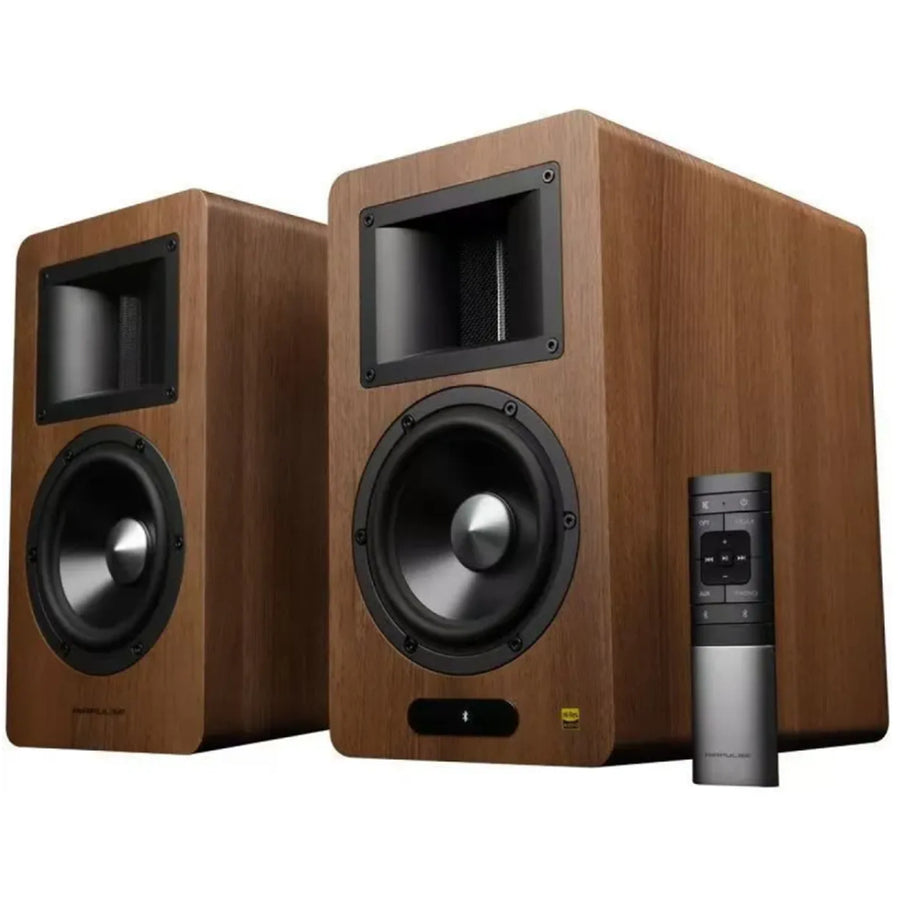

A200T The Audiophile's Dream Speaker

Legendary speaker designer Phil Jones, the visionary behind some of the most groundbreaking audio innovations, has once again redefined high-fidelity sound with the Airpulse A200T. Building on the pedigree of the iconic Acoustic Energy AE1, a speaker used by legendary artists such as Paul McCartney, Pink Floyd, Stevie Wonder, George Michael, Coldplay, and Oasis, the A200T brings studio-quality performance into the home audio realm.

With its advanced speaker design, high-efficiency amplification, and uncompromising engineering, the A200T is not just a speaker-it is a statement in sound fidelity.

Rediscover the Magic of Vinyl with A200T. The A200T is engineered for vinyl enthusiasts, featuring a dedicated PHONO input with a built-in phono preamp, allowing for direct turntable connection without the need for an external amplifier or converter. With the A200T, every record becomes an immersive experience, transporting you to the golden age of high-fidelity sound.

Phil Jones has spent a lifetime designing world-class loudspeakers, from studio monitors to high-end consumer systems. The Airpulse A200T embodies his philosophy:

- No artificial enhancement-only pure, uncolored sound
- Cutting-edge transducer design for unmatched accuracy.
- A heritage built on legendary speakers like the AE1 and AAD 7001.

This versatility ensures that the A200T is not just an audiophile speaker-it's the centerpiece of your entire music system.



For analog purists, vinyl lovers, and audiophiles, the Airpulse A200T is not just another speaker-it's an evolution in high-fidelity sound.



UNIQUE HORN-LOADED ALUMINUM RIBBON TWEETER

WITH HIGH BANDWIDTH AND WITHOUT ANY DELAY TO ENSURE TRUE REPRODUCTION OF THE SOURCE

The A200T loudspeaker from AIRPULSE features its unique "horn-loaded ribbon tweeter", based on the company's original 7001 speaker design. The tweeter utilizes an ultra-thin, pure aluminum ribbon diaphragm, with a thickness of only 0.0005 inches, or 0.0127 millimeters. This delicate ribbon, for comparison, is about 10 times finer than the average diameter of a human hair, which is approximately 0.1 millimeter. The ribbon functions as both the voice-coil and the diaphragm in this tweeter, generating sound waves by vibrating in an extremely high magnetic flux created by Neodymium Iron Boron magnets on either side. This high-precision design delivers high sensitivity, superior transient response, wide frequency extension, and excellent resolution. The result is a rich and faithful reproduction of all details in the sound. The unique horn-shaped design optimizes dispersion. Sound reaches the audience directly, reducing the impact of environmental interference, making the sound image more three-dimensional, clearer, and more natural, truthfully reproducing the content of the recording without any loss.



5.25-INCH ALUMINUM DIAPHRAGM LONG-STROKE MID-BASS UNIT

PRESENTING HEART-POUNDING ULTRA-LOW BASS FREQUENCIES AND DYNAMIC

The A200T uses a 5.25-inch Hard Anodized aluminum diaphragm long-stroke structure mid-bass driver. The diaphragm material is made of high-strength magnesium-aluminum alloy. Through the auxiliary analysis of the Klippel system, the cone geometry was optimized to considerably reduce radial and axil cone breakup modes across its operation band. The cone virtually acts as a pure piston in its motion instead of a flexing diaphragm that can soften transients causing a blunter sound quality. Resulting in greater inner detail in complex waveforms, such as multiple instruments playing simultaneously.(IE voices, strings and horns.) The mid-bass driver uses a 38MM diameter voice coil, which is significantly larger than most voice coils in a speaker of the same size. Larger voice coils have less power compression because their operating temperature is relatively low in comparison to speakers with a lesser size coil, and music dynamics appears to be more realistic. Cooler voice coils also have the added benefit of greater reliability-the speaker is much less likely to fail. The A200T  speaker features a long-throw over-hung voice coil, crafted from pure oxygen-free long-crystal copper wire. The wire is wound onto a Kapton voice-coil former that is capable of resisting temperatures up to 400°C. This design allows the voice coil to handle the huge current surges generated by heavy bass frequencies with ease. The cast aluminum alloy frame of the mid-bass unit not only has superior rigidity but also greatly reduces coloration. The cast aluminum chassis dissipates heat much faster than the typical steel speaker chassis. It further helps to dissipate heat from the voice coil. This combination greatly improves the speaker dynamics and power handling.



FULL DIGITAL AMPLIFIER

The amplifier section of the A200T Is composed of three pieces of TAS5754 Class D ampliflers. Two are connected in parallel bridge mode to drive the left and right woofers, and one is connected in bridge mode for the two tweeters. Not like normal Class D amplifier, these amplifiers feature closed-loop structure with even lower distortion. Its digital input accepts signal with up to 192KHz sample rate. Its Hybrid-Flow digital processing enrich the system processing capability even more.



Texas Instruments TLV320AIC3254 - A stereo audio codec with an integrated miniDSP for precise crossover management and dynamic EQ, ensuring seamless frequency blending.



WIMA Capacitors (Germany) - Ensuring high signal integrity, minimizing coloration, and preserving musical detail.



PHONO (RCA) Input - Built-in high-quality phono preamp for direct turntable connection. AUX (RCA) Input - Compatible with CD players, DACs, and legacy audio devices. OPTICAL & COAXIAL Digital Inputs - High-resolution playback from TVs, streamers, and digital music sources.



RCA Subwoofer Output - Seamlessly connect an active subwoofer for extended bass response with a built-in low-pass filter set at 170Hz, providing a steep 24dB/octave slope for optimal integration. This ensures a smooth transition between the main speakers and subwoofer, making the A200T a complete full-range system. Grounding Binding Post - Essential for vinyl playback, ensuring humfreeperformance when connecting a turntable.



aptX HD Bluetooth Wireless Streaming - CD-quality sound without cables, allowing you to experience high-fidelity convenience.



A200T High-Resolution Optical & Coaxial Inputs - Supporting lossless 192kHz/24bit audio, ensuring pristine sound quality from digital sources.



CABINET CONSTRUCTION BUILT FOR PURITY

The A200T cabinet is built from 18mm rigid MDF with beautiful walnut finish or attractive piano lacquer. Strong internal bracing supports and stabilizes the drivers and eliminates cabinet resonance to minimum. To further reduce coloration, cabinet interior is fully lined with 36mm thick waved sound absorption material. Each of our cabinets are lined with a 36mm of professional-grade acoustic foam. This sound absorption material reduces unwanted resonance that occurs within the speaker cabinet leaving you with only the sound you desire to hear.



The A200T cabinet uses an inverted vent design. The elliptical shape inverted vent tube from precise calculation reduces airflow noise and further improves sound quality.



TRANSPARENT SPEAKER CABLE

The A200T uses TRANSPARENT audiophile grade speaker cable  for internal wiring. Signals are transferred with utmost accuracy and minimum loss. With it, you are brought steps closer to music!





Airpulse by Edifier SW8 Premium 8" 170W Powered Subwoofer

Airpulse proudly presents the SW8 Powered Subwoofer, a masterpiece crafted by audio legend Phil Jones. Designed for high-performance home theater systems and 2.1 music setups, the SW8 stands out with its compact form and exceptional bass delivery, defying industry standards.

This subwoofer is more than typical - it's a harmonious addition to your main speakers. It integrates flawlessly with Airpulse A80, A100, and SM200 active speakers, together elevating your audio experience. This dynamic synergy immerses you in a sound spectrum where every note is not just heard, but felt.

Unprecedented Raw Power

The SW8 delivers a formidable punch with its 8" "LONG THROW" active drive unit and a powerful 160W RMS CLASS D Amplifier, consisting of the TPA 3251 and a pure power supply. Experience rich, commanding bass like never before from an 8-inch subwoofer.



Precision in Every Note

Featuring an ANALOG pre-amp, the SW8 ensures precise and impactful audio delivery. It allows you to experience music and movies with a clarity that captivates and demands attention.



Customizable Audio Experience

Take command with the SW8's gain, variable low-pass crossover, and phase controls. Customize low-frequency tones to blend seamlessly with your speakers, creating an audio atmosphere tailored to your space.



Universal Compatibility, Seamless Integration

The SW8 effortlessly connects with standard home theater receivers through its Line level/LFE RCA inputs. It offers superior sound without complications, integrating smoothly into your setup.



Aesthetic Excellence

The SW8 isn't just about audio supremacy; its design is visually discreet, blending effortlessly with any decor. It adds an elegant touch to your entertainment space, elevating both its look and sound.
