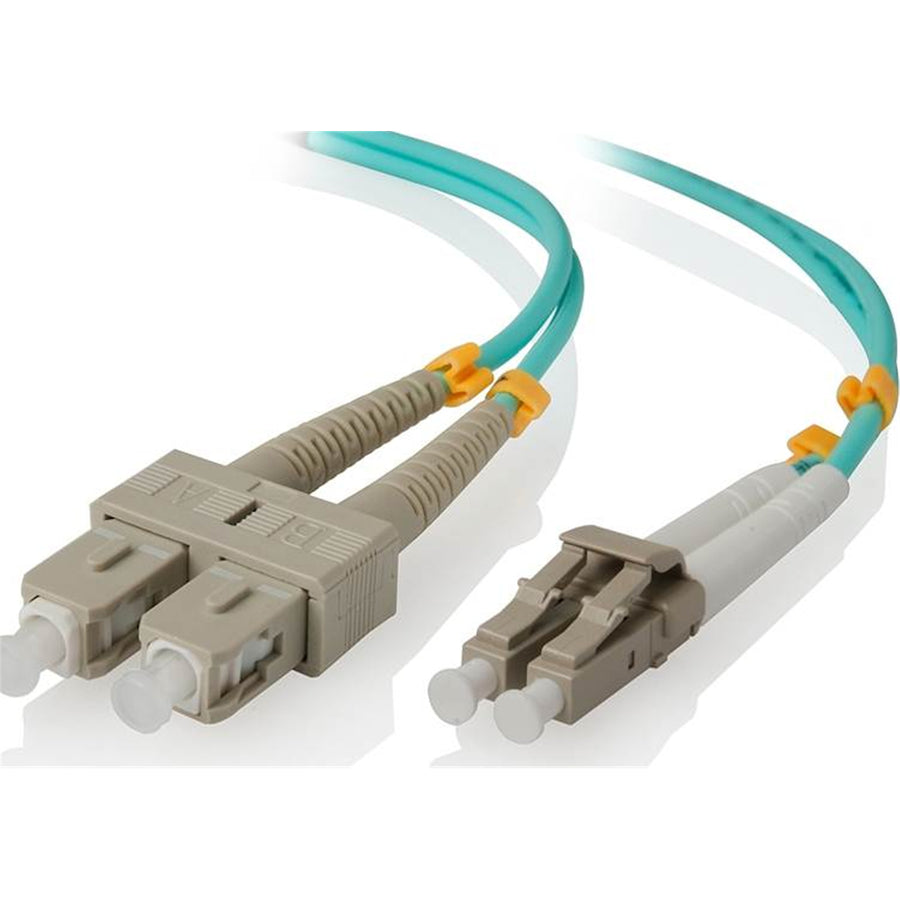

ALOGIC LCSC-03-OM3 - 3M LC-SC 10G FIBRE CABLE 50/125

SKU: LCSC-03-OM3 ● In Stock

$16.00

Free shipping over $299 Genuine product 7-day returns

ALOGIC LCSC-03-OM3 - 3M LC-SC 10G FIBRE CABLE 50/125

Features

The Multi Mode OM3 cables are designed to support high transfer speed, the cables are capable of supporting up to 10 gigabit applications at the same time being backward compatible with 50/125 OM2 infrastructure.

The cables meet or exceed industry standard specifications; each cable is individually tested for maximum reliability and comes with performance reports.

The ALOGIC OM3 Patch Cables are available in various lengths starting from 0.5m to 30m length.

- Multi Mode OM3 fibre optic cable.
- Available in various lengths starting from 0.5m to 30m length.
- Low Smoke Zero Halogen Jacket for minimal toxic emissions in case of fire
- 100% optically tested and provided with test reports.

Specifications

Technical Specifications

Connector Type	LC, SC
Wavelengths	50 µm (OM3)/125 µm
Attenuation	At 850 nm: <2.3 dB per kmAt 1300 nm: <0.6 dB per km
Insertion Loss	<0.2 dB per 300 m @ 850 nm or 1300 nm
Fiber	Glass
Number of Fibers	2
Jacket	LSZH (Low Smoke Zero Halogen)
Cable Outer Diameter	2mm +/-0.2mm
