AM319-HCHO-915M - Milesight LoRaWAN 9 in 1 Indoor Ambience Monitoring LoRaWAN IoT Sensor (HCHO Version)
AM319-HCHO-915M - Milesight LoRaWAN 9 in 1 Indoor Ambience Monitoring LoRaWAN IoT Sensor (HCHO Version)
Features

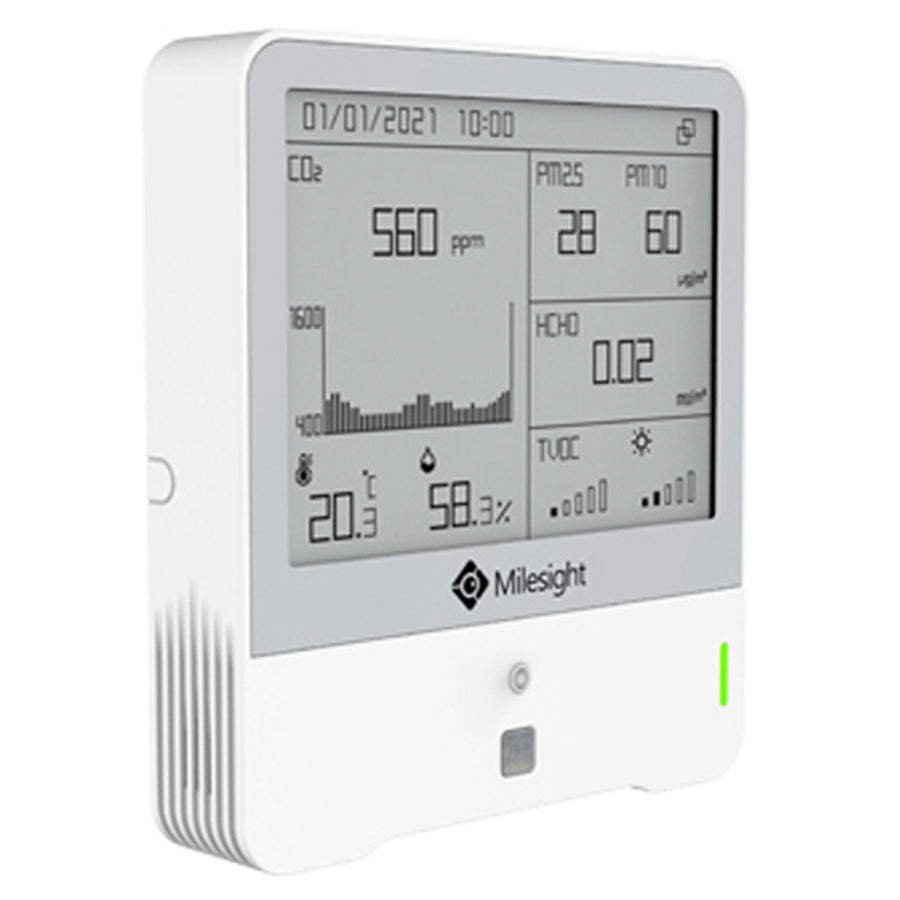

The Milesight AM319 is a compact indoor ambience monitoring IoT sensor for measurement of temperature, humidity, light, CO2 concentration, HCHO level, TVOC, barometric pressure, PM2.5, PM10 and motion. The data will be shown on the E-ink screen in real-time, which helps to measure the indoor environment and comfort. AM300 series is widely used for business offices, stores, classrooms, hospitals, homes, etc.
- Integrated with multiple sensors: humidity, temperature, CO2, light, barometric pressure, PM2.5, PM10, etc.
- Multiple display modes and clear emoticon to easily understand the comfort levels via screen
- Equipped with traffic LED and buzzer to indicate device status and threshold alarms
- Support more than 20,000 data records store locally
- Compliant with standard LoRaWAN IoT gateways and network servers
- Perfect device for Environmental Monitoring for Business, Education and Homes
Specifications
Technical Specifications
| Model | AM319-HCHO-915M |
|---|---|
| Frequency | AU915 or AS923 |
| Tx Power | 22dBm |
| Sensitivity | -137dBm @300bps |
| Work Mode | Class C |
| Temperature Range | -40°C - 85°C |
| Accuracy | ± 1°C |
| Resolution | 0.1°C |
| Humidity Range | 0% - 100% RH |
| Accuracy | ± 3% |
| Resolution | 0.5% RH |
| PIR Detection Area | 80 ° Horizontal, 55 ° Vertical |
| Detection Range | 5 m |
| Status | Vacant/Occupied |
| Light Range | 0-60000 Lux (display as 6 levels, 0-5) |
| TVOC Range | 0-500 (IAQ Index) |
| Accuracy | ±15 % |
| Barometric Pressure Range | 300 - 1100 hPa (-40°C - 85°C) |
| Accuracy | ±0.6 hPa |
| Resolution | 0.1 hPa |
| Carbon Dioxide (CO2) Range | 400 - 2000 ppm |
| Accuracy | ±50 ppm or ±5 % of reading |
| Resolution | 1 ppm |
| PM2.5 & PM10 Range | 0 - 1000 µg/m³ |
| Accuracy | 0-100(±10µg/m³), 100-1000(±10 %) |
| Resolution | 1 µg/m³ |
| Formaldehyde (HCHO) | Range - 0 - 6 mg/m³ |
| Accuracy | ±10 % |
| Resolution | 0.01 mg/m³ |
| Display | 4.2-inch Black & White E-Ink Screen |
| Buttons | 1 × Power Button + 1 × Reset Button |
| LED & Buzzer | 1 × Traffic Light Status Indicator + 1 × Buzzer |
| Power Supply | 5V/1A by Type-C Port |
| Operating Temperature | -20°C - 60°C (E-Ink Screen: 0°C - 40°C) |
| Relative Humidity | 10% - 90% (non-condensing) |
| Ingress Protection | IP30 |
| Dimension | 100.8 × 114 × 22 mm |
| Installation | Wall Mounting |
| Package Contents | QSG, power adaptor, USB cable, Mounting bracket, Mounting screws |
