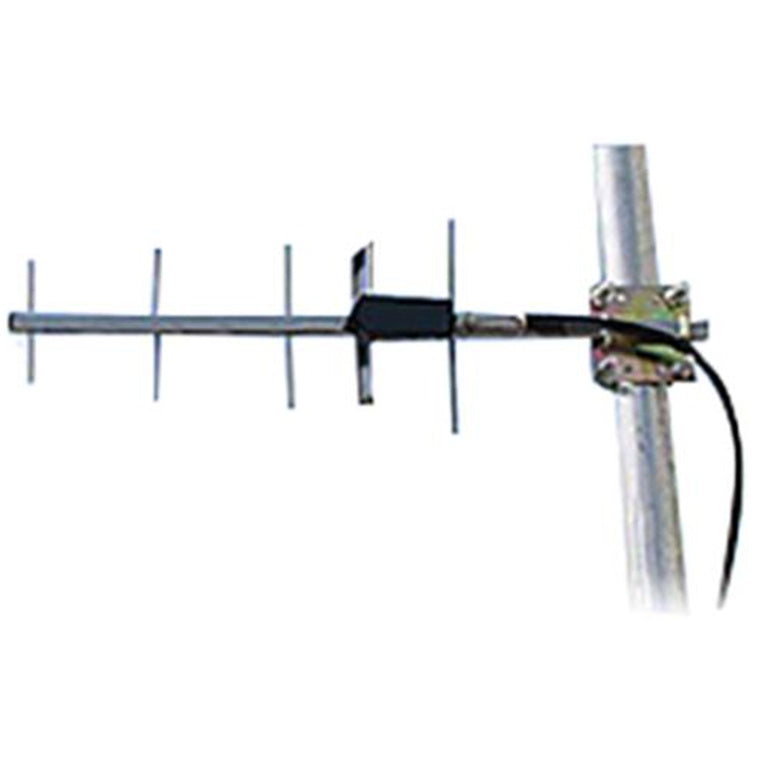

ANT-54 - 9dBi 860-960MHz Stainless Steel Yagi Antenna
$67.06
Free shipping over $299
Genuine product
7-day returns
ANT-54 - 9dBi 860-960MHz Stainless Steel Yagi Antenna
Features
The HyperGain HG909Y High-Performance Yagi Antennas combines high gain with a wide beam-width. They are ideally suited for directional applications in the 900MHz ISM and GSM bands. Typical applications include 900MHz Wireless LAN, SCADA, Wireless Video Links, 900 MHz Cellular, Non Line of Sight (NLOS) applications and point to multi-point systems. These antennas comes with a 45cm coax lead terminated with an N-Female connector. It can be installed for either vertical or horizontal polarisation. Great for use with the Ubiquiti XR9 Mini PCI cards.
Specifications
Technical Specifications
| Frequency Range | 890-960MHz |
|---|---|
| Gain | 9dBi |
| Polarisation | Horizontal or Vertical |
| Vertical Beamwidth | 48deg |
| Horizontal Beamwidth | 54deg |
| Connector | Type N-Type Female |
| Dimensions | 500mm |
| Pole Mount Diameter | 32-50mm |
