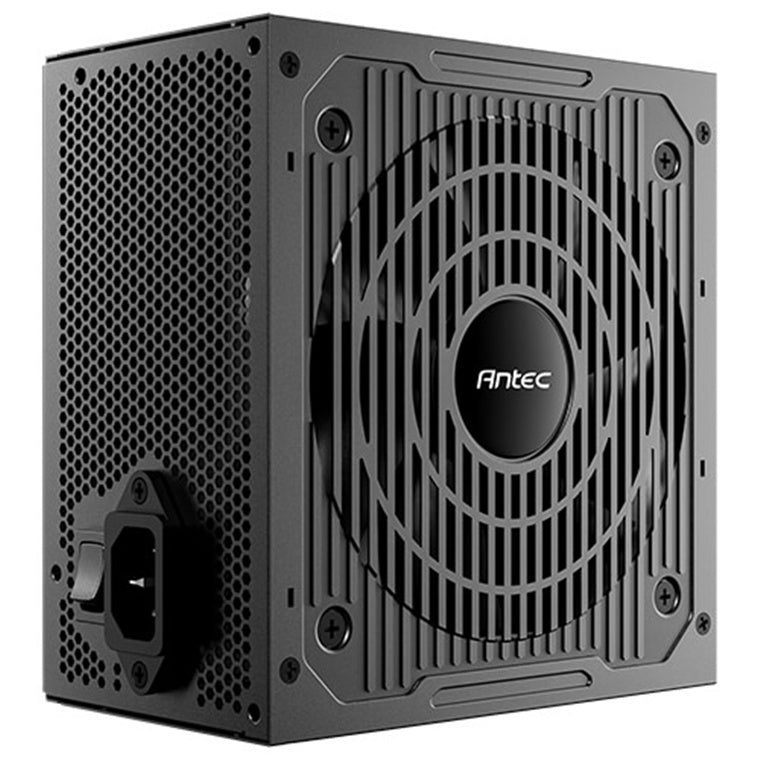

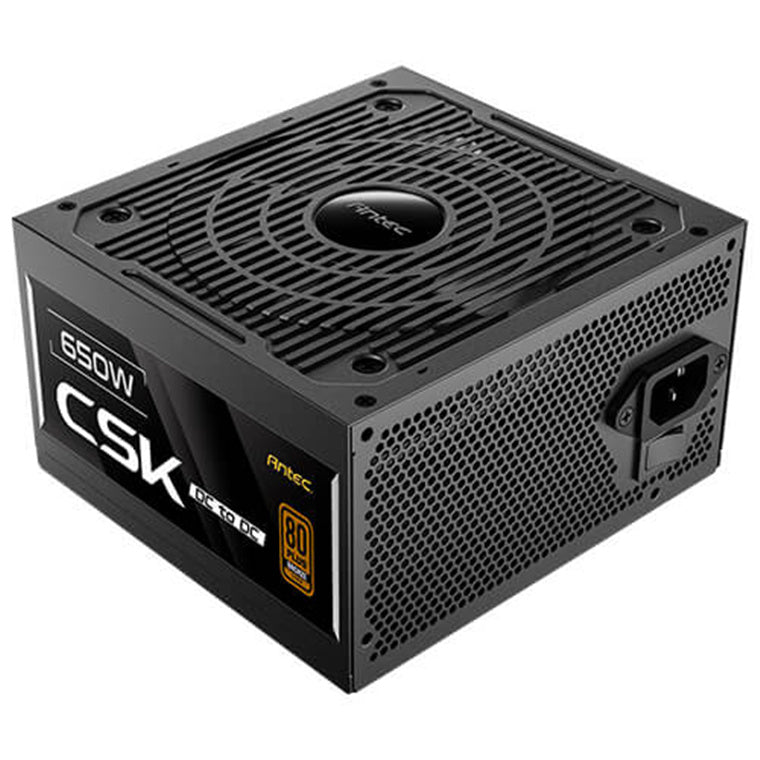

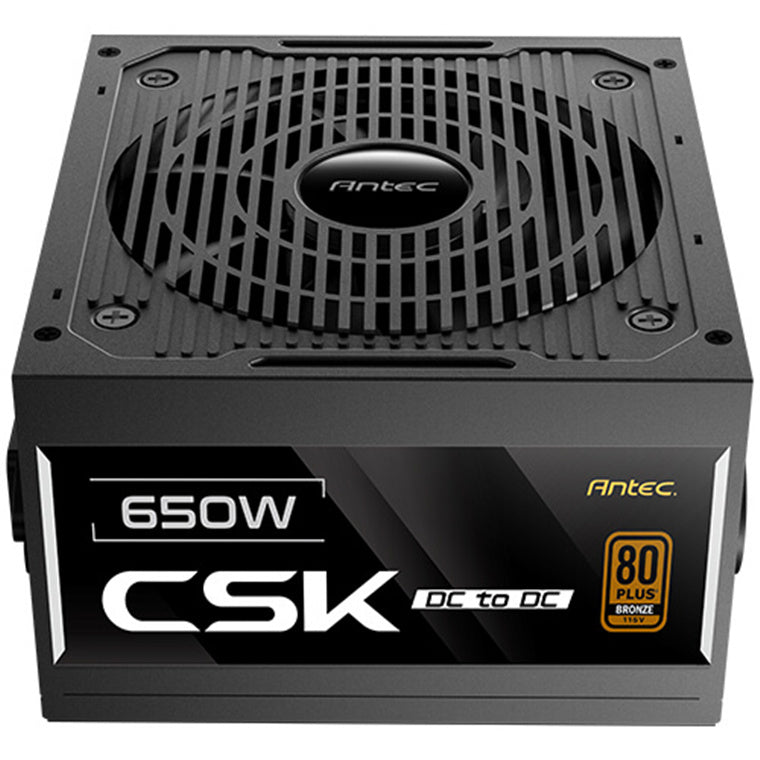

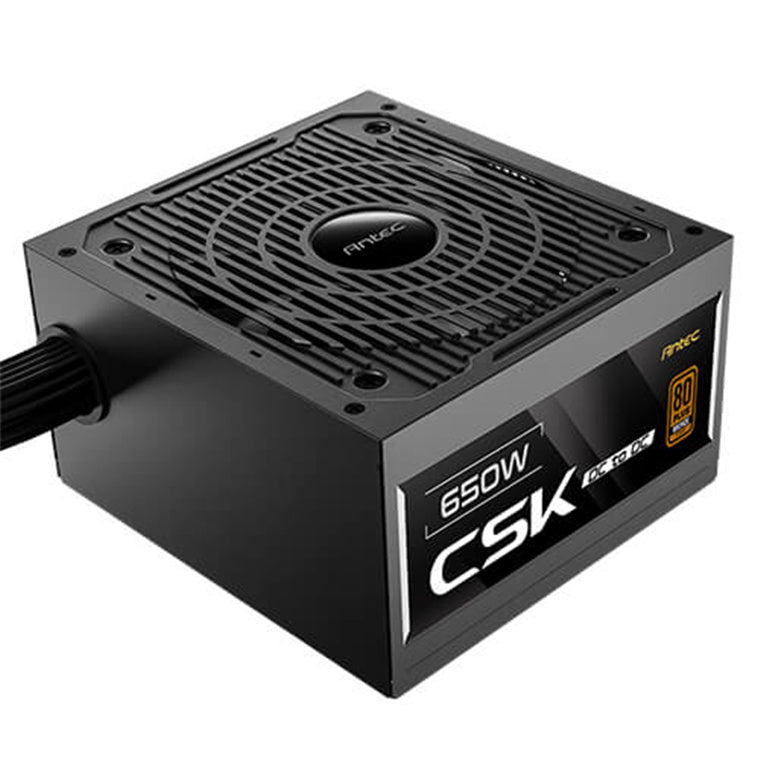

Antec CSK650DC AU 80plus Bronze 5yr Warranty PSU
Features
Antec's new generation CSK DC to DC power supply is crafted for quality, efficiency, and performance. Featuring DC-to-DC architecture, 80 PLUS® BRONZE certification, and quiet 120mm fans. The CircuitShield™ suite of industrial -grade protections ensure that the power delivered to your system is safe and reliable in any environment.
80 Plus® Bronze Certified: Delivering up to 88% efficiency, CSK650 DC to DC utilizes active PFC and gives you a cooler and quieter system, all powered by Continuous Power.
CircuitShield™: The full suite of industrial-grade protections includes OCP, OVP, UVP, SCP, OPP, OTP, SIP, and NLO, ensuring the safety and reliability of your power supply in any situation.

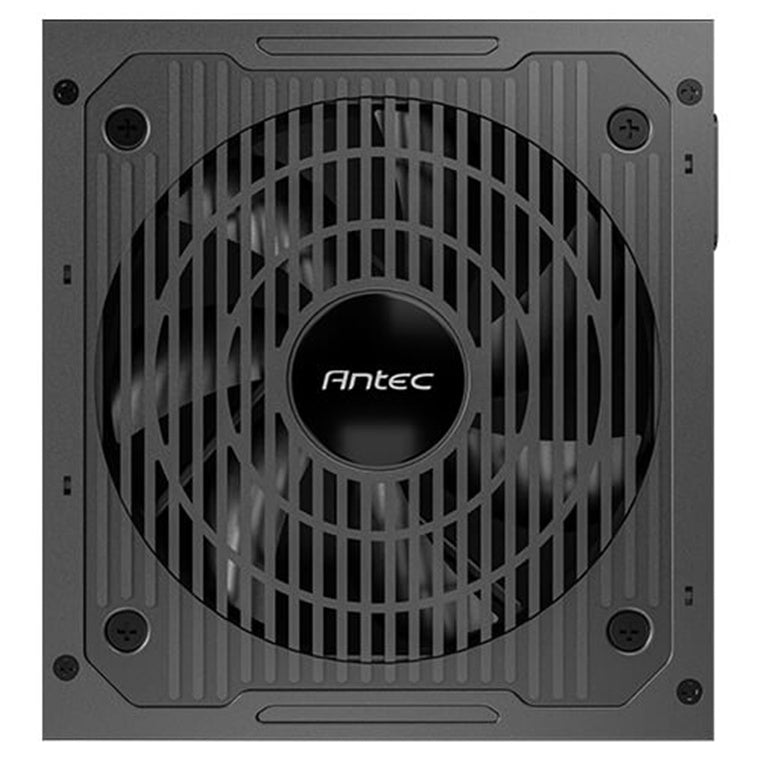

120mm Silent Fan: The whisper-quiet 120mm fan provides high airflow with the durability and longevity that is a Antec signature.
Thermal Manager: Thermal Manager, an advanced low voltage fan control for optimal heat & noise management, allows your PSU to stay at the optimal temperature.
Compact Size: Compared to large power supplies on the market, it is smaller in size and can be used with a wider range of computer cases.
Specifications
Technical Specifications
| Model | CSK650DC |
|---|---|
| Safe Model | X5000A535XC-24 |
| Type | ATX 12V 2.52 |
| Dimensions | 140mm (L) x 150mm (W) x 86mm (H) |
| Modular | Non-Modular |
| Input Voltage | 100V-240V |
| Input Current | 12A Max |
| Input Frequency Range | 50Hz-60Hz |
| PFC | Active PFC |
| Power Good Signal | 100-500ms |
| Protection | OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO |
| Output Capacity | 650W |
| Operation Temperature | 0~40°C |
| Regulatory | cTUVus / TUV / CB / RCM / CE / FCC / BSMI / KC / UKCA / ICES/BIS |
| Fan | 120mm Silent Fan |
| Certifications | 80 Plus Bronze |
| Connector | 1 x 24(20+4)pin MB2 x 8(4+4)pin CPU2 x 8(6+2)pin PCI-E6 x SATA3 x Molex |
| Unit Box Dimensions | 255mm (L) x 195mm(W) x 100mm(H) |
| Net Weight | 1.70KG |
| Gross Weight | 1.90KG |
| Brand | Antec |
|---|---|
| Product Type | PC Parts > Power Supplies / PSUs |
| Weight | 0.5 kg |
