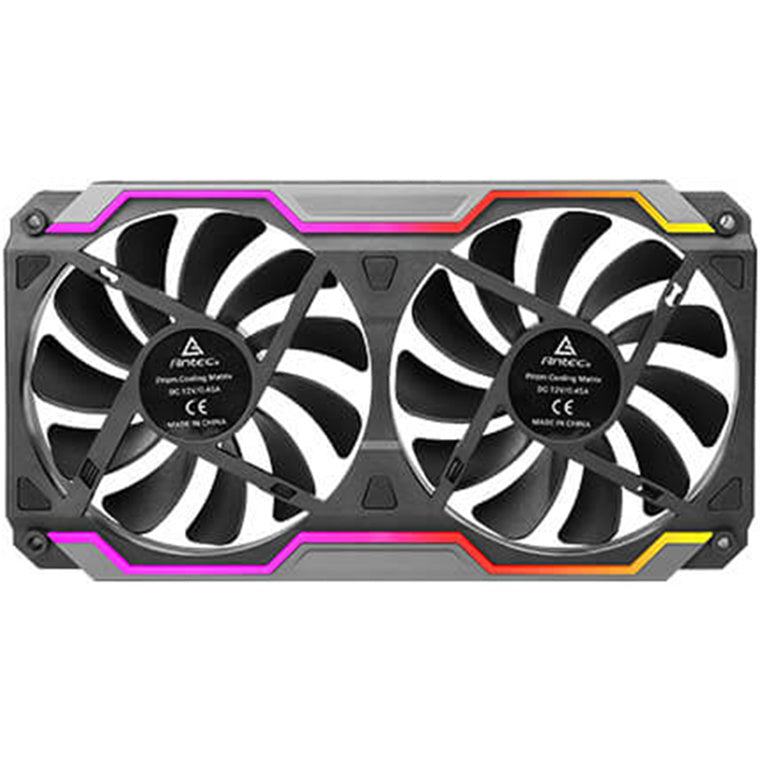

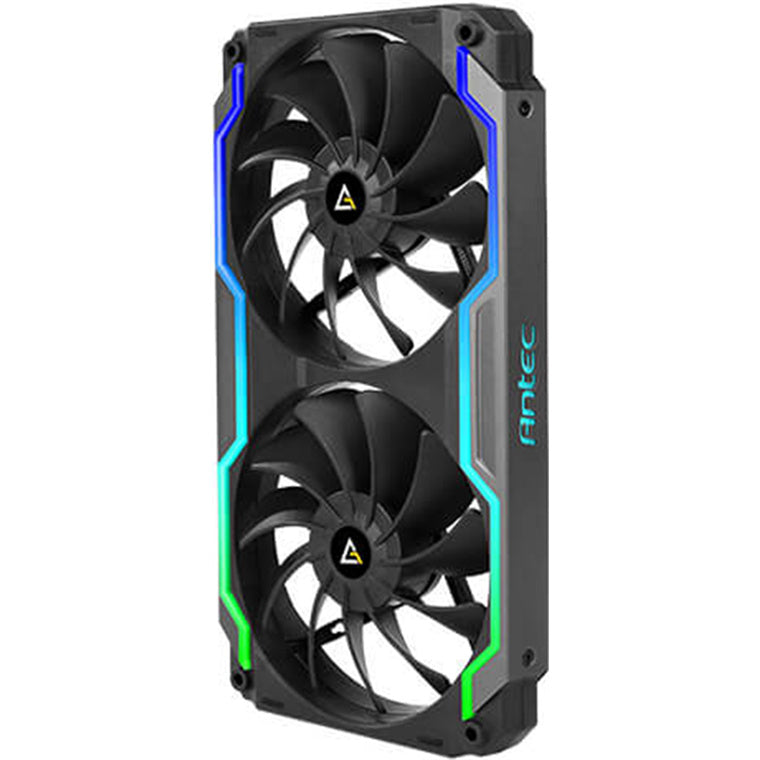

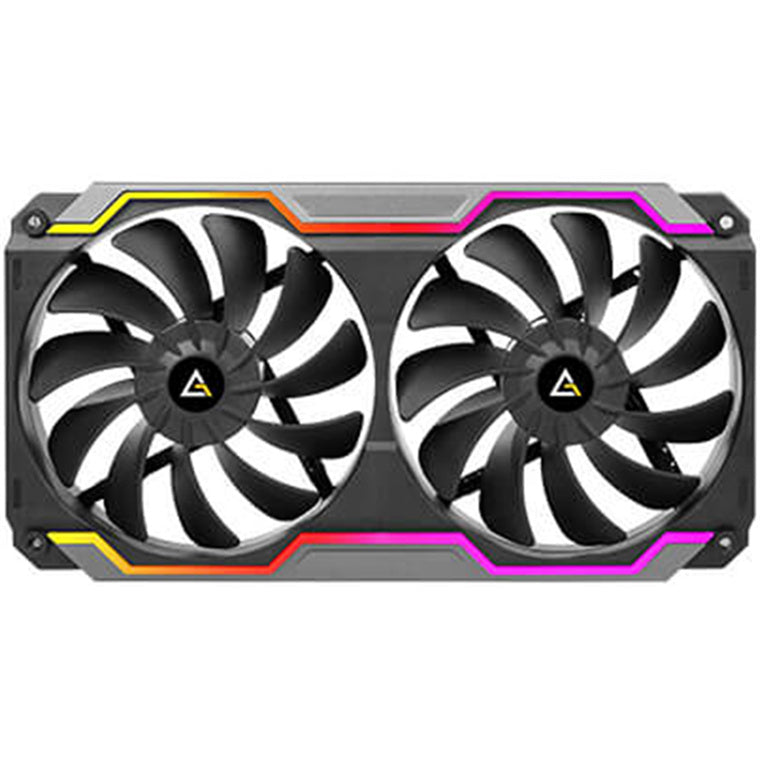

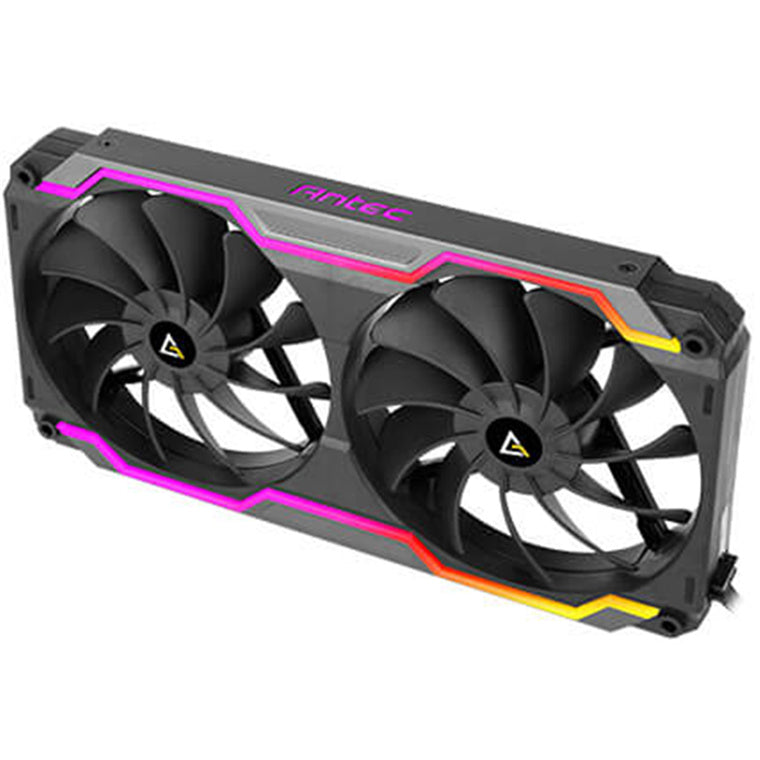

Antec Prizm Cooling Matrix
Features
Unique Design - It's Unparalleled!
Prizm Cooling Matrix is the first of its kind in the performance PC market. Unlike conventional case fans, Prizm Cooling Matrix is a completely innovative, single bracket dual-fan housing assembly with two 120 mm fans connected simultaneously.
Streamlined ARGB Strip Styling
Prizm Cooling Matrix featuring with unique ARGB strips on both upper and lower sides creates an extraordinary light effect, which will make your gaming case become the most eye-catching one.
ARGB Logos and Aluminum Alloy Sides
Two Antec logos are embedded, and one of them is upside-down.
No matter how you put it in the case, you can always see a clear and glowing Antec logo.
FDB Technology
Fluid Dynamic Bearing fan brings the silent, durable and stable operation to the next level.

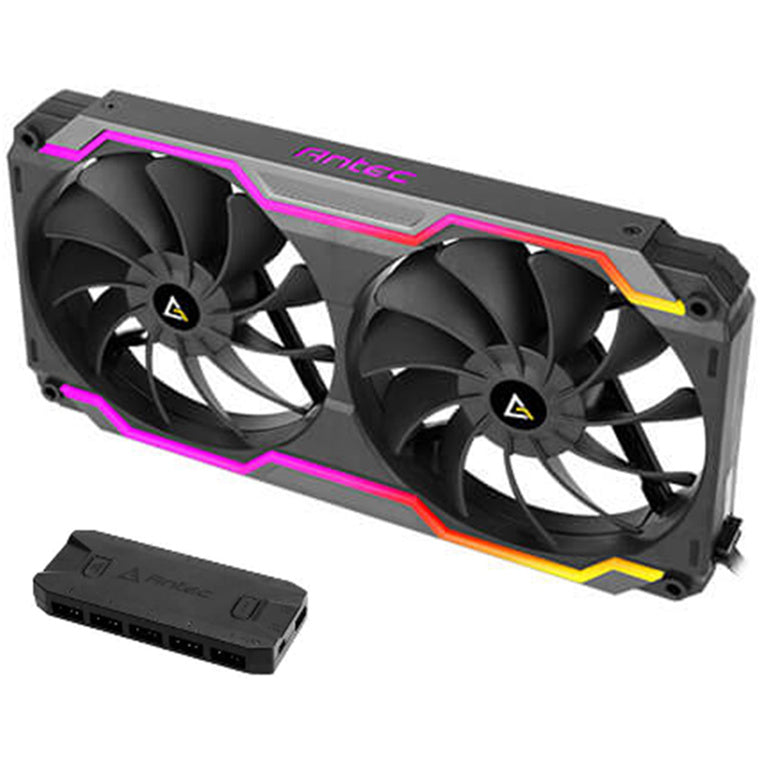

ARGB Control Fan Box
Up to 16.8 million colors and coordinate your own custom schemes for endless variety.
168,000 Colors Without Any Limitation
You can also sync the fan box with the motherboard. Enjoy possible 168,000 colors without any limitation.
240 mm Radiator Compatibility - Double Cooling Icewind
Storm-Like Airflow
Specifications
Technical Specifications
| Model Name | Prizm Cooling Matrix |
|---|---|
| Fan Type | PWM Fan |
| Dimensions (mm) | 240 x 130 x 26mm |
| Bearing Type | Hydraulic |
| LED Type | ARGB |
| Fan Speed (RPM) | 500 min./1000/1800 max. |
| Airflow (CFM) | 21.7 min./43.53/77.2 max. |
| Air Pressure (mmH2O) | 0.15 min./0.6/1.83 max. |
| Fan Noise Level (dBA) | under 15.6/18.1/32.9 max. |
| Lifespan | 45000 hours |
| Connector | Fan: 4 pin ; ARGB: 3 pin |
| Rated Voltage | FAN: DC12V ; LED: DC5V |
| Operating Voltage | FAN: DC7~13.8V; LED: DC4.5-5.3V |
| Rated Current (A) | FAN: 0.45A ; LED: 0.55A |
| Fan Control Box | ARGB port x 5, PWM fan port x 5, SATA, Mode, External LED CTRL, M/B Sync, LED Speed |
| Net Weight | 0.35 Kgs |
| Gross Weight | 0.6 Kgs |
| Package Size | 295 x 170 x 75 mm (DWH) |
| Brand | Antec |
|---|---|
| Product Type | PC Parts > Cooling |
| Weight | 0.5 kg |
