Arco
ARC-4CHDVB-THD - ARCO-4CH DVB-T Modulator With RF Out
$2,476.33
Free shipping over $299
Genuine product
7-day returns

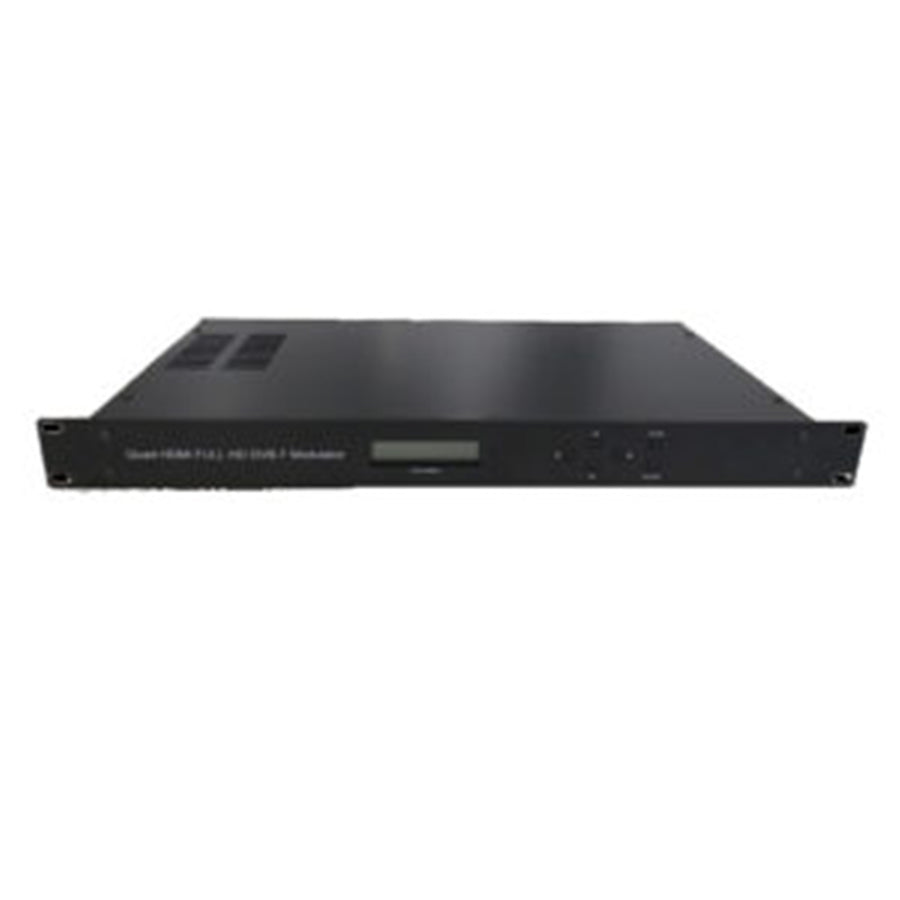

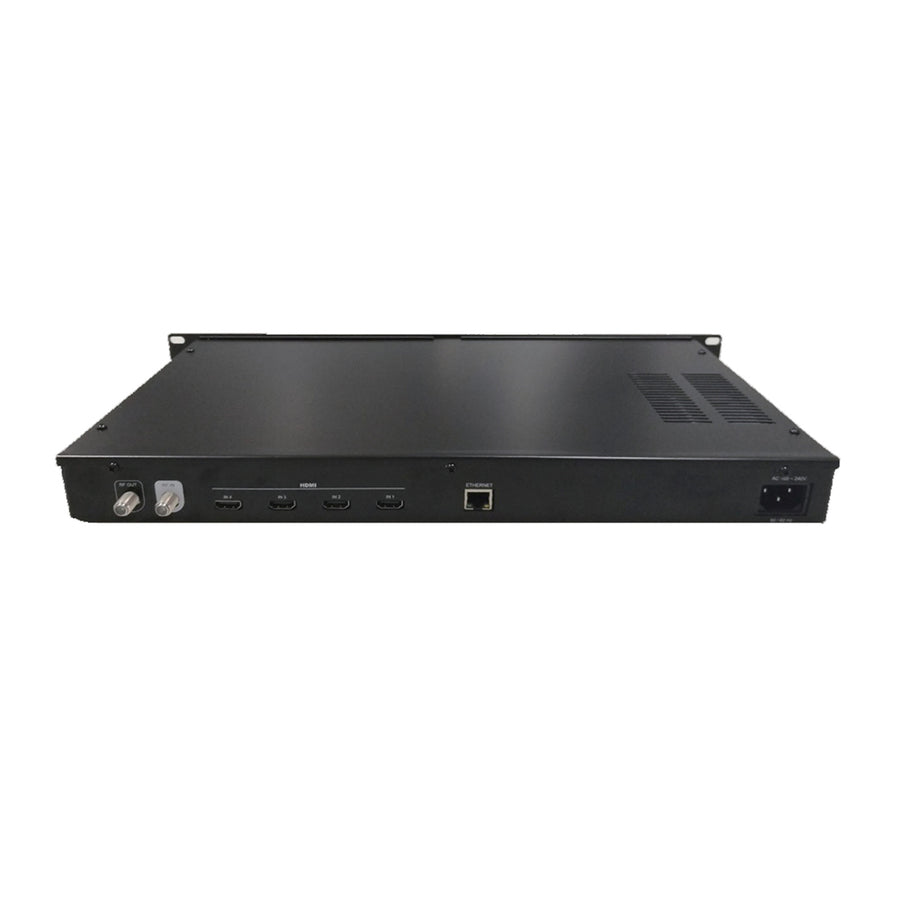

ARC-4CHDVB-THD - ARCO-4CH DVB-T Modulator With RF Out
Features
4 Channel DVB-T Modulator ( ARC-4CHDVB-THD) - ARCO
This 4 Channel DVB-T Modulator provides quad HDMI to DVB-T RF system. It is designed for digital broadcasting standard in DVB-T HD. The modulator functions, channel and RF settings can be configured through the LCD front panel display or by LAN connection through a standard browser. With the 4 HDMI inputs and H.264 AVC encoding, GTM-8608Q is very suitable for MDU or local TV broadcasting usage.
Specifications
Technical Specifications
| Video | HDMI 1.4 |
|---|---|
| Video System | 480i/p, 576i/p, 720p,1080i/p |
| Audio | HDMI |
| Type | 1 Multiplex DVB-T with a digital TV service |
| Frequency | 177 ~ 858 MHz |
| MER | 30dB Min. |
| Standard | DVBT (ETSI EN 300 744) |
| Constellation | QPSK |
| Guard Interval | 1/4, 1 |
| Code Rate | 1/2, 2/3, 3/4, |
| FFT Carrier Mode | 2K, 8K |
| Bandwidth | 7MHz, 8MHz |
π 7-Day Returns Policy
Not happy? Return within 7 days of delivery for a full refund or exchange. Items must be unused and in original packaging. Contact contact@kwtech.co.nz to arrange.
| Brand | Arco |
|---|---|
| Product Type | TV & Home Theatre > AV Extenders |
| Weight | 0.5 kg |
Shipping Information
- Free NZ-wide shipping on orders over $299
- Standard delivery 2β5 business days
- Rural delivery may take an additional 1β2 days
- Same-day dispatch for orders placed before 2pm (weekdays)
Returns Policy
- 7-day returns on unused items in original packaging
- Faulty or damaged products covered under warranty
- Contact our support team to initiate a return
You May Also Like
EARTHQUAKE SOUND

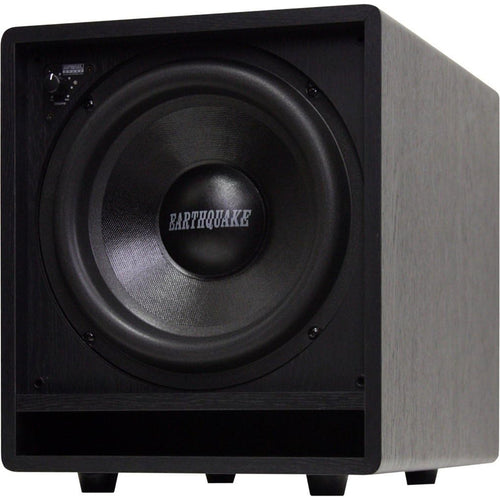

EARTHQUAKE SOUND FF-6.5 - EQS-Front Firing 6.5" Powered Subwoofer, 150W built in Amp
