Features

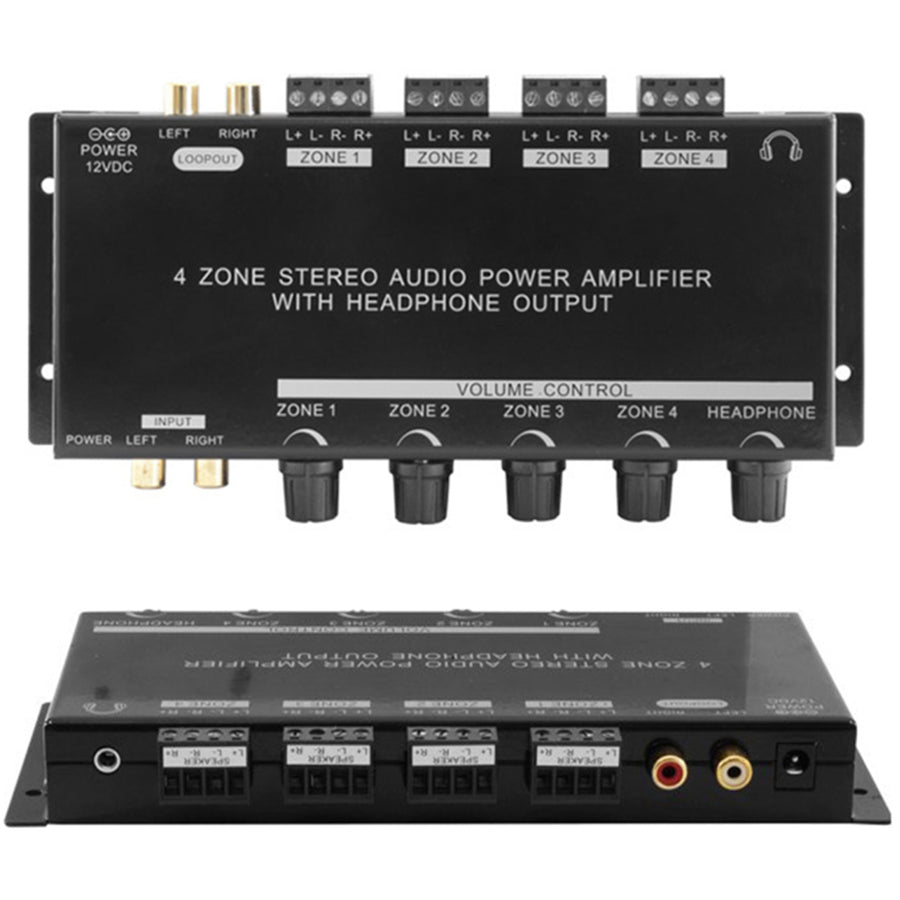

Stereo Audio Power Amplifier 4 Zone 1 Source ( ARC-1300 ) - Arco

This Stereo Audio Power Amplifier is Small size and compact. With a single RCA input, and the ability to adjust each zone's volume independently, the 1 x 4 Audio Power Amplifier is a quick and easy way of adding audio in up to four rooms.

- One-in, Four-out with Headphone Amp.
- Large detachable terminal block(supplied) for quick and easy installation in a structured-wiring cabinet.
- Also suitable for wall-mounting.
- Screw terminals handle wire sizes from 24 to 12 gauge. Large detachable terminal block (supplied) for quick and easy installation
- Screw terminals handle wire sizes from 24 to 12 gauge

Specifications

Technical Specifications

Amplifier Type Stereo Class-D
Output power 15W(RMS) per channel (@ RL=4 ohm)
THD+N 0.06 % (@ RL=8 ohm, f = 1 kHz)
Minimum Load Resistance 4 ohm
Includes Speaker Protection circuit Yes
Output power 105mW(RMS) per channel
THD+N 0.05 % (@ RL=16 ohm, f = 1 kHz)
Minimum Load Resistance 16 ohm
Power Consumed 9A Max
Power Source DC 12 Volts
Size (L x W x H) 285mm x 128mm x 43mm
Net Weight (Unit only) 0.8 Kg
