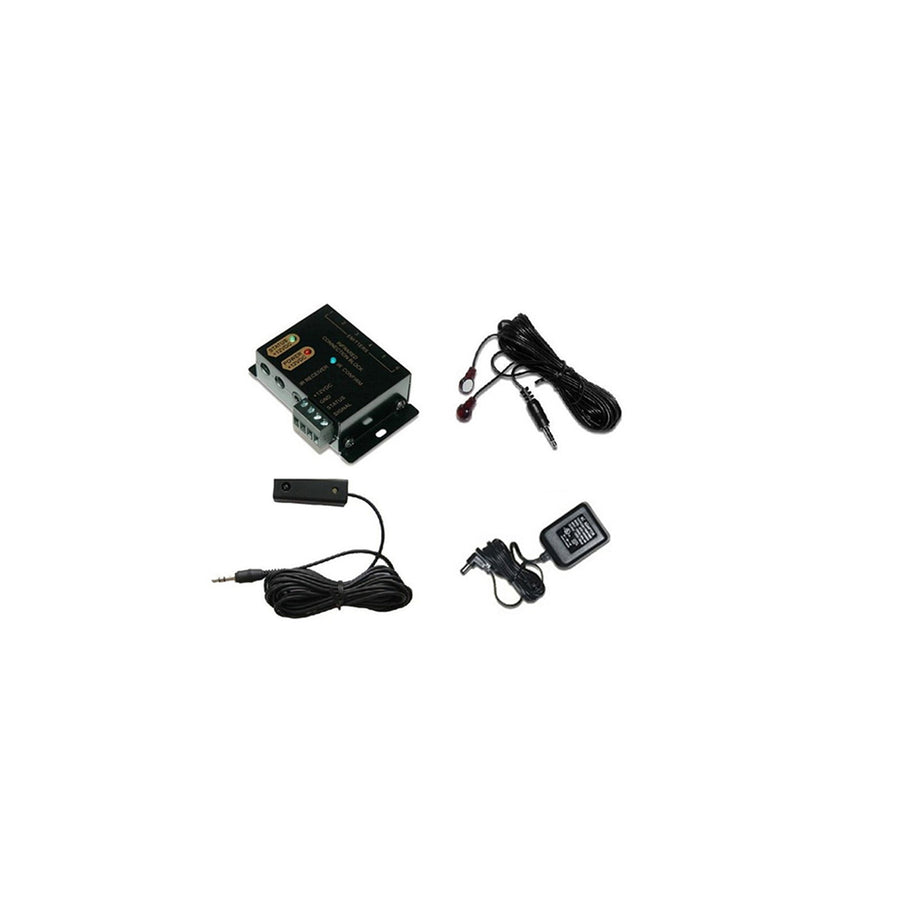

ARC-1204A - ARCO-Standard IR Repeater Kit
You May Also Like
StarTech.com HDBOOST4K2 HDMI - 4K60 - USB Power Signal Booster
Features
IR Repeater Kit

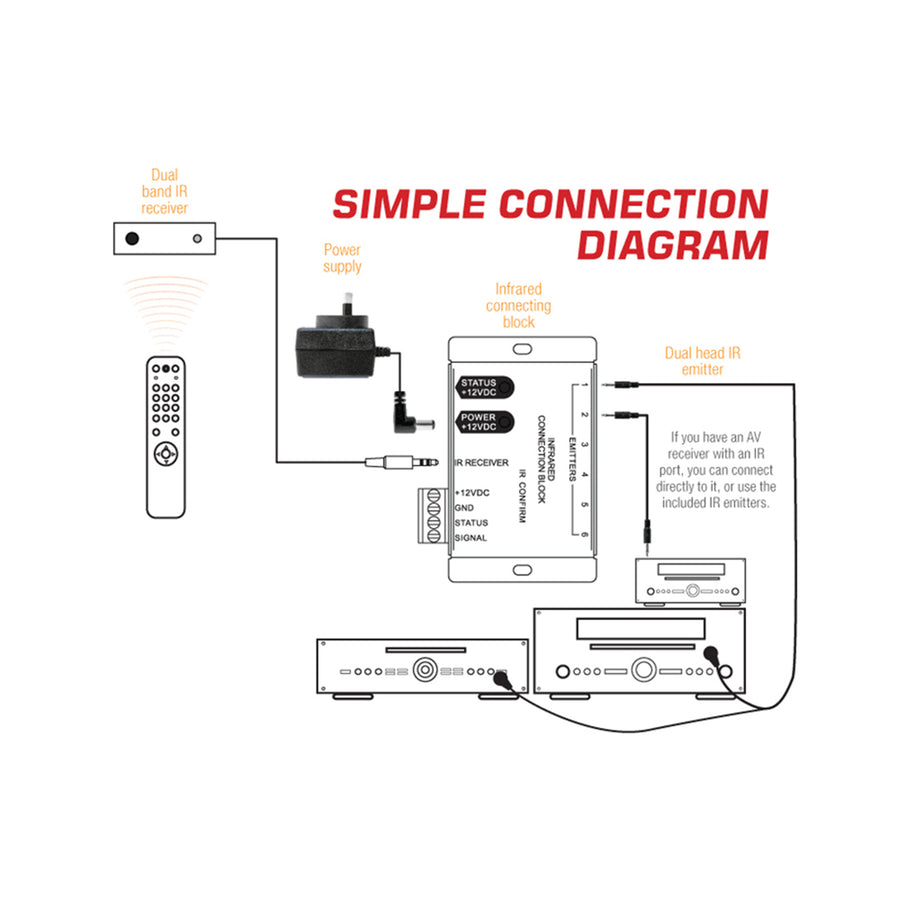

Arco ARC-1204A takes Infrared (IR) light coming from your remote controller and converts it to an electrical signal that can be easily distributed over electrical wiring to one or more IR remote controllable components.
- Six emitter output connections.
- Convenient IR confirmation LED.
- Status power receptacle with LED indicator.
- Power receptacle with LED indicator.

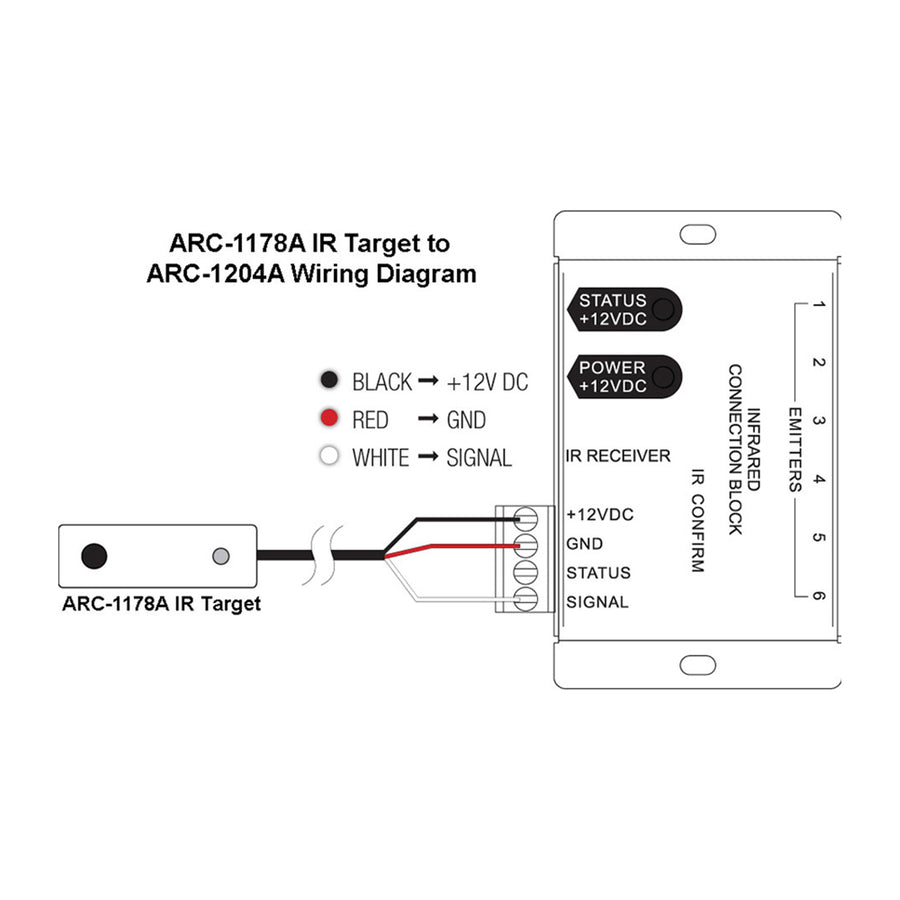

- Three conductor 1/8" receptacle for interfacing with many brands of freestanding IR receivers.
- Six emitter output connections
- Convenient IR confirmation LED
- Status power receptacle with LED indicator
- 3 conductor 1/8'' receptacle for interfacing with many brands of free standing IR receivers
- Compact size for mounting near audio equipment
Specifications
Technical Specifications
| Dimensions | 82 (W) x 60 (H) x 27 (D) mm |
|---|---|
| Weight | 110 g |
| Receive Frequency Range | 34 kHz ~ 60 kHz |
| Transmit Frequencies | 38 kHz ~ 56 kHz |
| Range | 12 meters @ 38 kHz, 7.6 meters @ 56kHz |
| Power | 12V DC 30mA max. |
| Cord Length | 3 meters |
| Connector Type | 3.5mm TRS mini plug |
| Power Supply | 12 V 200 mA |
| Brand | Arco |
|---|---|
| Product Type | TV & Home Theatre > AV Extenders & Transmitters |
| Weight | 0.5 kg |
| Warranty |
|---|
